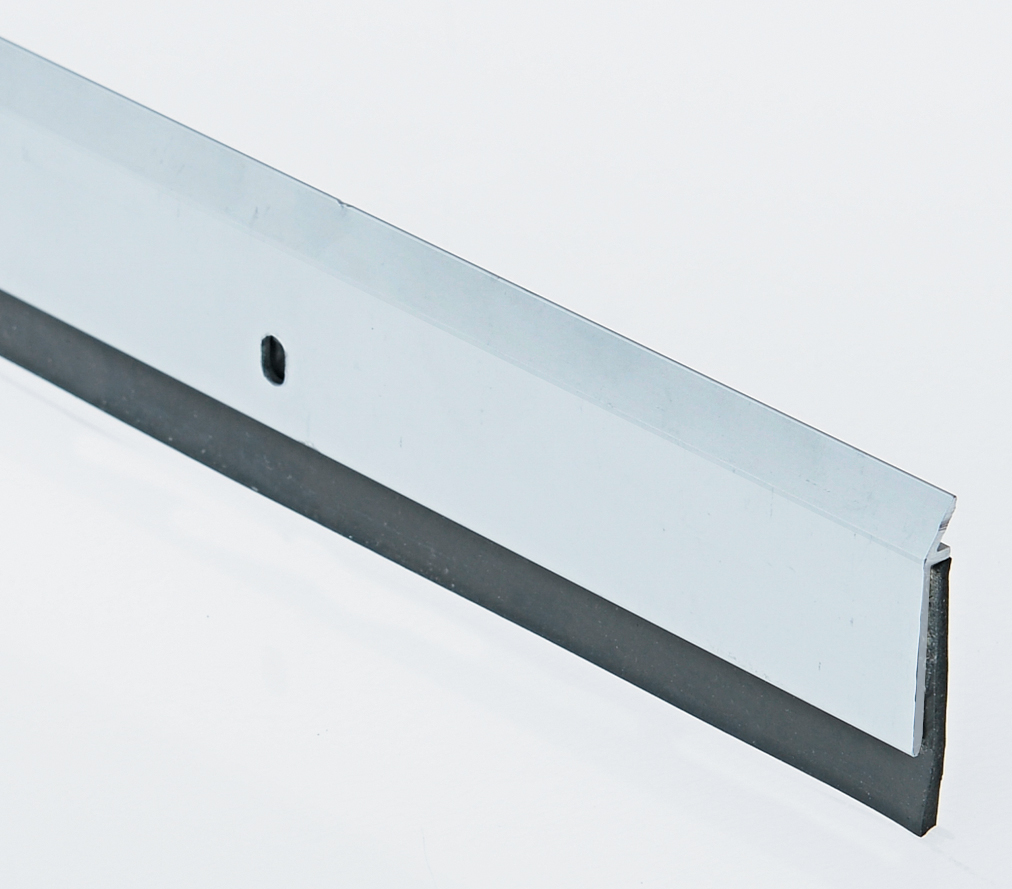

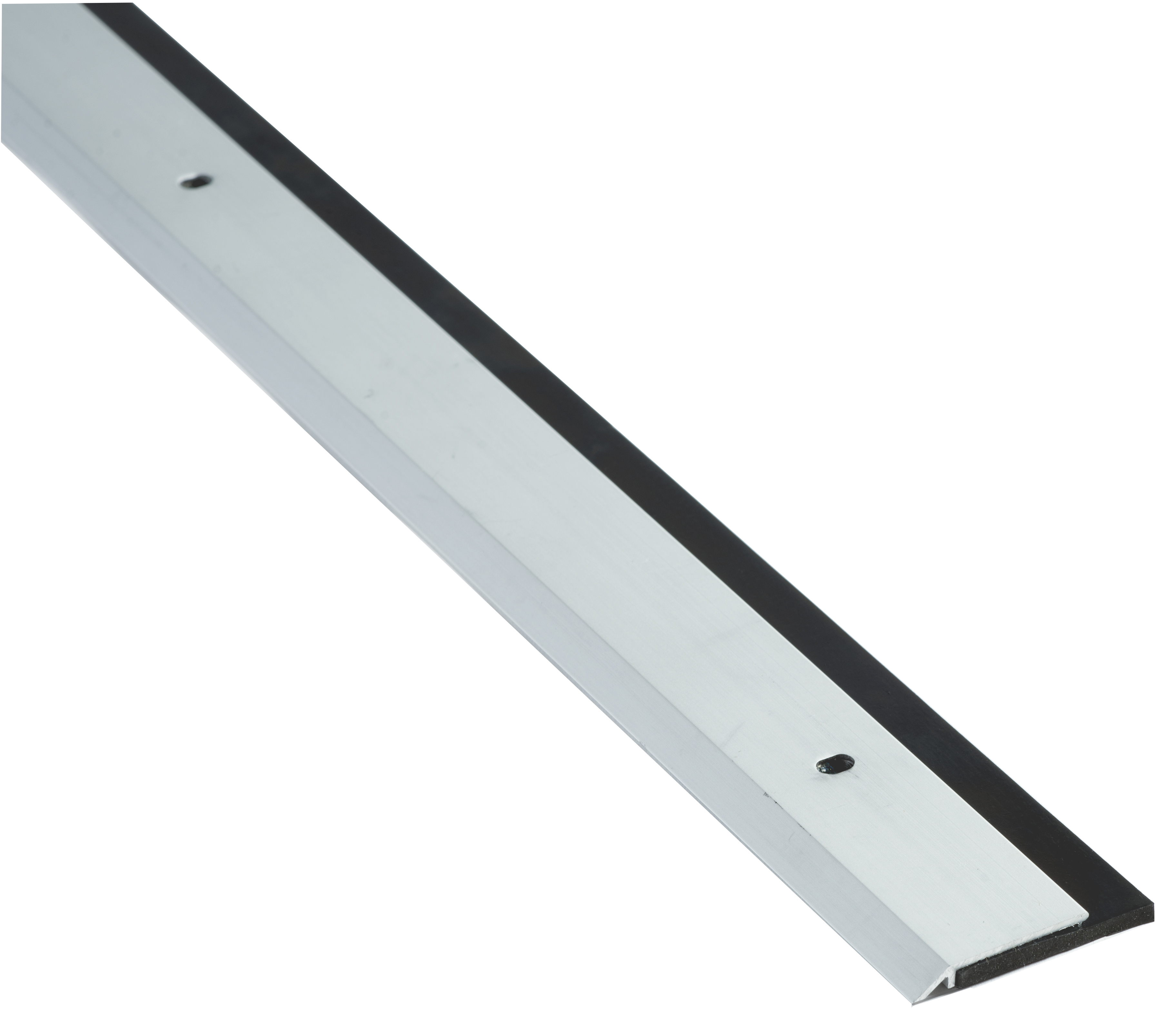

National Guard NGP 200NA36 36" (3') Black Neoprene Door Sweep offers an effective solution for enhanced weatherization in commercial and residential spaces. Crafted with a durable anodized aluminum finish, this door sweep seamlessly combines functionality with aesthetic appeal. The 36" flange, made from robust aluminum, is designed for easy installation while providing a reliable barrier against drafts, dust, and moisture. Featuring a black neoprene insert, measuring 36" x 7/16", this product effectively seals gaps beneath doors, ensuring optimal insulation and energy efficiency. The insert type is a sweep, which is particularly effective in reducing air infiltration and preventing unwanted elements from entering your space. With a flange width of 1-1/4", the NGP 200NA36 provides ample coverage, enhancing its protective capabilities. This door sweep is backed by a limited 5-year warranty, giving you peace of mind regarding its durability and performance. As a non-hazardous material, it is safe for use in various environments. Whether you're a building professional or a knowledgeable homeowner, the National Guard NGP 200NA36 is a reliable choice for effective weatherstripping that enhances comfort and energy efficiency in any setting.
Attributes
Ship via: Can Ship UPS
Application: CM
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Category: Weatherization
Clazz: NG
Color: Color is Black
Country of Origin: Usa
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Finish Code: A
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Flame-Resistant
Flange Length: 36"
Flange Material: Aluminum

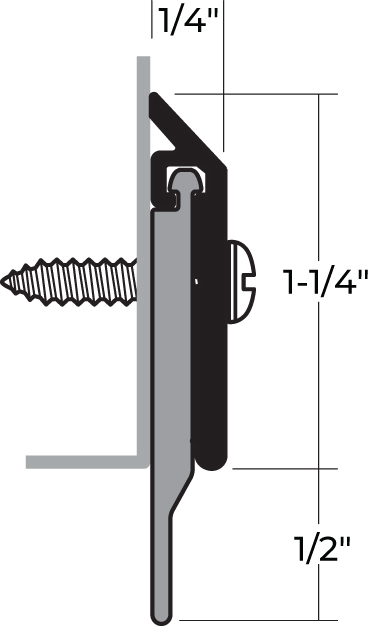

Flange Width: 1-1/4"
Hazardous Material: NO
Insert Color: Black
Insert Material: Neoprene
Insert Size: 36" x 7/16"
Insert Type: Sweep
Item Class Description: 36" Black Neoprene Door Sweep
Item Type Keyword: Sweep
Length: 36.0"
Limited Warranty: Limited 5 Year Warranty
Manufacturer Warranty: Limited 5 Year Warranty
Material: Aluminum and Neoprene
Moisture Resistant: YES
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-11-12
Product Dimension: 36" x 1-5/8"
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subcategory: Weatherstripping
Subtype: Weatherstripping
Temperature Range: Temperature Range -81°F to 275°F
Type: Weatherization
