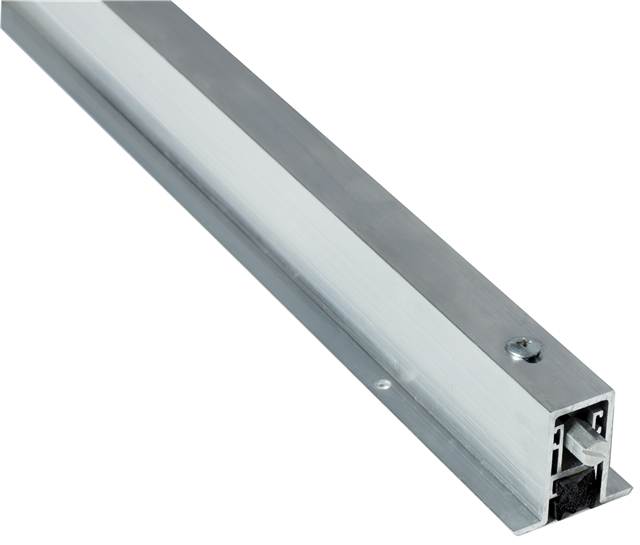

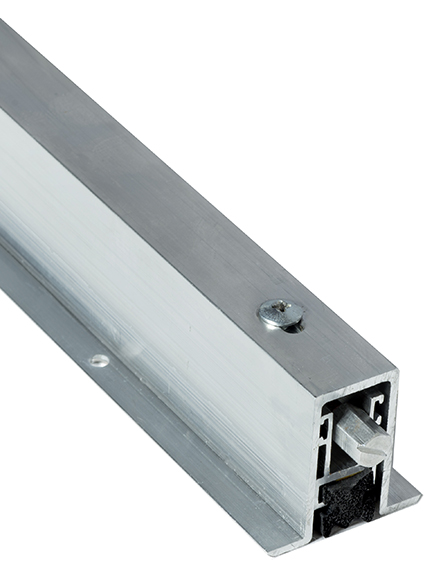

NGP 423N36 36" Neoprene Heavy Duty Mortise Automatic Door Bottom, Mill Aluminum FinishNational Guard NGP 423N36 36" (3') Neoprene Heavy Duty Mortise Automatic Door Bottom in Mill Aluminum Finish is designed to provide exceptional weatherization and durability for commercial applications. Crafted from a synthetic rubber polymer blend that includes PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam, this automatic door bottom ensures superior abrasion resistance and tensile strength. This product operates effectively across a wide temperature range of -20°F to 200°F, making it suitable for various environmental conditions. The neoprene insert not only offers excellent moisture resistance but is also flame resistant, ensuring safety and reliability. The 36" insert size and 3/4" thickness provide a snug fit, effectively sealing gaps to prevent drafts, dust, and moisture from entering your space. The flange is made of durable aluminum with a mill finish, featuring a length of 36", a width of 1-1/2", and a thickness of 7/8". This ensures both structural integrity and aesthetic appeal. Additionally, the National Guard NGP 423N36 comes with a limited 5-year warranty, reflecting the manufacturer's commitment to quality. Perfect for architects, contractors, and discerning homeowners, this product enhances energy efficiency while maintaining a polished look.
36" (3') Neoprene Heavy Duty Mortise Automatic Door Bottom Mill Aluminum Finish
National Guard Products is known as a leading manufacturer of weather-stripping, threshold products, lite kits, louvers and glass for commercial wood and steel doors. Founded in 1935 NGP has become an ever advancing industry innovator, manufacturing a complete line of door seals, door thresholds, gasketing, intumescent fire seals, smoke seals, sound seals, door sweeps, door shoes, automatic door bottoms, lite kits, louvers, metal edges, astragals, continuous geared hinges and finger guard products.
- BHMA certified to ANSI/BHMA A156.22, 1,000,000 cycle test-grade 1
- BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer blend: PVC, Nitrile rubber (NBR), and Chloroprene closed cell advanced elastomeric foam
- Very good abrasion resistance, tensile strength and memory
- Flame resistant
- Moisture resistant
- Temperature range -20°F to 200°F
- Good resistance to ozone, sunlight and aging
- Use with a threshold for maximum sealing capability
- Nylon brush recommended for carpet applications where no threshold is provided
- Anodized aluminum end caps furnished standard. DKB end caps available - please specify
- Specify exact net length required to avoid field sizing
- 36" and longer may be cut up to 4" in the field. Under 36" should not be cut in the field, order net length
- 36" and longer are furnished 1/2" shorter than ordered to fit within net door size. (i.e. 36" is furnished 35-1/2")
- Fits wood fire door mortise restrictions

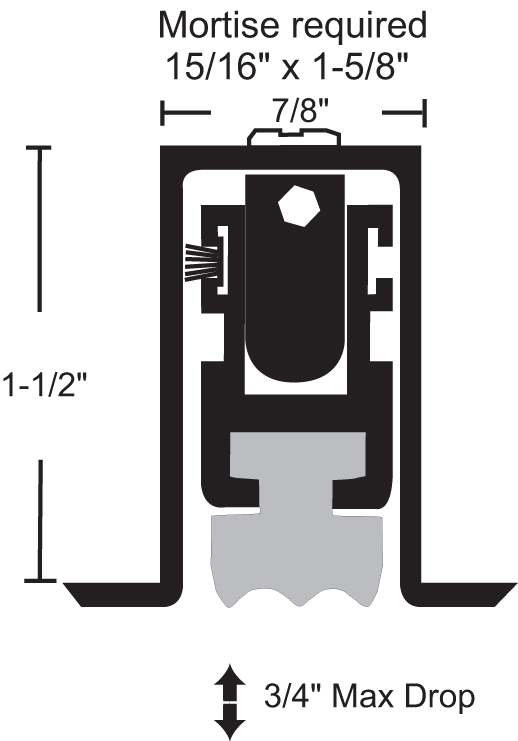

- Mortise required 15/16" x 1-5/8"
- Available 11" to 48" in length
- #4 x 5/8" SMS furnished
- 3/4" max drop
- Neoprene is black
- Mill aluminum
- Lead insert available for radiation shield - specify "lead-lined"
- Moisture Resistant
- Flame Resistant
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Aluminum Alloy 6063, T5 Temper
- Moisture-Resistant
- Good Resistance to Ozone, Sunlight and Aging
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix Closed Cell Advanced Elastomeric Foam
- Temperature Range -81°F to 275°F
- Use with a Threshold for Maximum Sealing Capability
- Specify Exact Net Length Required to Avoid Field Sizing
- Nylon Brush Recommended for Carpet Applications where no Threshold is Provided
- Fits Wood Fire Door Mortise Restrictions
- Furnished 1/2" Shorter than Ordered to Fit within Net Door Size. (i.e. 36" is Furnished 35-1/2")
- Available 11" to 48" in Length
- Mill Aluminum
- BHMA Certified to ANSI/BHMA A156.22, 1,000,000 Cycle Test-Grade 1
- Anodized Aluminum End Caps Furnished Standard. DKB End Caps Available - Please Specify
- Mortise Required 15/16" x 1-5/8"
- Color is Black
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
- 3/4" Max Drop
- 36" and Longer may be Cut up to 4" in the Field, under 36" should not be Cut in the Field, Order Net Length
- #4 x 5/8" SMS Furnished
Attributes
Ship via: Can Ship UPS
Application: Mortise Required 15/16" x 1-5/8"
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Category: Weatherization
Color: Color is Black
Commercial Residential: Commercial
Drop: 3/4" Max Drop
Fasteners: #4 x 5/8" SMS Furnished
Finish: Mill Aluminum
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: Flame-Resistant
Fire Rating: 3 Hours
Flange Length: 36"
Flange Material: Aluminum
Flange Thickness: 7/8"
Flange Width: 1-1/2"
Hazardous Material: NO
Insert Color: Black
Insert Material: Neoprene
Insert Size: 36" x 3/4"
Insert Type: Seal
Installation: Commercial
Length: Available 11" to 48" in Length
Manufacturer Warranty: Limited 5 Year Warranty
Material: Aluminum and Neoprene
Moisture Resistant: YES
No Of Inners: 1
Order_ Qty: 1
Pack Qty: 1
Product Width: 36"
Quickship: Yes
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subcategory: Weatherstripping
Subtype: Weatherstripping
Temperature Range: Temperature Range -81°F to 275°F
Type: Weatherization
Ul Listing: UL10C
Unit of Measure: Each
