Ship via: Can Ship UPS

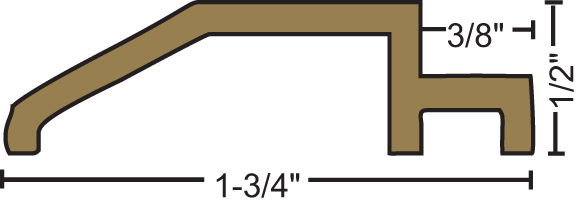

Dimensions: 1-3/4" width x 1/2" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Finish Description: Architectural Bronze Satin
Fire Rated: 3 Hours
Length: 36.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Subtype: Threshold
Type: Hinges and Pivots
Weight: Weight: .82 lbs./ft.
