Attributes
Ship via: Can Ship UPS
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Color: Vinyl bumper seal is black

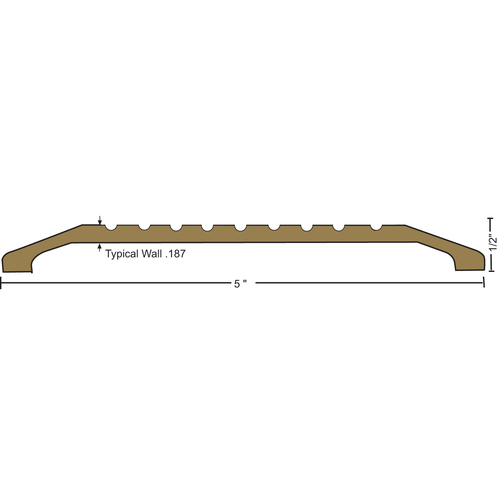

Dimensions: 5" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Insert Color: Gray
Insert Material: Vinyl
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Restrictions: Fragile
Series: Threshold Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standard-4: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Bumper Seal Threshold
Wall Thickness: Typical Wall Thickness: .125"
Weight: Weight: .85 lbs./ft.
