Ship via: Can Ship UPS
Accessible: No
Ada Compliance: No
Color: Vinyl is black
Commercial Residential: Commercial

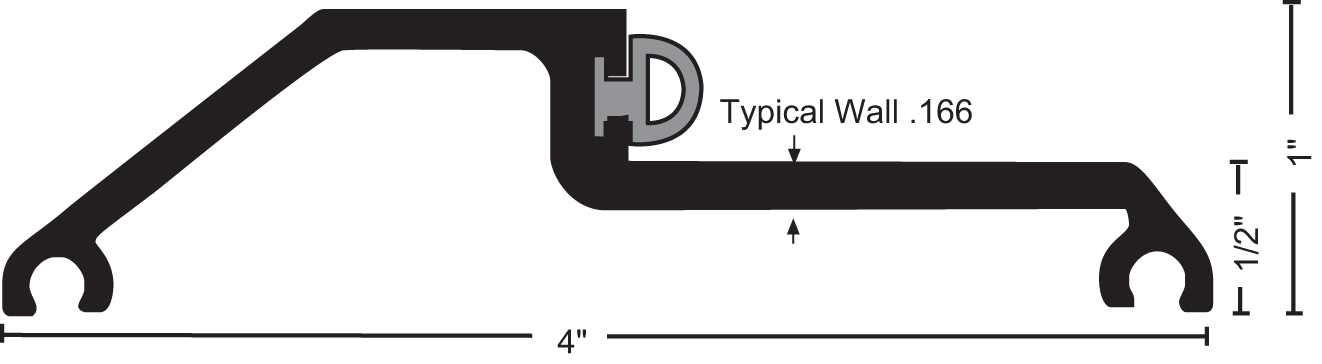

Dimensions: 4" wide x 1" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws furnished. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: 3 Hours
Fire Rating: 3 Hours
Installation: Commercial
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Series: NGP Thresholds
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Subtype: Threshold
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical Wall Thickness: .166"
Weight: Weight: .91 lbs./ft.
