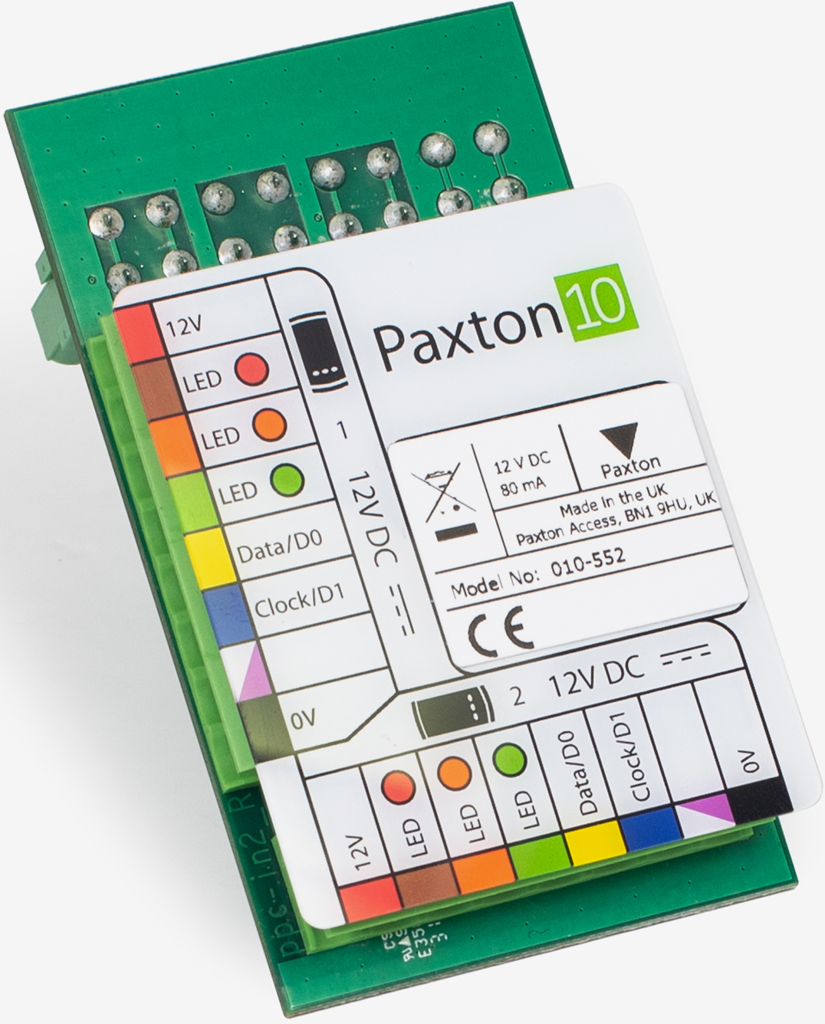

Paxton Access Inc. 010-552-US Paxton10 Reader Converter is a reliable solution for upgrading your access control system. Designed for seamless integration, this converter allows existing Net2 readers-including proximity, keypad, and keypad proximity options-to function with a Paxton10 system, ensuring a smooth transition without the need for complete hardware replacement. Key features include the ability to connect two readers, making it an efficient choice for expanding your security setup. The installation process is straightforward, compatible with both Paxton10 door controllers and video controllers, facilitating quick deployment. With a maximum power consumption of 300mA and a dedicated 12V DC power supply for readers, the converter is built for efficiency. In terms of communication, the device utilizes an RS485 data connection to the controller and a clock & data connection to the readers, enhancing data integrity and speed. Compactly designed with dimensions of 1-27/32" x 3-27/64" x 1-9/64", this converter is optimized for internal use, operating within a temperature range of +32°F to +113°F. Additionally, it comes with a five-year warranty and meets UL 294 and FCC 15B certifications, ensuring reliability and compliance in your security infrastructure.
Paxton10, Reader Converter, 12VDC, 2 Reader Connections, UL, FCC
The simple to install Paxton10 reader converter will allow for an easy upgrade path between Net2 and Paxton10, enabling the existing Net2 readers to be used with a Paxton10 system.
Features:
Specifications:
Alternate Codes: 010-552-US, 010552US
Category: Access Control, Hardwired, Prox Readers & Keypads (Hardwired)
