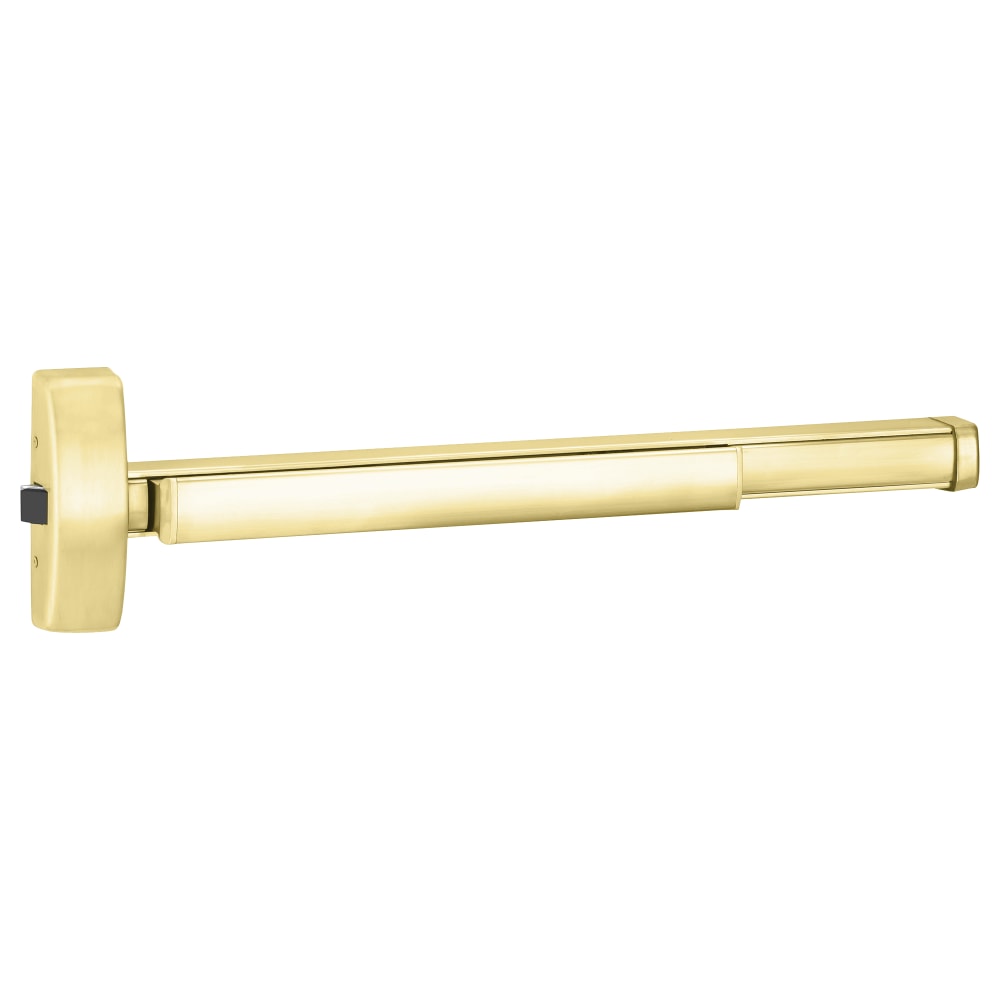

PHI MLRFL2103 605 36 Grade 1 Rim Exit Device offers exceptional security and functionality for commercial settings. This Grade 1 fire-rated exit device features a wide stile pushpad and is designed for a standard 36" door, making it an ideal choice for high-traffic areas such as healthcare and educational facilities. With motorized latch retraction, it ensures smooth operation while maintaining stringent safety standards. Constructed with heavy wrought brass, bronze, or stainless steel, the device is built to withstand daily wear and tear. Its stainless steel latchbolt provides a 3/4" throw for enhanced security, and the investment cast stainless steel strike guarantees durability. The PHI MLRFL2103 is also field reversible, allowing for easy installation on doors with thicknesses ranging from 1-3/4" to 2-1/4". This exit device accommodates various door materials and configurations, including those with vision lites. It is UL listed for panic and fire exit hardware, meeting the ANSI A156.3 Grade 1 certification. The standard touchbar height is set at 39-15/16" from the floor, but can be adjusted as needed. Available in a polished brass finish, this exit device combines aesthetic appeal with robust performance, making it a reliable choice for any application.

Grade 1 Rim Exit Device

Grade 1 Fire Rated Rim Exit Device, Wide Stile Pushpad, 36" Device, Storeroom Function, Motorized Latch Retraction, Bright Brass Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

Grade 1 exit devices that accommodate doors with vision lites or glass windows.

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

DOORS - For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

FUNCTIONS - Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.

DOUBLE CYLINDER - Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.

LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw. STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.

DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates. R

EVERSIBLE - Reversible for all functions and Trims. Standard packaging RHRB.

UL LISTED - Panic and Fire Exit Hardware.

Conforms to UL10C and UBC 7-2.

ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.

FINISHES - 605, 606, 612, 613, 625, 628, 630
