Prodatakey RK High-Security (13.56 MHz), OSDP, Wiegand, Red Keypad Reader redefines access control with its advanced technology and user-friendly design. This robust reader supports both high-security (13.56 MHz) and low-frequency (125 kHz) communication, allowing for a flexible migration path to secure credentials tailored to your security needs. One of the standout features of the RK reader is its OSDP multi-drop capability, which simplifies installation by allowing multiple readers to connect over a single cable run. This enhances efficiency and reduces installation costs. Powered by pdk.io, this reader offers a true cloud access solution, ensuring real-time updates, cloud backup, and round-the-clock support. With a read range of up to 4 inches for 125 kHz, the RK reader is designed to perform under a variety of environmental conditions, operating smoothly in temperatures ranging from -31°F to +150°F and humidity levels up to 95% non-condensing. Its IP55 protection rating ensures durability in challenging settings. Specifications include a compact size of 3.25" x 5.1" x 0.71" and a weight of just 11.3 oz, making it an ideal choice for both residential and commercial applications. Elevate your security system with the Prodatakey RK reader-where versatility meets high-security standards.

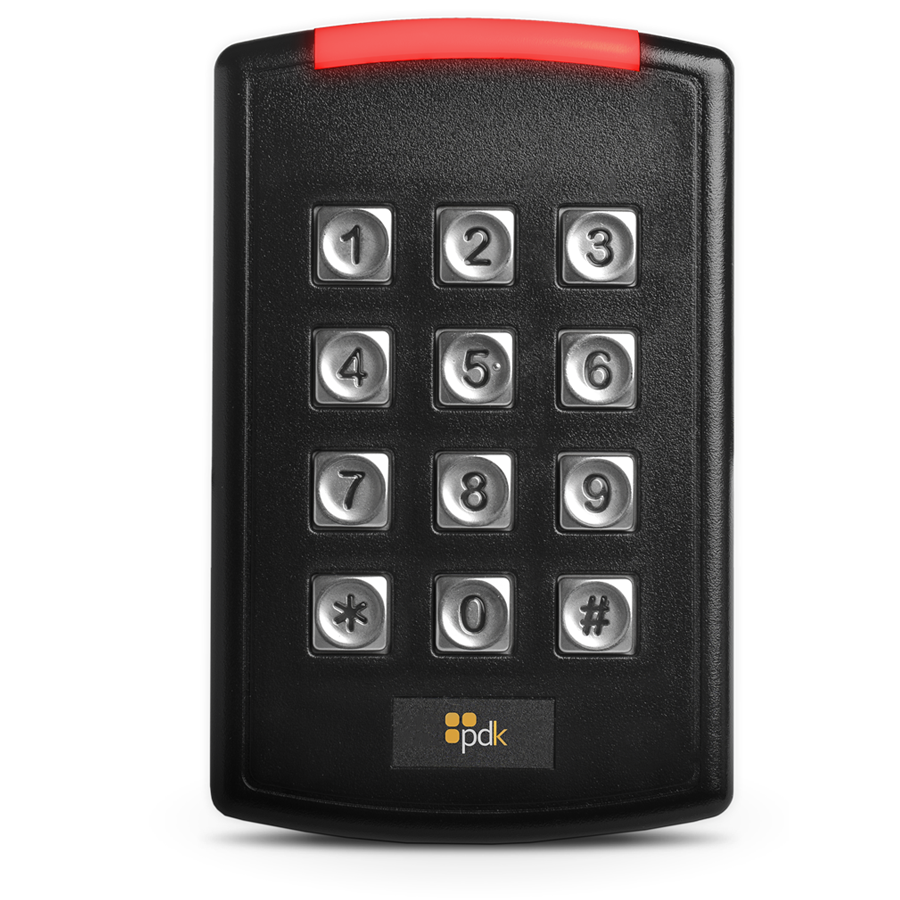

High-Security (13.56 MHz), OSDP, Wiegand, Red Keypad Reader

Red readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red readers are now one of the most secure and versatile readers on the market today, handling every application, from your daily install to the most secure implementation.

Features:

• Standard technologies include proximity (125 kHz) and high-security (13.56 MHz), so customers can set their migration path to secure credentials and security ecosystems.
• OSDP Multi-drop accommodates many readers by running one length of cable, eliminating the need to run wire for each reader.
• Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more.

Specifications:

• Model: Single-gang
• Read Range: 125 kHz up to 4in
• Output: OSDP and Wiegand protocol
• Encryption: MiFare DESFire EV2
• Cable Distance: Wiegand 500’ (22AWG)
• Temperature: -31 ~ +150 F or -35 ~ +66C
• Humidity: 0 - 95% non-condensing
• Protection Rating: IP55
• Power: 5 - 16V DC (Linear power supply recommended)
• Average Amperage: 143 mA
• Max Amperage: 193 mA
• Dimensions: 3.25" x 5.1" x 0.71"
• Weight: 11.3 oz
