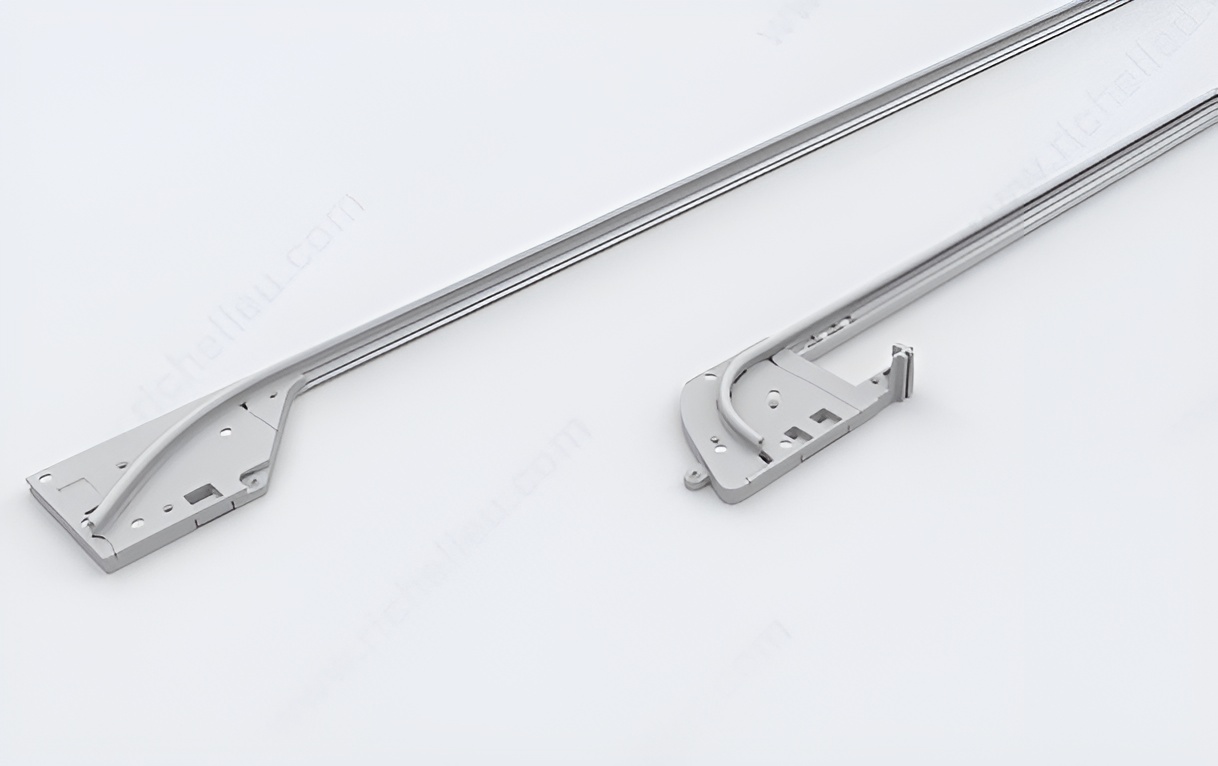

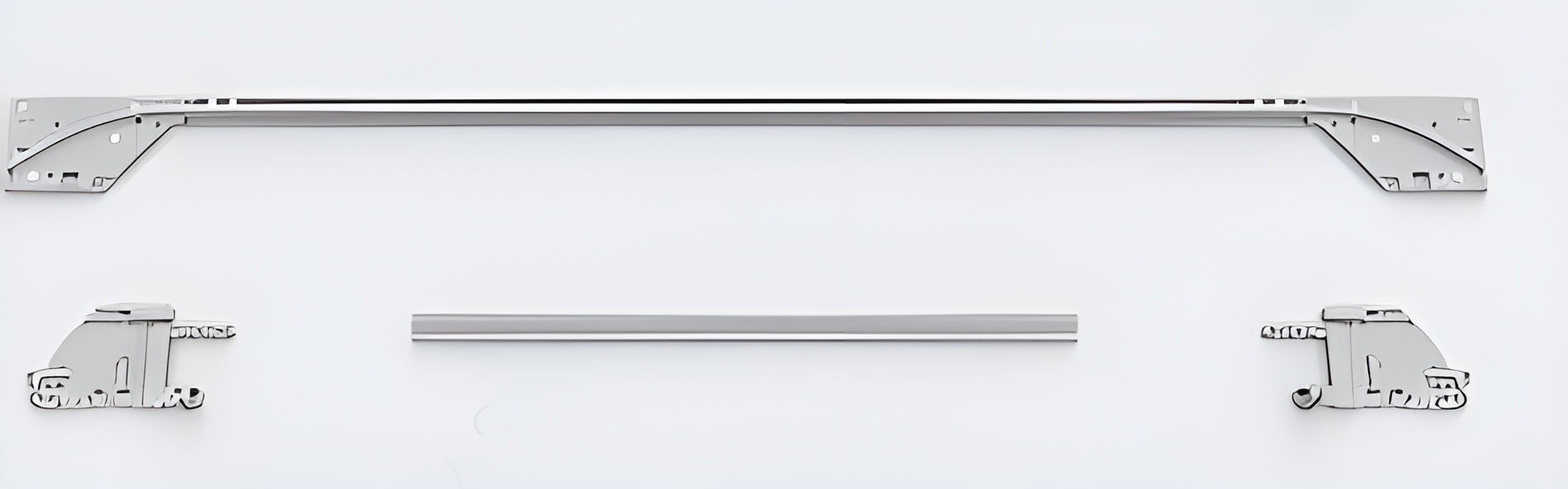

Richelieu 189S10BA0201 Slider S10 Base Track Set offers an efficient solution for sliding wood doors, accommodating two doors with a maximum weight of 22 lb (10 kg) each. This pre-assembled track and guide rail system is designed specifically for base cabinets, streamlining the installation process. Featuring a bottom-running design, it allows for a clean aesthetic without the need for a bottom guide rail. The soft-close and soft-open mechanisms ensure gentle, noise-free operation, enhancing the overall user experience. This set is compatible with doors measuring between 5/8 to 1 3/16 inches in thickness and can accommodate door widths ranging from 33 7/8 to 64 inches. With a maximum door height of 31 1/2 inches, it is ideal for a variety of cabinet applications. Constructed from durable stainless steel, the Richelieu Slider S10 Base Track Set not only provides long-lasting performance but also adds a modern touch to any cabinetry setup. Designed for full overlay door positioning, this track set is perfect for homeowners and professionals seeking both functionality and aesthetics. Easy to ship via UPS, it’s a practical choice for your next project.
Slider S10 Base Track Set
Brand: Salice
Door Height: Max. 800 mm
Door Installation: Bottom Running
Door Material: Wood
Door Position: Full Overlay
Door Thickness: 16 to 30 mm
Door Width: 860 to 1 627 mm
Load Capacity: 22 lb*
Manufacturing Material: Stainless Steel
Number of Doors: 2
Product #: 189S10BA0201
Product number: 189S10BA0201
Product type: Running and Guiding Tracks
Product №: 189S10BA0201
Soft- Closing: Yes
Track Material: Stainless Steel
Unit: Set
Weight Capacity per Door: 10 kg
