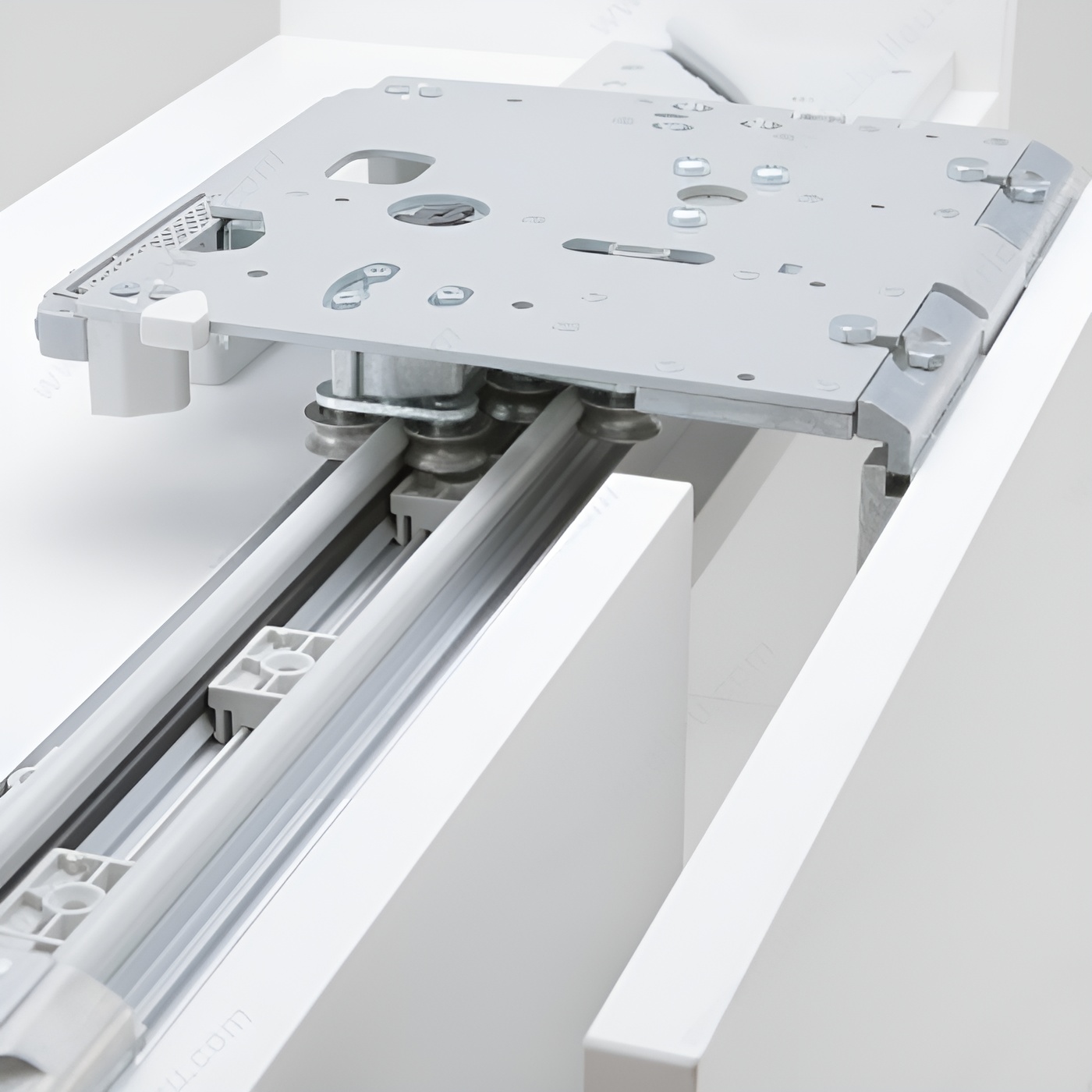

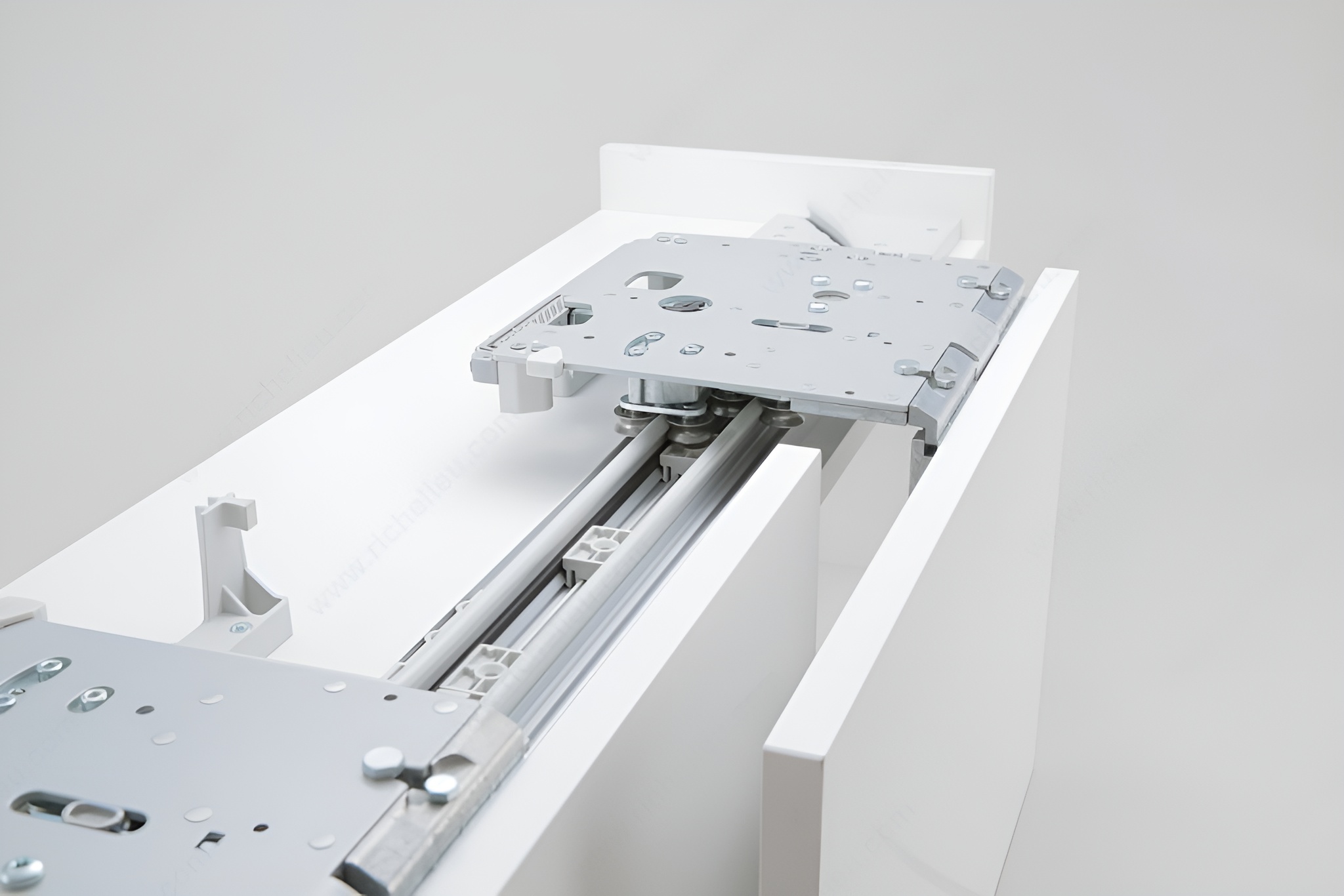

Richelieu 189S10KIT0102 Slider S10 Coplanar System Hardware Set is an innovative solution designed for the seamless operation of two wood doors, each weighing up to 22 lb (10 kg). This hardware set features a suspended slider equipped with double horizontal trolleys, ensuring smooth and reliable door movement. The soft-close and soft-open mechanisms enhance user experience, minimizing noise and preventing slamming. Designed for versatility, this system accommodates seven different cabinet widths, making it suitable for a variety of applications. The maximum door height of 31 1/2 inches and width range from 38 7/8 to 43 7/8 inches offer flexibility in design, while supporting door thicknesses from 5/8 to 1 3/16 inches. The full overlay door position provides a sleek and modern appearance, perfect for contemporary settings. Constructed with ball bearing rollers, the 189S10KIT0102 ensures durability and effortless operation. It can be installed with either a top hung or bottom running configuration, adapting to your project's specific needs. Designed for easy shipping via UPS, this hardware set is ideal for builders and homeowners looking to enhance their cabinetry with a stylish and functional sliding door system.
Slider S10 Coplanar System Hardware Set
Application: Cabinet
Brand: Salice
Door Height: 800 mm
Door Installation: Top Hung, Bottom Running
Door Material: Wood
Door Position: Full Overlay
Door Thickness: 16 to 30 mm
Door Width: 988 to 1 115 mm
Load Capacity: Max. 22 lb*
Number of Doors: 2
Product #: 189S10KIT0102
Product number: 189S10KIT0102
Product type: Hardware Set
Product №: 189S10KIT0102
Roller Type: Ball Bearing
Unit: Set
Weight Capacity per Door: Max. 10 kg
