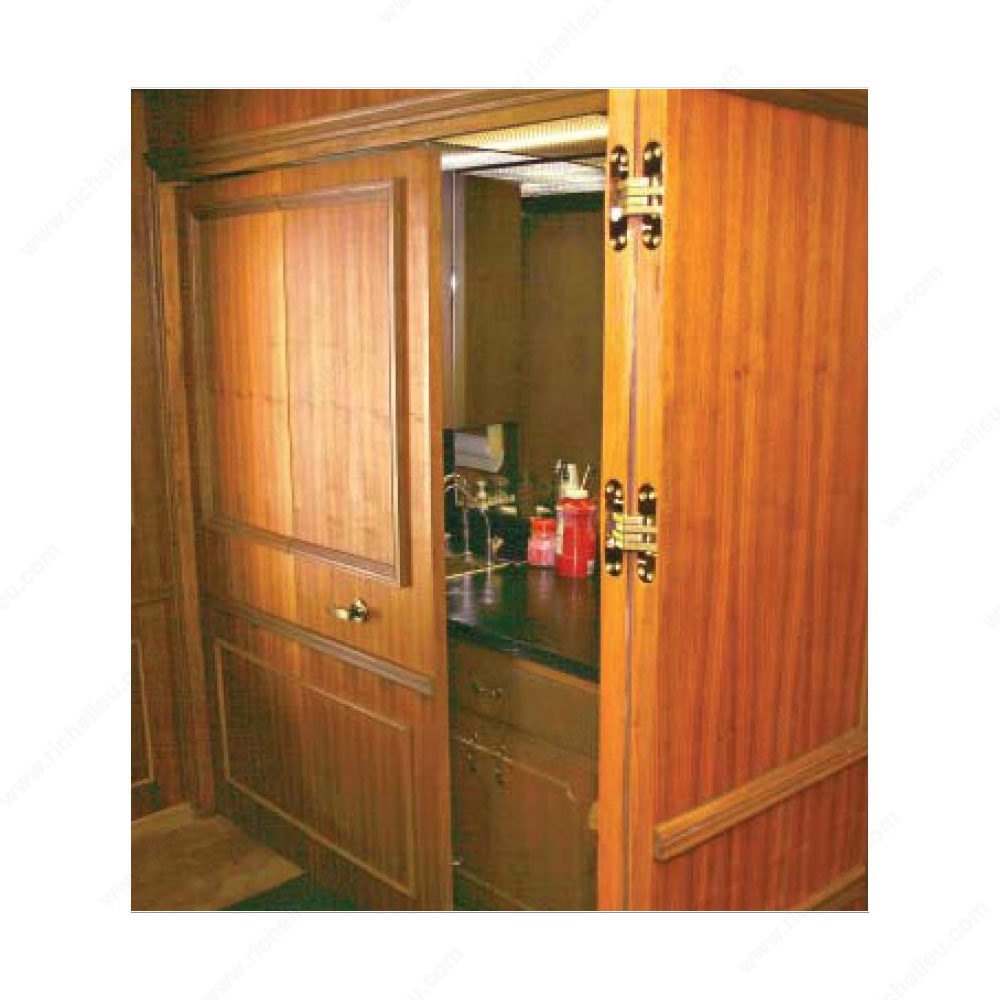

Richelieu 429218ORB Concealed Steel Hinge - Model 218 offers a perfect blend of aesthetic appeal and robust functionality for modern architectural needs. Designed for both wood and metal doors, this hinge ensures a seamless installation, accommodating various applications with ease. The sleek oil-rubbed bronze finish enhances its contemporary style, making it an ideal choice for upscale interiors. With a hinge opening angle of +180°, this model allows for maximum accessibility while maintaining a discreet profile. The reversible design adds flexibility, enabling installation on either side of the door. It features a minimum door thickness of 1 3/4 inches, making it suitable for a variety of door types. The leaf body mortise length of 2 15/32 inches and a width of 1 1/8 inches contribute to its sturdy construction, ensuring reliable performance. This hinge is UL certified with a fire resistance rating of 20 minutes, providing added safety for your spaces. Installation is straightforward, with screw-on fixing type and included screws for convenience. The Richelieu 429218ORB is an excellent choice for professionals seeking a reliable, stylish solution that meets high standards in both form and function.

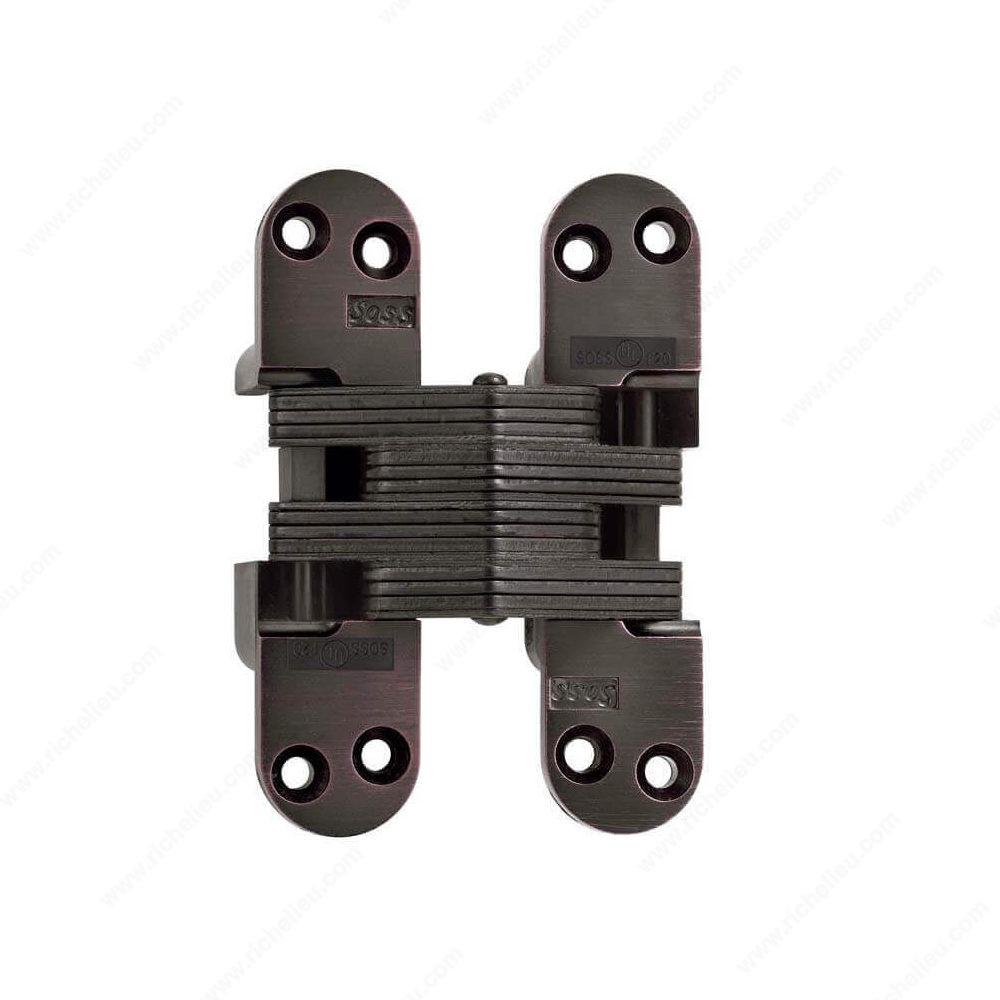

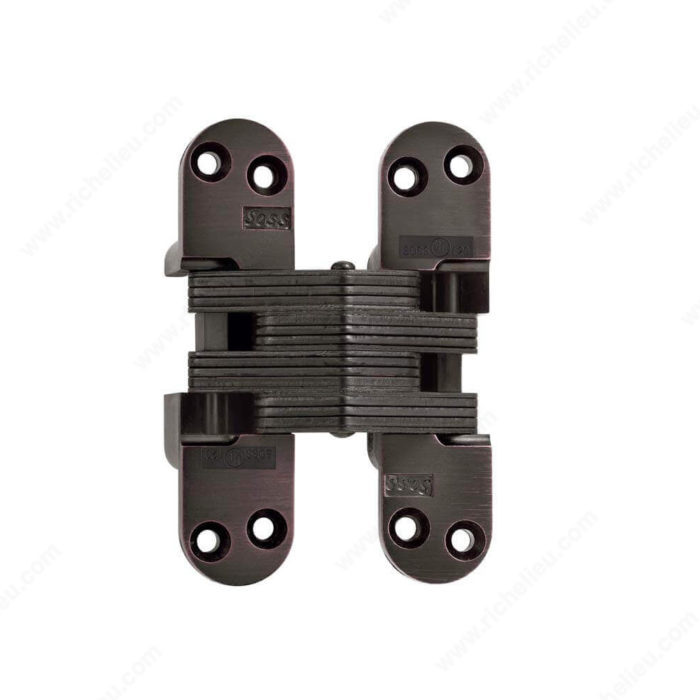

Concealed Steel Hinge - Model 218
Cabinet Angle: 180°
Center to Center (mm): 3 1/2 in

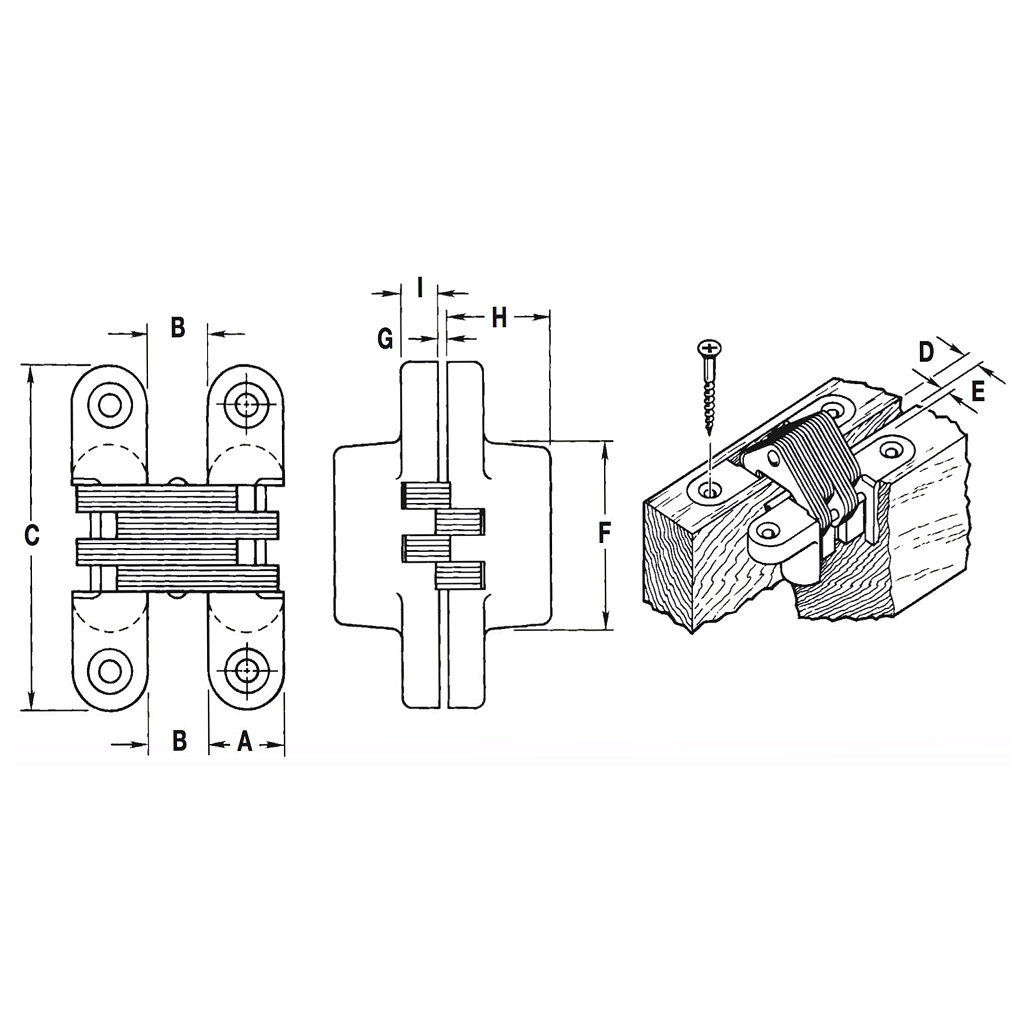

Dimension A: 1 1/8 in
Dimension B: 7/8 in
Dimension C: 4 5/8 in
Dimension D: 3/8 in
Dimension E: 1/4 in
Dimension F: 2 15/32 in
Dimension G: 1/16 in
Dimension H: 1 41/64 in
Dimension I: 13/32 in
Door/ Jamb Gap: 3/8 in
Door/ Jamb Gap (mm): 3/8 in
Door/ Jamb Gap in Closed Position: 1/16 in
Door/ Jamb Inset: 1/4 in
Door/ Jamb Inset (mm): 7/8 in
Finish: Oil-Rubbed Bronze
Fire Resistant: 20 minutes
Fixing Type: Screw-On
For Hinge #: 218
Handedness: Reversible
Height: 1 41/64 in
Hinge Opening Angle: +180º
Leaf Body Mortise Length: 2 15/32 in
Leaf Gap: 7/8 in
Leaf Mortise Depth: 13/32 in
Length: 4 5/8 in
Material: Steel
Minimum Door Thickness: 1 3/4 in
Mounting Type: Mortise
Packaging format: Per unit
Product #: 429218ORB
Product number: 429218ORB
Product №: 429218ORB
Screw/ Nail: Screw included
Standards and Certifications: UL R13634
Type of Hinge: Wood or Metal
Width: 1 1/8 in
Wood Screw Sizes: #10 x 1-1/2" (4.8 mm x 38 mm)
