Richelieu 71M259180 CLIP Hinge – 100 is designed for ease of use and superior functionality in frameless cabinetry. Its ergonomic design ensures simple handling, making installation a breeze for professionals and DIY enthusiasts alike. The unique Inserta fixing mechanism allows for rapid and secure connections to the mounting plate, enhancing efficiency during assembly. This hinge is tailored for full overlay doors with a minimum thickness of 5/8 inches, ensuring a seamless fit and optimal aesthetic appeal. With a generous hinge opening angle of +100°, it provides wide access, making it ideal for standard doors. The spring closing mechanism adds convenience by automatically returning the door to a closed position, promoting a tidy finish. For installation, the milling depth required is 13/32 inches with a milling diameter of 1 3/8 inches, allowing for precise fitting within the cabinet structure. This product ships via UPS and is packaged individually for ease of handling. Richelieu's commitment to quality and innovation shines through in this hinge, making it an essential component for any cabinetry project. Choose the Richelieu 71M259180 CLIP Hinge for a reliable solution that combines functionality and style seamlessly.

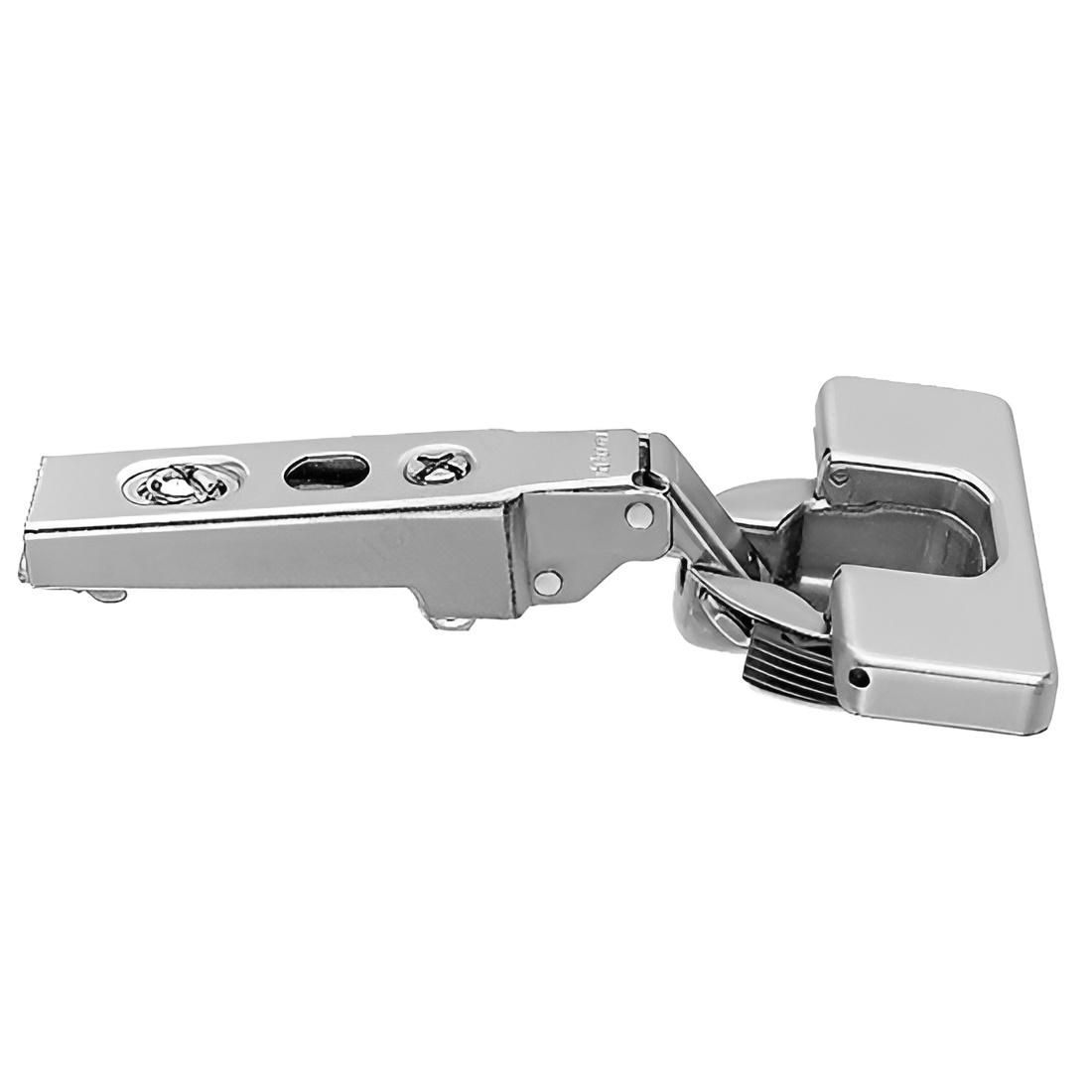

CLIP Hinge - 100
Cabinet Thickness: 16 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing

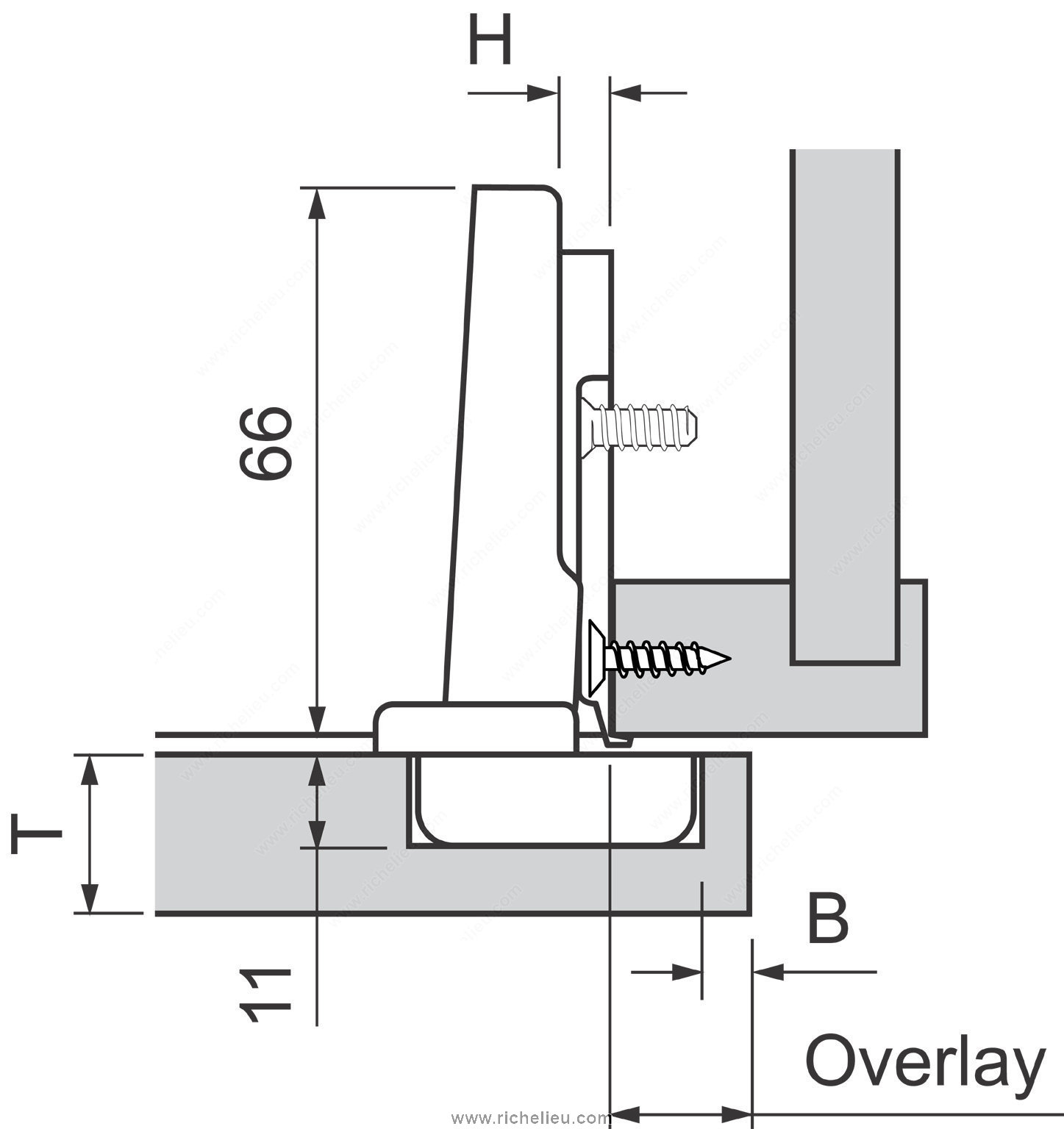

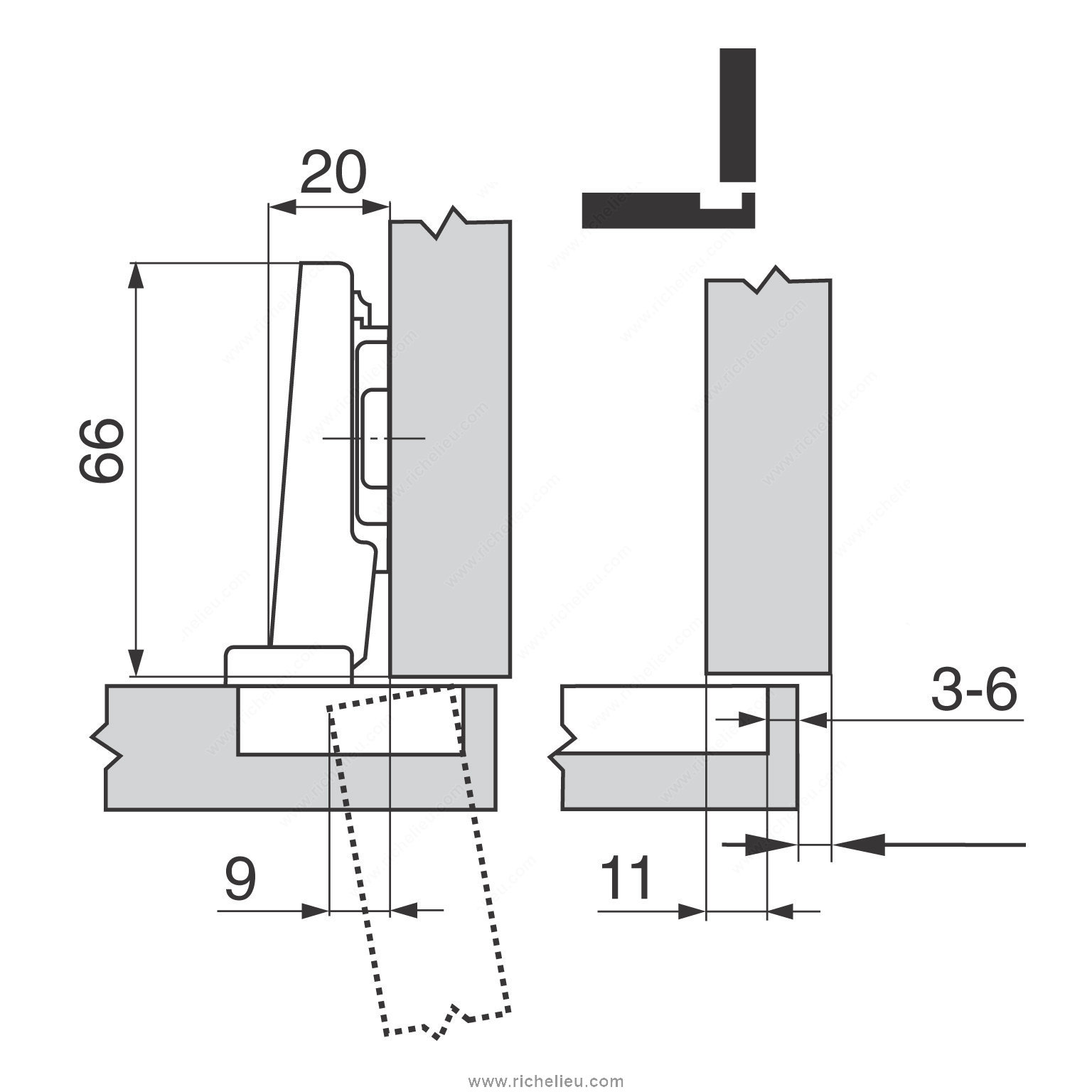

Door Position: Full Overlay
Door Thickness: Min. 16 mm
Fixing Type: Toolless
Hinge Opening Angle: +100°
Hinge Type: CLIP
Mechanism: Spring Closing

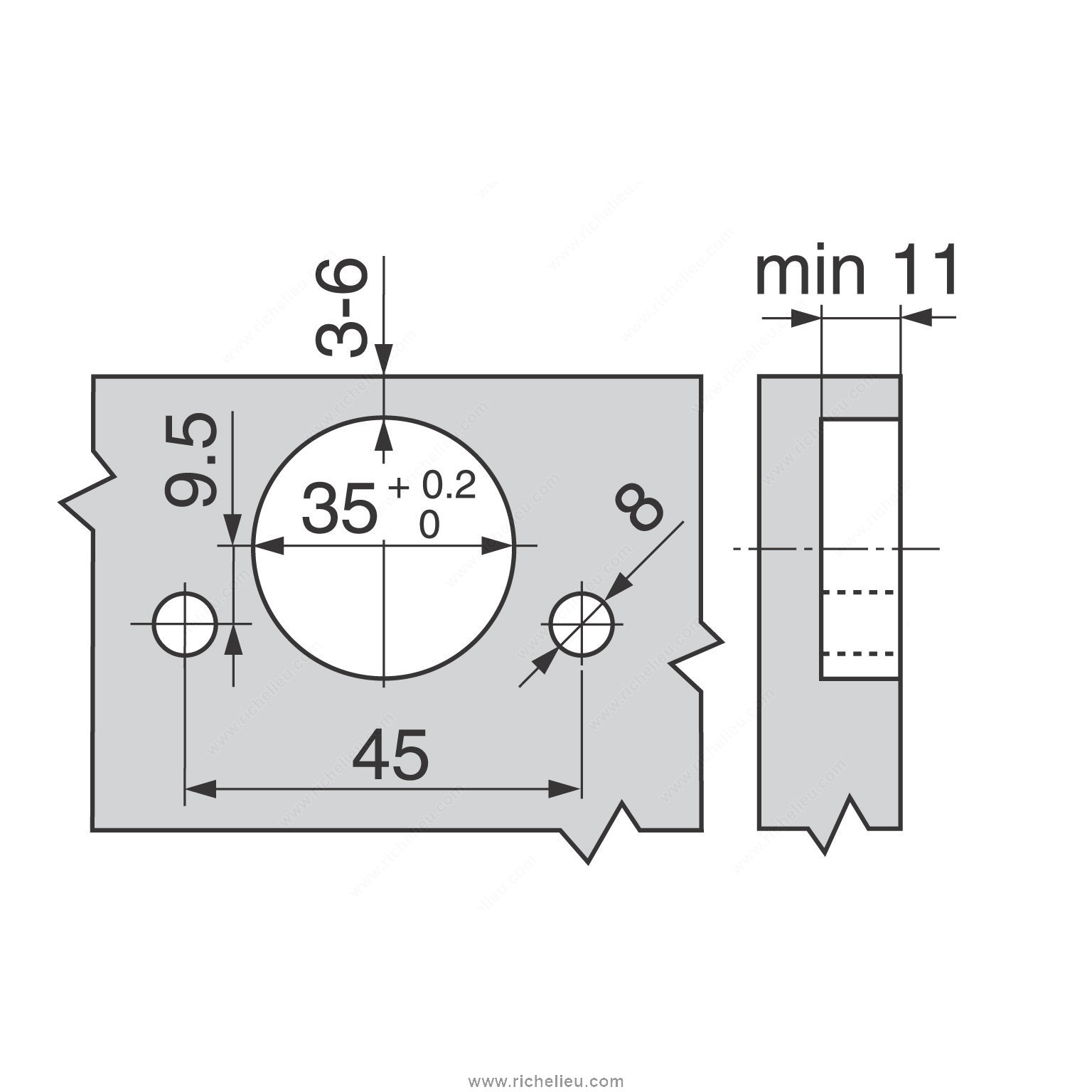

Milling Depth: 10.5 mm
Milling Diameter: 35 mm
Packaging Specifications: Not Applicable
Packaging format: Per unit
Product #: 71M259180
Product number: 71M259180
Screw/ Nail: N/A
Unit 1: case - 250
Use Type: Standard Door
