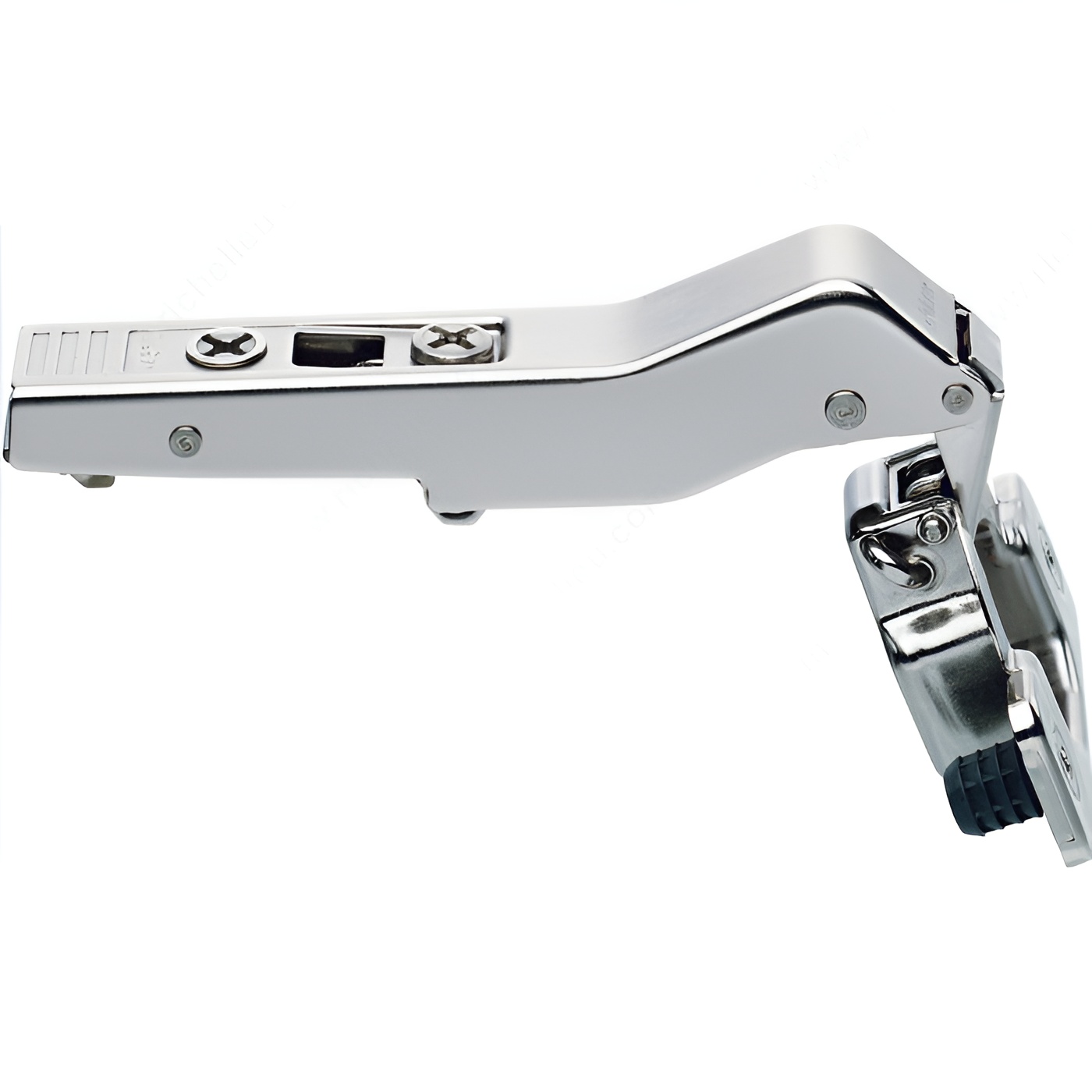

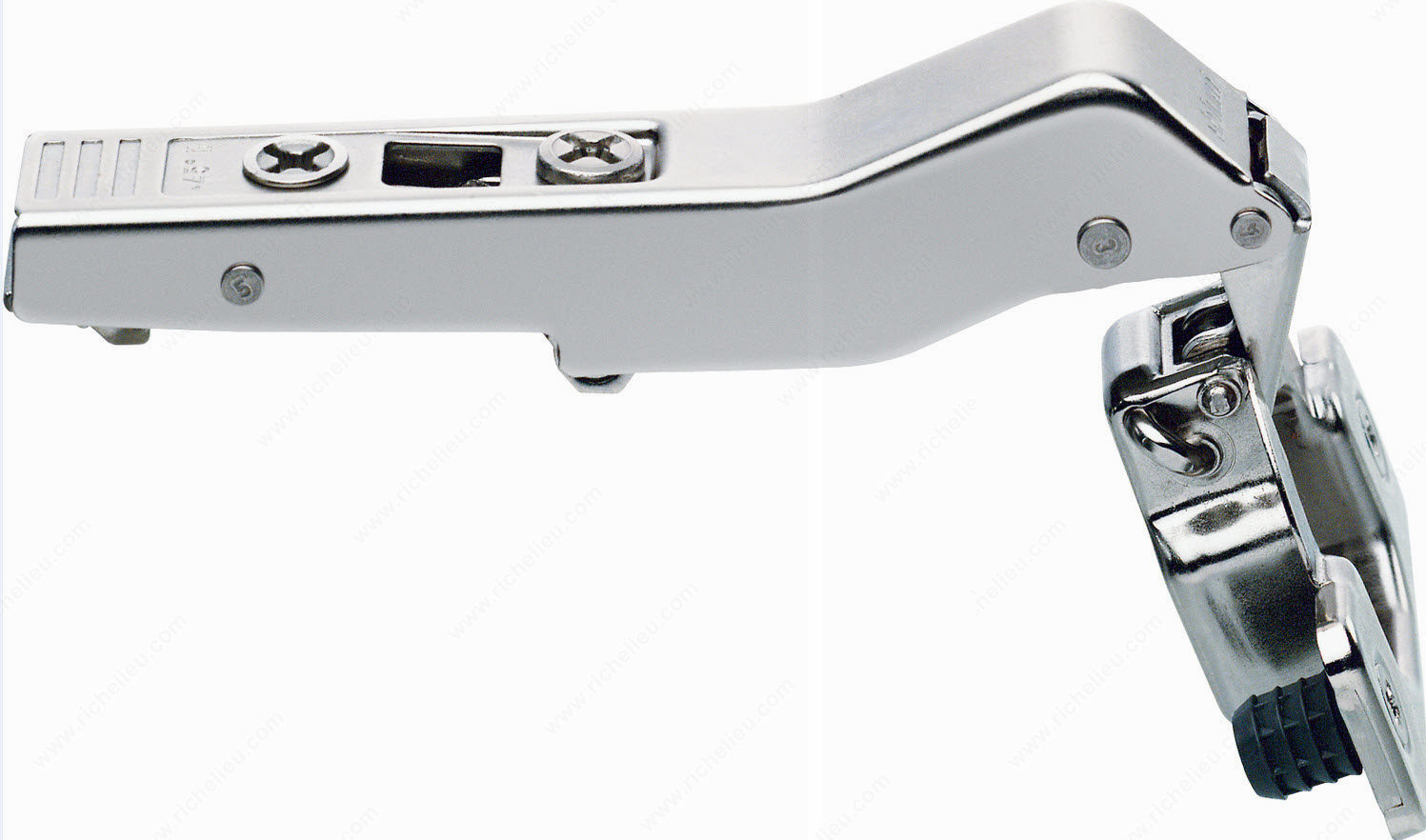

Richelieu 79T558180 45 Angled CLIP top Hinge is expertly engineered for seamless cabinet door installations with a 45° angle, catering specifically to frameless cabinet designs. Crafted for durability and ease of use, this hinge features a nickel finish that not only enhances aesthetic appeal but also ensures longevity in high-traffic environments. One of its standout features is the adjustable cam, allowing for quick and precise depth adjustments. This ensures that your cabinet doors align perfectly, providing a polished look to any kitchen or storage area. The hinge accommodates doors with a minimum thickness of 3/4 inch, making it versatile for various applications. With a hinge opening angle of +45°, it allows for ample access to cabinet contents, while the spring closing mechanism guarantees that doors close securely and smoothly every time. The milling depth of 1/2 inch and a diameter of 1 3/8 inches make installation straightforward, especially for professionals who appreciate efficiency in their projects. Richelieu's commitment to quality is evident in this product, making the 79T558180 hinge a reliable choice for building professionals and knowledgeable homeowners alike. Enhance your cabinetry with this innovative solution that combines functionality with style.
45 Angled CLIP top Hinge
Cabinet Thickness: Min. 19 mm
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Door Position: Angled Overlay
Door Thickness: Min. 19 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +45°
Hinge Type: CLIP top
Mechanism: Spring Closing
Milling Depth: 12.7 mm
Milling Diameter: 35 mm
Packaging Specifications: Not Applicable
Product #: 79T558180
Product number: 79T558180
Unit 1: carton - 50
Unit 2: case - 250
Use Type: Angle Cabinet
