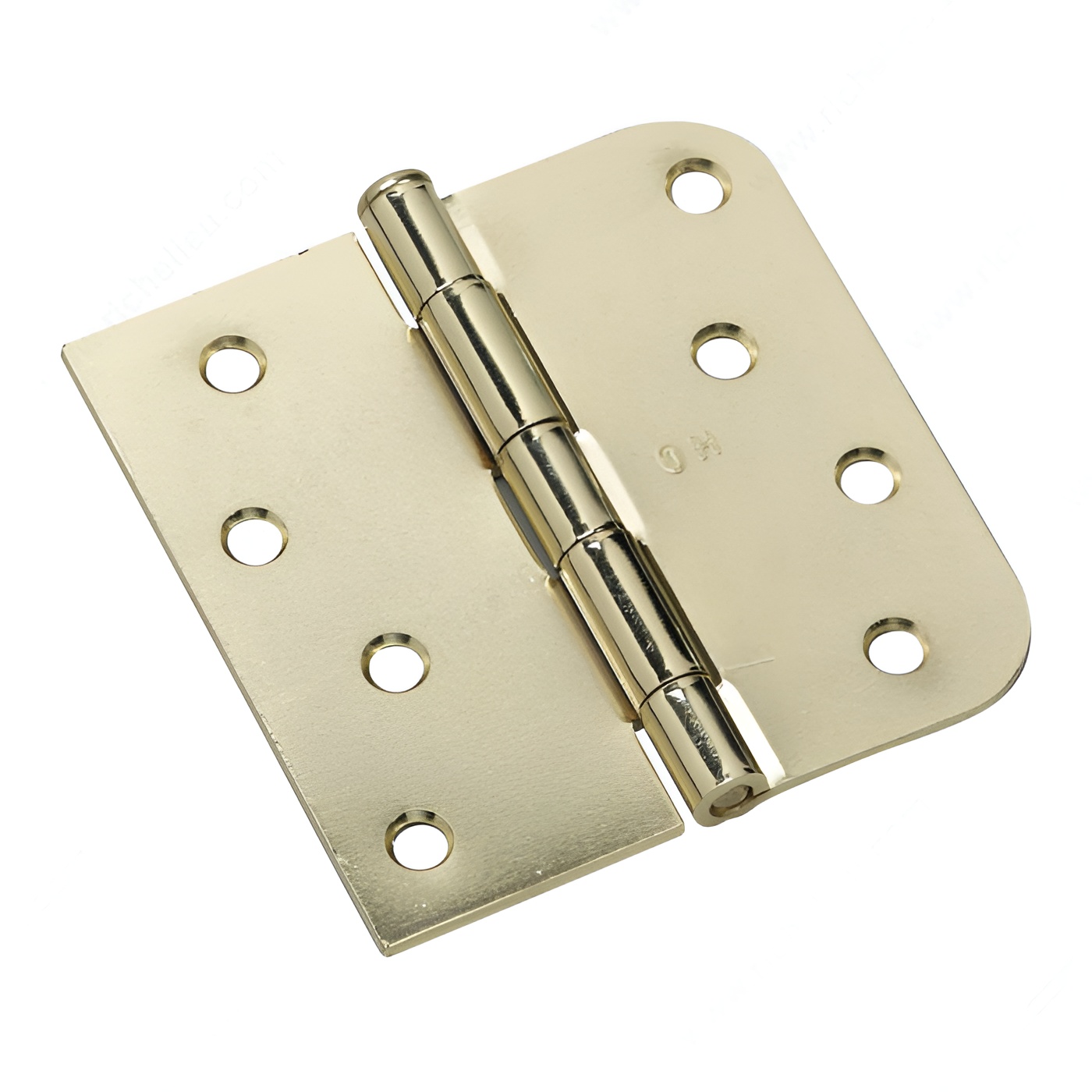

Richelieu 81822BB 4" Full Mortise Combination Butt Hinge - 5/8" Radius enhances the functionality and aesthetics of your project with its sleek design and durable construction. Crafted from high-quality steel, this hinge is designed for light use and supports a maximum load of 55 lbs when using three hinges, making it ideal for standard doors. The 4-inch height and 4-inch width provide a robust support system, while the 5/8" radius square corner design adds a modern touch to any interior. Its brass finish not only adds elegance but is also available in various trendy finishes to suit your design preferences. The removable pin feature simplifies both the installation and removal of the door, ensuring a hassle-free experience. This hinge comes fully assembled with included screws, allowing for quick and easy mounting in a mortise application. With a gap of 1/8", it offers a seamless fit that enhances the overall look of your door. Whether you're a building professional or a knowledgeable homeowner, the Richelieu 81822BB is a reliable choice that combines form and function effortlessly.
4" Full Mortise Combination Butt Hinge - 5/8" Radius
Assembly: Assembled
Brand: Onward
Caliber/ Thickness: 2.5 mm
Color/ Finish: Brass
Features: Reversible
Finish: Brass
Gap: 1/8"
Height: 4 in
Load Capacity: 55 lb
Material: Steel
Max. Load (3 Hinges): 55 lb
Max. load (3 hinges): 60 lb
Mounting Type: Mortise
Pin: Included
Product #: 81822BB
Product number: 81822BB
Product №: 81822BB
Recommended Usage: Light Use
Screw/ Nail: Included
Type of Corner: Square, 5/8" Radius
Type of Tip: Flat Tip
UPC Code: Yes
Unit: Box of 3
Unit 1: carton - 5
Unit 2: carton - 5
Unit 3: case - 25
Use Type: Standard Door
Width - Overall Dimensions: 4 in
