Richelieu 89K3706005110 BRIDGE 600 Bypassing Wood Door KitRichelieu 89K3706005110 BRIDGE 600 Bypassing Wood Door Kit offers a sophisticated solution for creating seamless access in your spaces. This bottom-running sliding door system is designed to accommodate doors weighing up to 60 kg (132 lbs), making it perfect for closets, walk-in closets, wardrobes, pantries, and more. Available in two finishes-Anodized Silver and Satin Black-this kit enhances any interior aesthetic. Choose between kits for two doors featuring 2 m (78-3/4 in) double upper tracks or three doors with 3 m (118 in) triple tracks, both of which are surface-mounted for easy installation. The three-door option includes a locator device for the middle door to ensure smooth operation. An optional soft close mechanism with adjustable spring adds a touch of refinement, allowing doors to glide shut gently. Designed with practicality in mind, the BRIDGE 600 requires the use of metric dimensions for precise installation, and it’s recommended to incorporate a door stiffener for optimal stability. Ideal for doors with a thickness between 23/32 to 7/8 in and widths ranging from 23 5/8 to 39 3/8 in, this complete set is the perfect choice for any modern project requiring elegant functionality.
BRIDGE 600 Bypassing Wood Door Kit

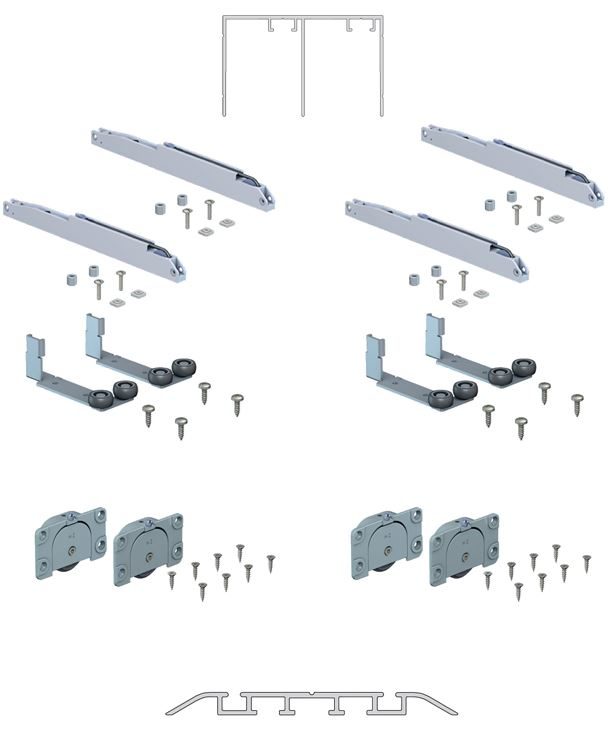

The BRIDGE 600 Bypassing Wood Door kit is a bottom-running sliding door system for doors weighing up 60 kg (132 lbs) each. Available in two finishes: Anodized Silver and Satin Black.
Select from kits for two doors with 2 m (78-3/4 in) double upper tracks or three doors with 3 m (118 in) triple tracks. All tracks are surface mounted.
Three-door kits include locator device for the middle door.
Optional soft close with adjustable spring.
Important: Use metric dimensions for greater accuracy during installation.

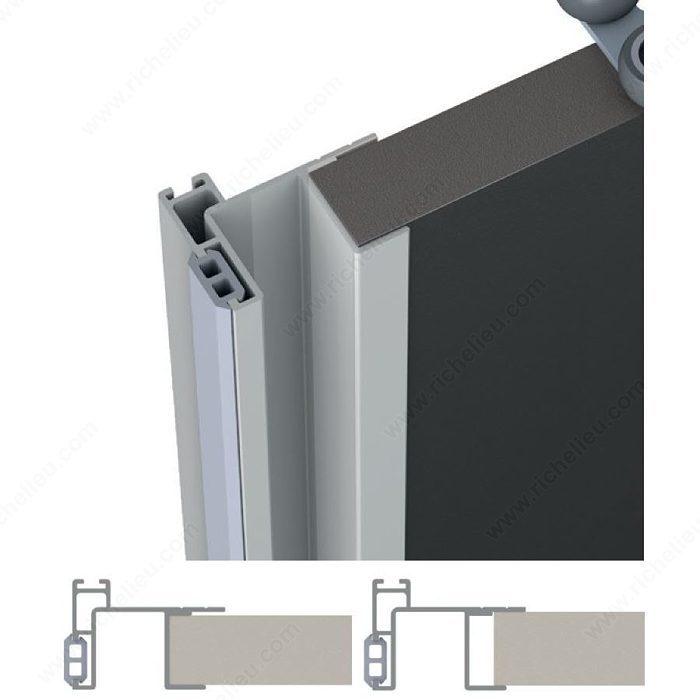

Use a door stiffener/straightener to stabilize and support the structure of the door to resist flexing.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Closet and Walk-In Closet, Wardrobe, Pantry, Furniture, Cabinet, Storage
Brand: BRIDGE
Brand Model: Pozzi Bridge
Detailed Door Movement: Bypassing
Door Height: 2 087 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Thickness: Max. 22 mm
Door Width: 1 050 mm
Finish: Satin Aluminum (VC)
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 44.1 to 132 lb*
Number of Doors: 2
Overall Length: 2 000 mm
Packaging format: Set
Product #: 89K3706005110
Product Type: Complete Set
Product number: 89K3706005110
Product type: Complete Set
Product №: 89K3706005110

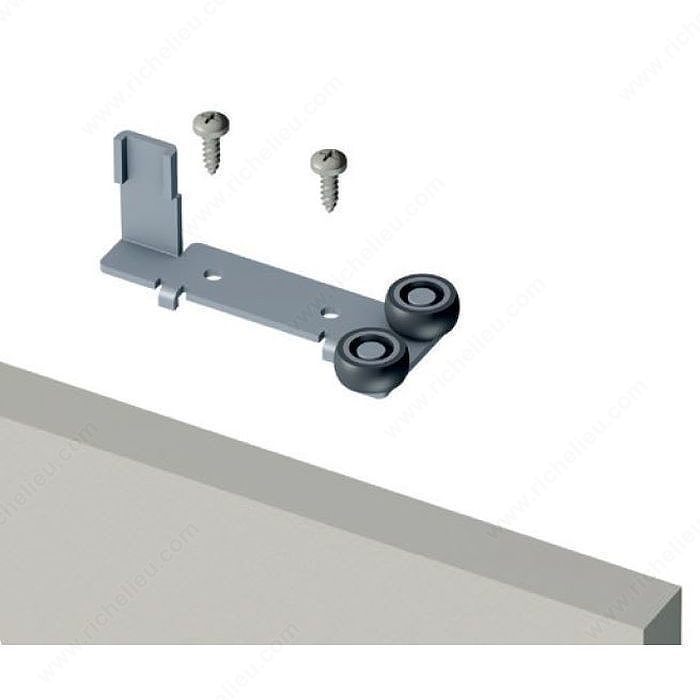

Roller Position: Lower
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Track Length: 2 000 mm
Track Mounting: Ceiling Mount
Unit: Set
Weight Capacity per Door: Max. 60 kg
