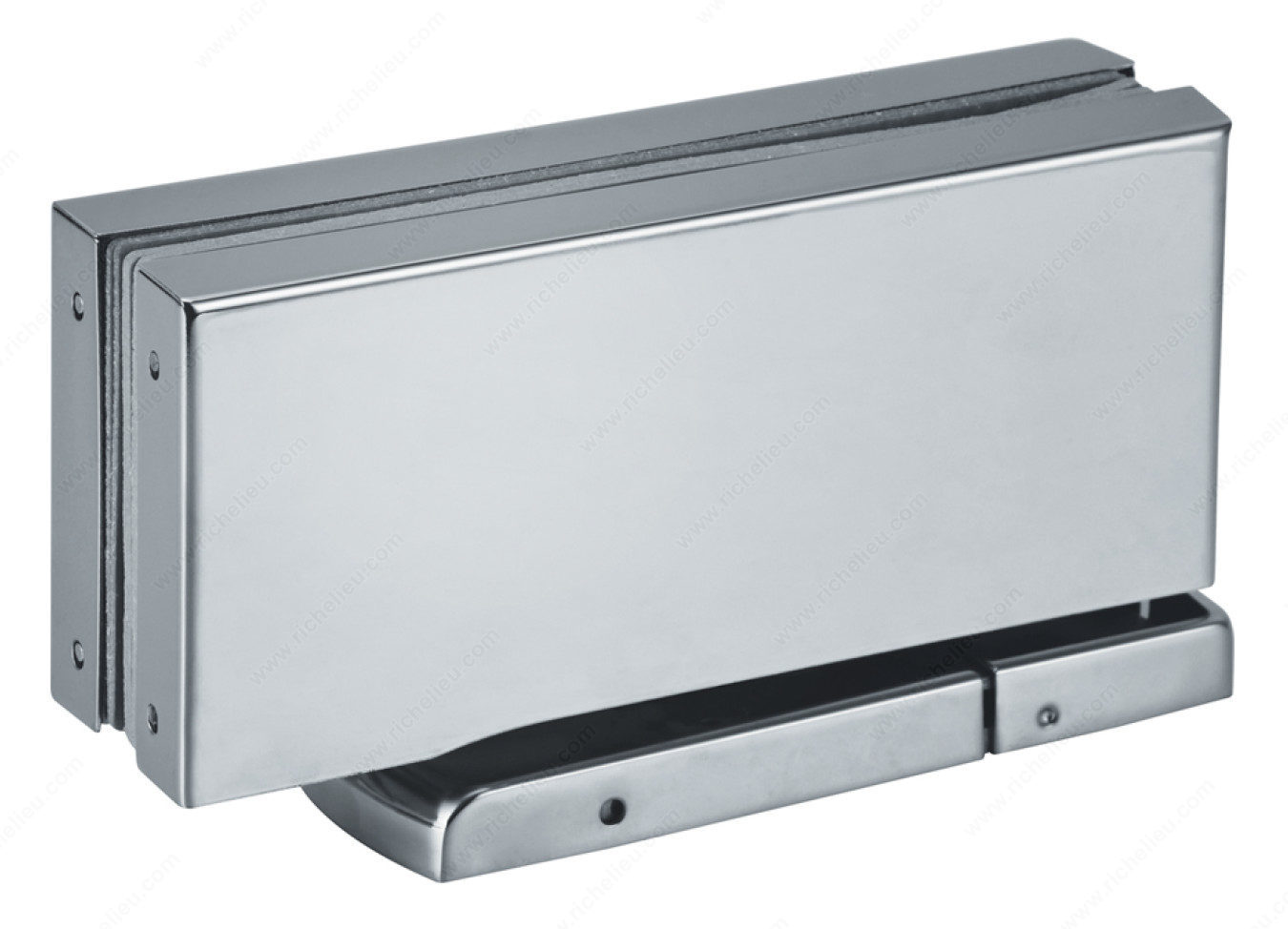

Richelieu CDHFH100SS Hydraulic Self-Closing Bottom Pivot Patch-Fitting Hinge is engineered for seamless functionality and robust performance in heavy-duty applications. Crafted from durable aluminum and finished in brushed stainless steel, this hinge not only enhances the aesthetic appeal of your interior doors but also offers exceptional reliability. The hydraulic design includes a multi-adjustable mounting plate and two adjustment valves, allowing precise control over closing speed. With a maximum open angle of 140°, it provides optimal space management while ensuring smooth operation. This hinge is designed for ease of installation, mounting directly onto the floor surface and is reversible for versatility in various setups. The CDHFH100SS accommodates glass thicknesses ranging from 13/32 to 19/32 inches and supports a maximum load capacity of 220 pounds per hinge. It is suitable for doors up to 39 3/8 inches wide and a recommended height of up to 86 5/8 inches, making it ideal for a range of interior settings. With its robust construction and thoughtful design features, the Richelieu CDHFH100SS hinge is a reliable choice for professionals seeking quality and durability in their architectural hardware solutions.
Hydraulic Self-Closing Bottom Pivot Patch-Fitting Hinge
Application
Color: Stainless Steel
Color Number: 170
Finish: Brushed
Glass Thickness: 10 to 15 mm
Height: 77 mm
Length: 177 mm
Load Capacity: Max. 100 kg
Manufacturing Material: Aluminum
Material: Aluminum
Max. Door Width for 2 Hinges: Max. 1 000 mm
Mounting Method: Floor Mount
Mounting Side: Reversible
Mounting method: Floor Mount
Mounting side: Reversible
Product #: CDHFH100SS
Product number: CDHFH100SS
Product №: CDHFH100SS
Recommended Door Height: Max. 2.2 m
Recommended Location Usage: Interior
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Unit 1: case - 6
Usage: Heavy-Duty
Weight Capacity for 2 Hinges: Max. 100 kg
Width: 55 mm
