Richelieu FRAKFEPDSN9 Wind Lift System - Push InstructionsRichelieu FRAKFEPDSN9 Wind Lift System - Push is an innovative solution tailored for flap doors, offering a blend of compact design, elegance, and functionality. This lift door system is ideal for modern kitchens, where space efficiency is paramount. With a maximum door thickness of 28 mm (1 1/8") and a minimum of 16 mm (5/8"), it easily accommodates various wood door types, making it versatile for different cabinetry. The Wind Lift System features an integrated damping mechanism, ensuring a soft closing action that enhances user experience. Its push-to-open functionality eliminates the need for handles, providing a clean and streamlined aesthetic. The system supports overlay adjustments from 16 mm to 20 mm and allows for precise drilling between 3 mm to 7 mm of the door edge. For optimal installation, it offers height, lateral, and depth adjustments, allowing users to fine-tune the fit with ease (+2 mm, -2 mm for height and lateral adjustments; -1 mm, +3 mm for depth). With a hinge opening angle of +94°, this system provides excellent accessibility. Designed for doors ranging from 8 21/32" to 23 5/8" in height, the Richelieu Wind Lift System is a reliable choice for contemporary cabinetry solutions.
Wind Lift System - Push

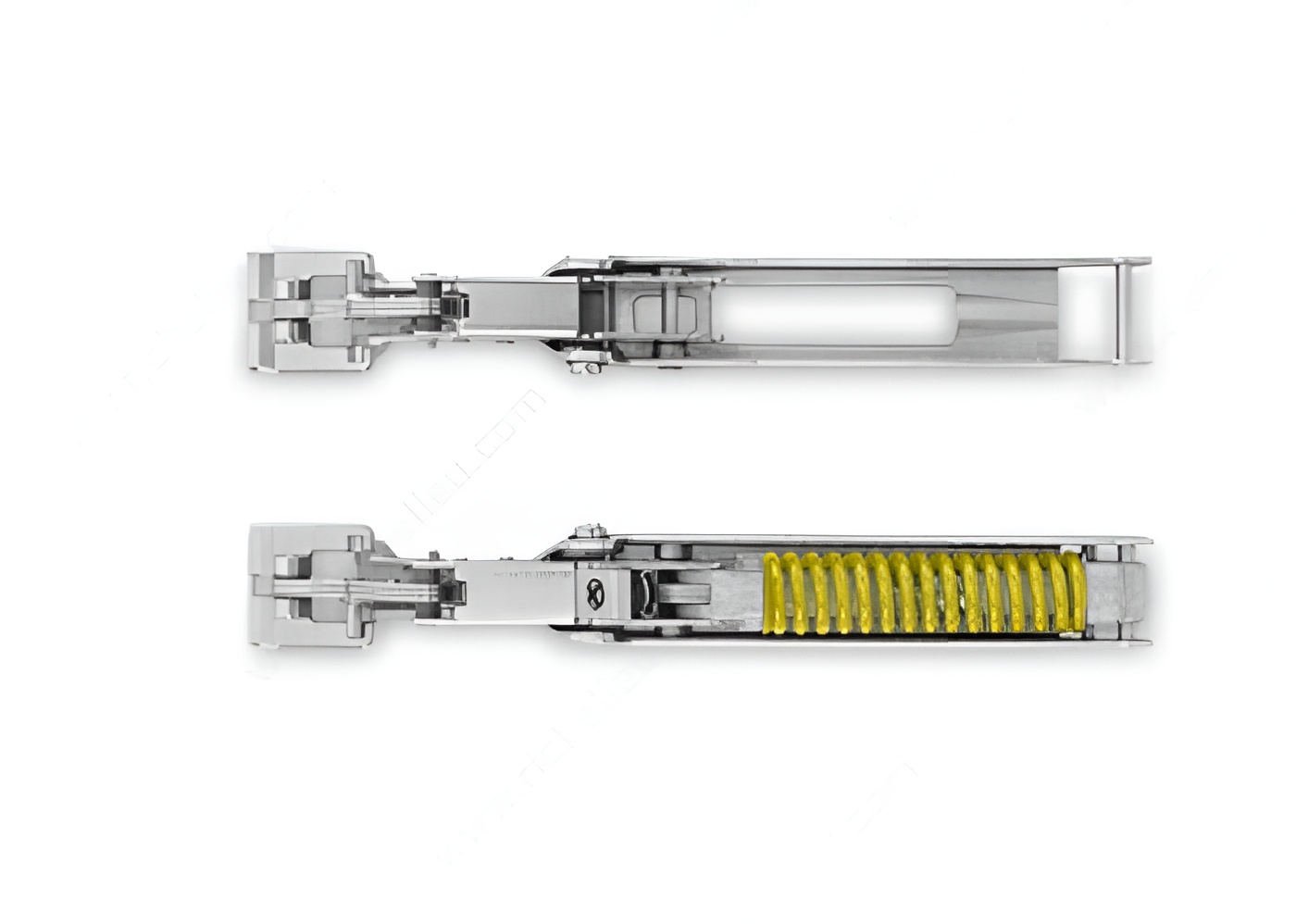

Wind is a new innovative lift door system for flap doors. It stands out for its compact size, elegance and discretion. Thanks to its small size, it takes up minimal space, which makes it ideal for flap doors that are common in kitchens. The Wind Lift System contains an integrated damping system, for a soft closing or a push-to-open system for doors without a handle.
- Opening pressure mechanism (Push series)
- Door thickness - maximum: 28 mm (11/8"), minimum: 16 mm (5/8")
- Overlay from 16 mm to 20 mm
- Drilling of the door from 3 mm to 7 mm of the edge
- Depth adjustment: -1 mm, +3 mm
- Lateral adjustment: +2 mm, -2 mm
- Height adjustment: +2 mm, -2 mm
Attributes
Brand: Salice
Door Height: 220 to 610 mm
Door Type: Wood Door
Hinge Opening Angle: +94°
Load Capacity: 1.4 to 7.2 kg
Opening Angle: 94°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 801 to 1 584
Product #: FRAKFEPDSN9
Product number: FRAKFEPDSN9
Product №: FRAKFEPDSN9
System Name: Wind D
Unit: Box
Unit 1: case - 10
Unit 2: case - 10
