Richelieu FRAKFEXDSN9 Wind Lift Soft-Close SystemRichelieu FRAKFEXDSN9 Wind Lift System - Soft-Close offers an innovative solution for flap doors, combining functionality with elegance in a compact design. This system is particularly well-suited for kitchen applications, where space efficiency is paramount. The Wind Lift System features an integrated damping mechanism, ensuring a gentle, soft-close operation that enhances user experience while minimizing noise. Designed for wood doors, this system accommodates door thicknesses ranging from 16 mm (5/8") to 28 mm (11/8"), making it versatile for various cabinet styles. It allows for overlay adjustments from 16 mm to 20 mm and includes precise drilling specifications, supporting edge distances between 3 mm to 7 mm. The system also boasts a range of adjustments, including depth, lateral, and height options, ensuring a perfect fit for your installation needs. With a hinge opening angle of +94°, the FRAKFEXDSN9 facilitates easy access to your cabinets. Its push-to-open mechanism is ideal for handle-less designs, streamlining the aesthetic of your kitchen. This system is part of the Wind D series and is designed to ship conveniently via UPS. Elevate your cabinetry with the Richelieu Wind Lift System, where style meets practicality.
Wind Lift System - Soft-Close

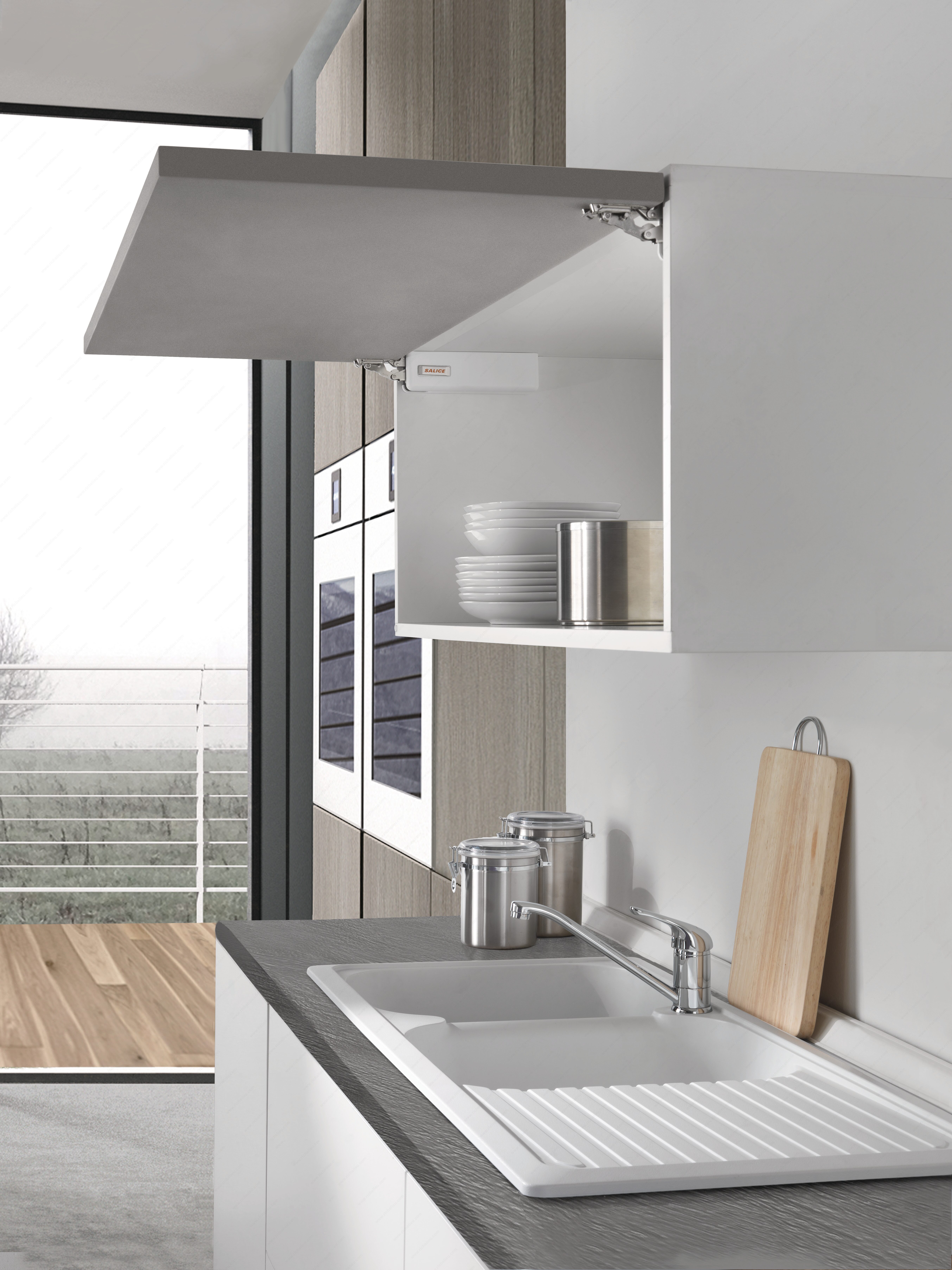

Wind is a new innovative lift door system for flap doors. It stands out for its compact size, elegance and discretion. Thanks to its small size, it takes up minimal space, which makes it ideal for flap doors that are common in kitchens. The Wind Lift System contains an integrated damping system, for a soft closing or a push-to-open system for doors without a handle.
- Opening pressure mechanism (Push series)
- Door thickness - maximum: 28 mm (11/8"), minimum: 16 mm (5/8")
- Overlay from 16 mm to 20 mm

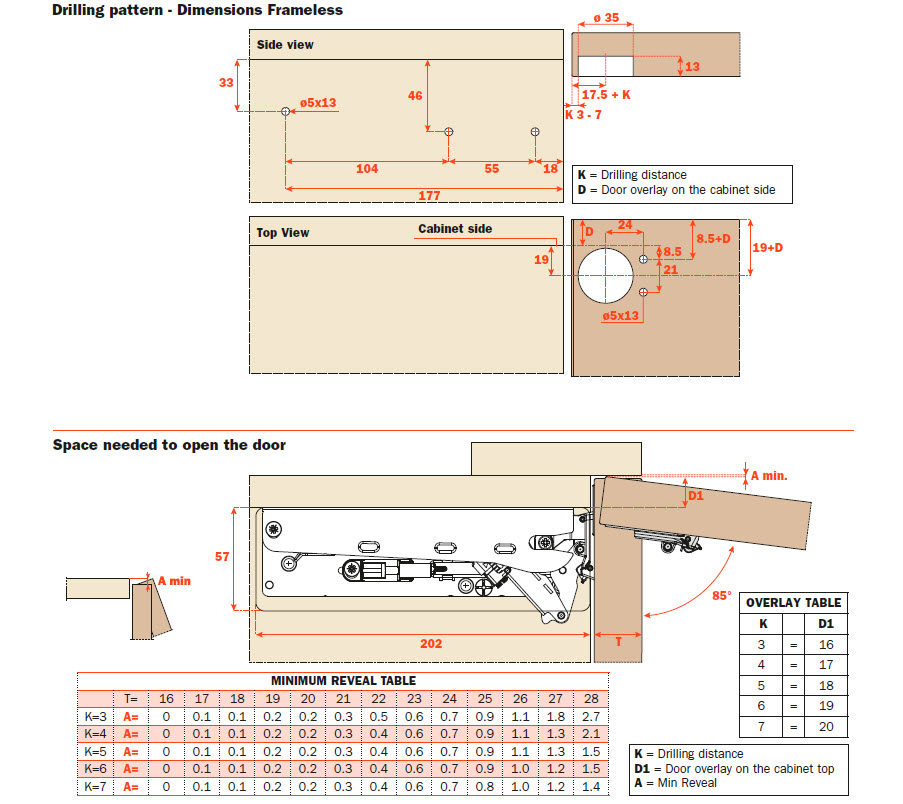

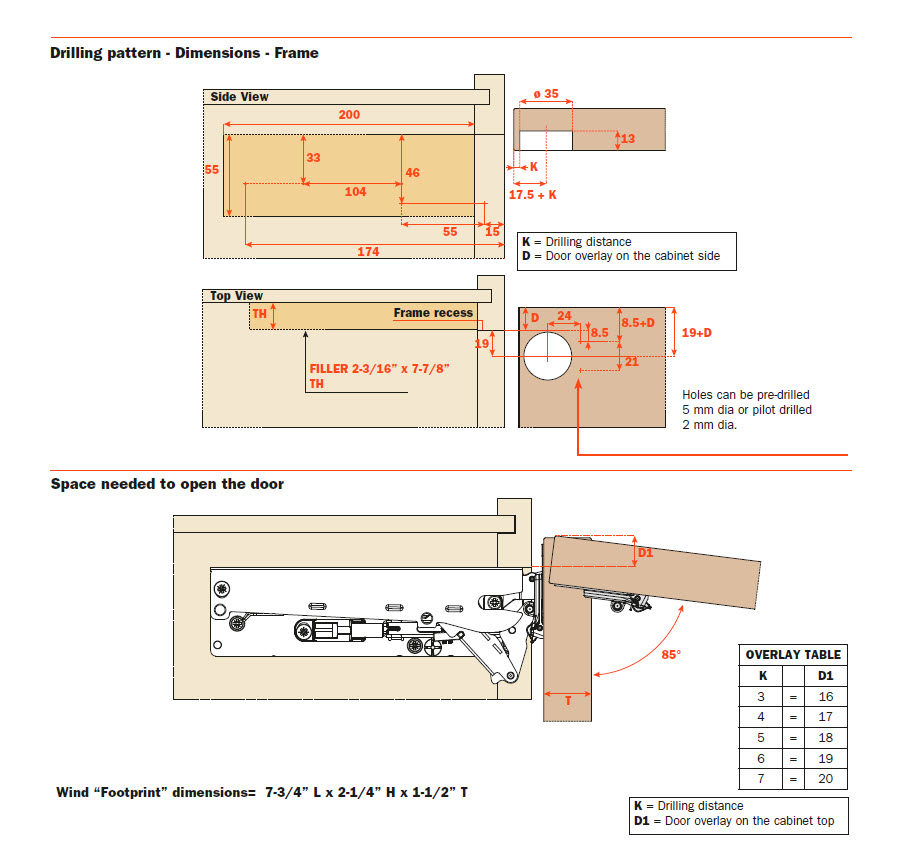

- Drilling of the door from 3 mm to 7 mm of the edge
- Depth adjustment: -1 mm, +3 mm
- Lateral adjustment: +2 mm, -2 mm
- Height adjustment: +2 mm, -2 mm
Attributes
Brand: Salice

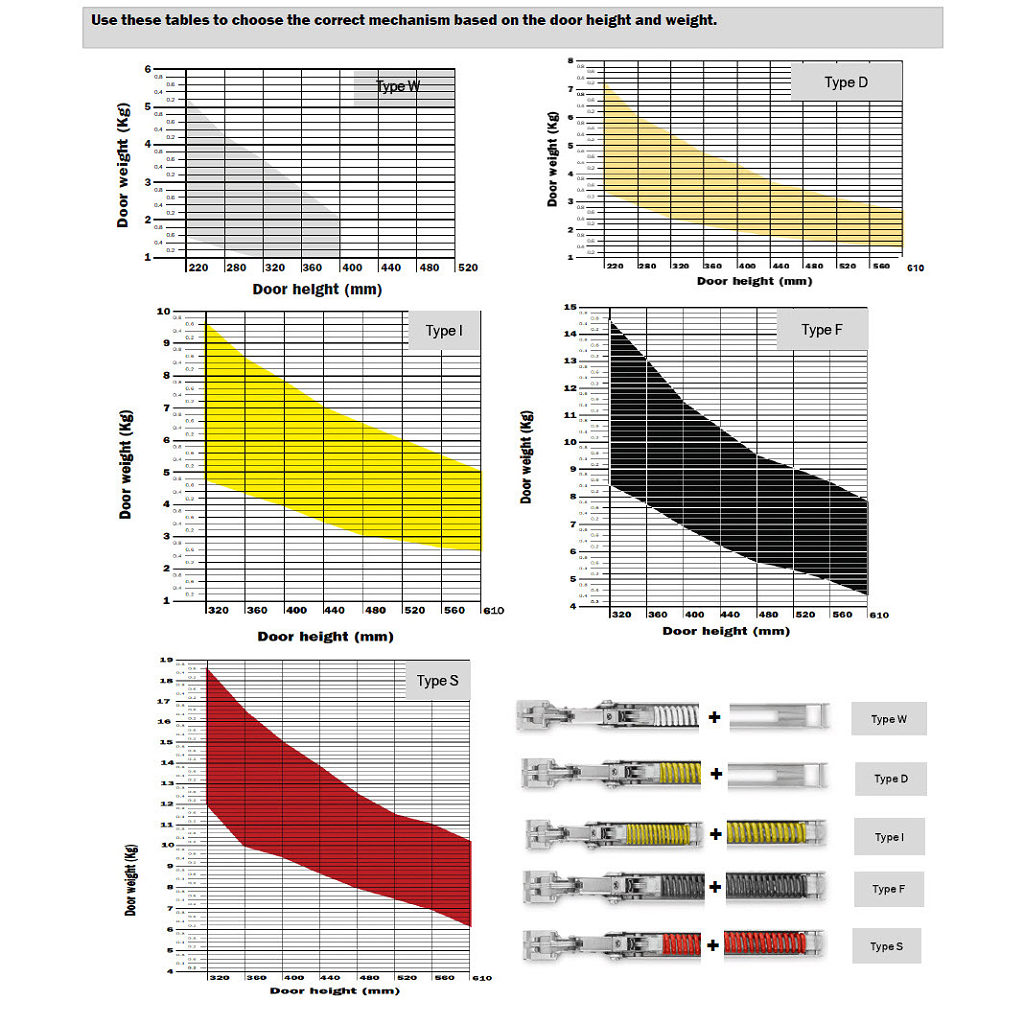

Door Height: 220 to 610 mm
Door Type: Wood Door
Hinge Opening Angle: +94°
Load Capacity: 1.4 to 7.2 kg
Opening Angle: 94°
Opening Types: Lift-Up Opening
Opening Types NEW: Lift-Up Opening
Power Factor: 801 to 1 584
Product #: FRAKFEXDSN9
Product number: FRAKFEXDSN9
Product №: FRAKFEXDSN9
System Name: Wind D
System Type: Wind D
Unit: Box
Unit 1: case - 10
Unit 2: case - 10
