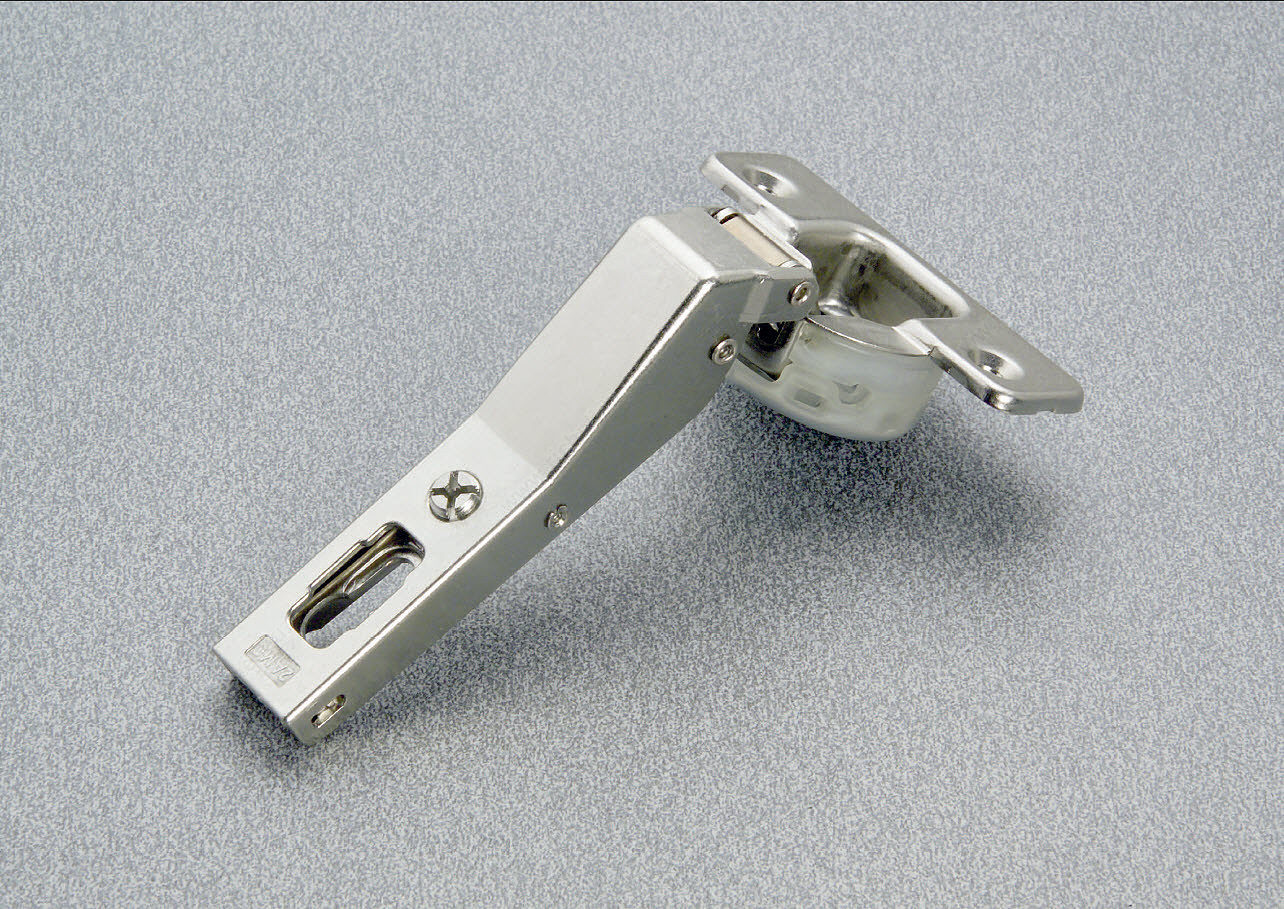

Richelieu H045C2PBV99 Series 100 Concealed Hinge 45 is designed for those seeking seamless functionality in cabinet installations. This hinge allows for a door opening angle of +45°, making it ideal for corner and bi-fold applications. Crafted to accommodate door thicknesses ranging from 3/4 to 1 3/8 inches, it ensures a snug fit for various cabinetry styles. The hinge features a durable nickel finish that not only enhances its aesthetic appeal but also provides resistance to wear and corrosion. With a spring closing mechanism, it guarantees smooth and reliable operation, elevating the user experience. The screw-on fixing type simplifies installation, providing a secure attachment to the door and frame. For optimal performance, the hinge requires a milling depth of 15/32 inches and a milling diameter of 1 3/8 inches, making it suitable for standard door applications. The H045C2PBV99 hinge is part of Richelieu’s stock production line, allowing for quick shipping via UPS. Whether you’re a building professional or a knowledgeable homeowner, the Richelieu H045C2PBV99 Series 100 Concealed Hinge 45 is an excellent choice for enhancing your cabinetry with style and efficiency.
200 Series - Positive Angled Hinges 94 for Thick Doors
Brand: Salice
Cabinet Angle: +45°
Closing Mechanism: Soft-Closing
Diameter: 1 3/8 in*

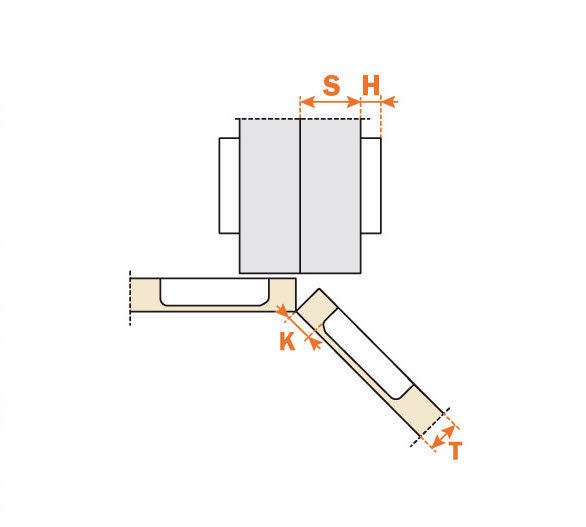

Door Position: Corner / Bi-Fold
Door Thickness: 19 to 35 mm
Drilling Distance: 1/8 to 11/32 in*
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +45°
Mechanism: Spring Closing
Milling Depth: 12 mm
Milling Diameter: 35 mm
Product #: H045C2PBV99
Product number: H045C2PBV99
Product №: H045C2PBV99
Production Time: Stock
Series: 200 Series
Unit 1: case - 150
Use Type: Standard Door
