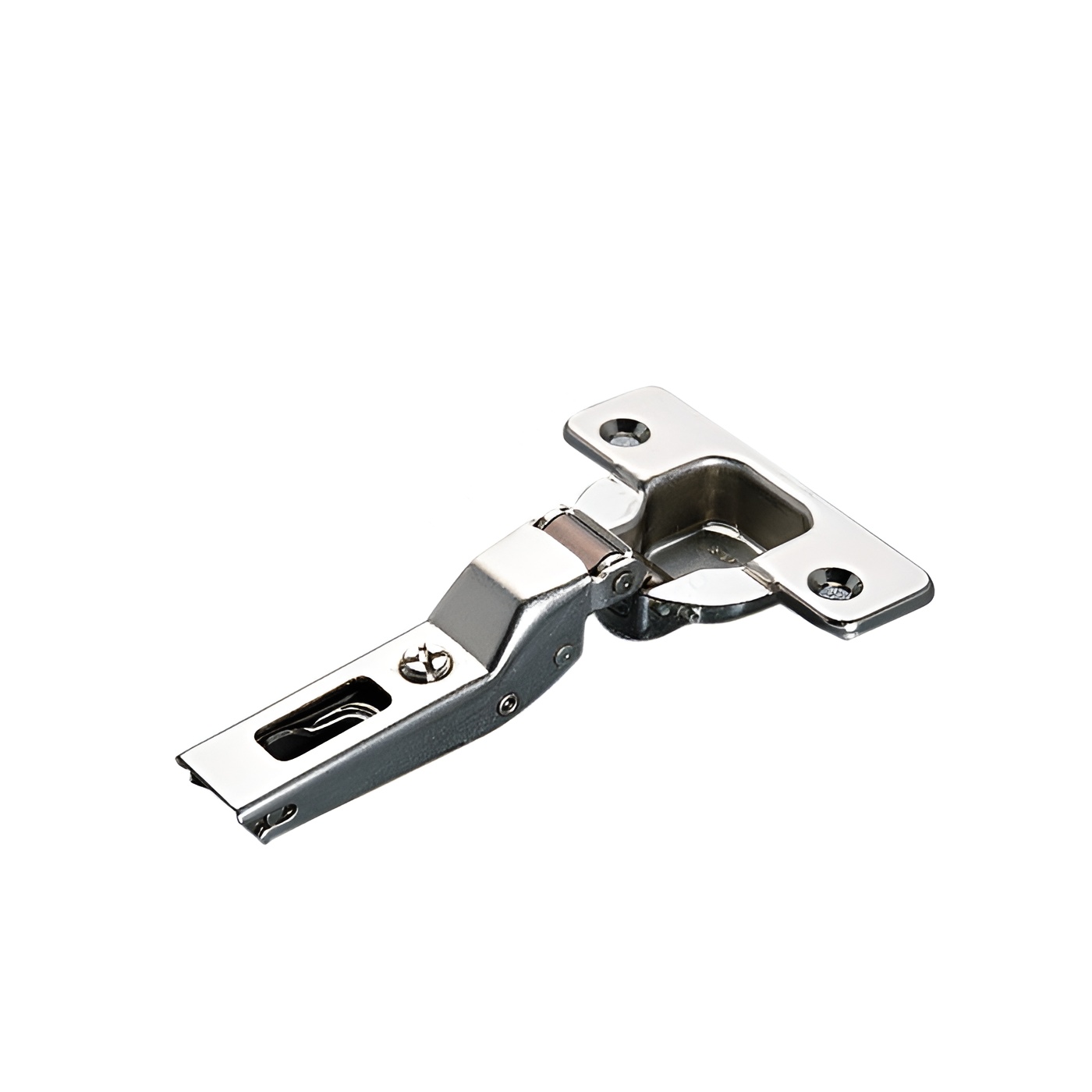

Richelieu H094CFA5P99 Series 200 Concealed Hinge offers a sophisticated solution for those in need of concealed hinges, particularly in frameless cabinet applications. This hinge is designed with versatility in mind, featuring independent and compensation adjustments that ensure precise alignment and operation. With a robust load capacity of 10 lbs, the hinge supports thick doors while allowing for a generous opening angle of +94°, making it suitable for a variety of design needs. The snap-on mounting system simplifies installation, and it's fully adaptable to all Domi series quick-release mounting plates, enhancing its compatibility with existing setups. Constructed with a nickel finish, the hinge not only provides durability but also adds a sleek touch to any cabinetry. Its milling depth of 5/8 inch and diameter of 1 9/16 inches ensure it fits seamlessly into your cabinetry projects. The overlay measurement of 0.0781 inches allows for a clean and unobtrusive look when doors are closed. Whether you're a building professional or a knowledgeable homeowner, the Richelieu H094CFA5P99 Series 200 Concealed Hinge is an exceptional choice for achieving minimalist aesthetics without sacrificing functionality.
F Series - Concelead Hinges 94 for Thick Doors up to 40 mm
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 21/32 in*
Door Position: Inset
Door Thickness: 3/4 to 1 9/16 in*

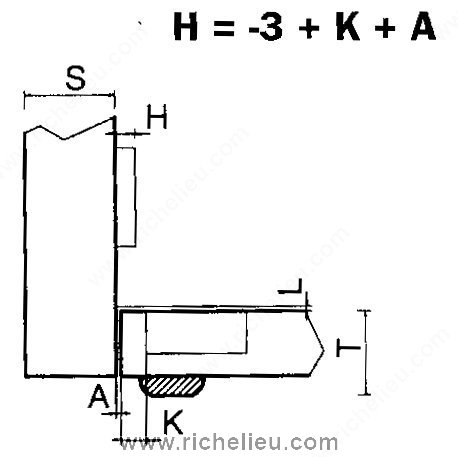

Drilling Distance: 3 to 15 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +94°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 15.5 mm
Milling Diameter: 40 mm
Overlay: 0.0781 in
Product #: H094CFA5P99
Product number: H094CFA5P99
Product №: H094CFA5P99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Thick Door
