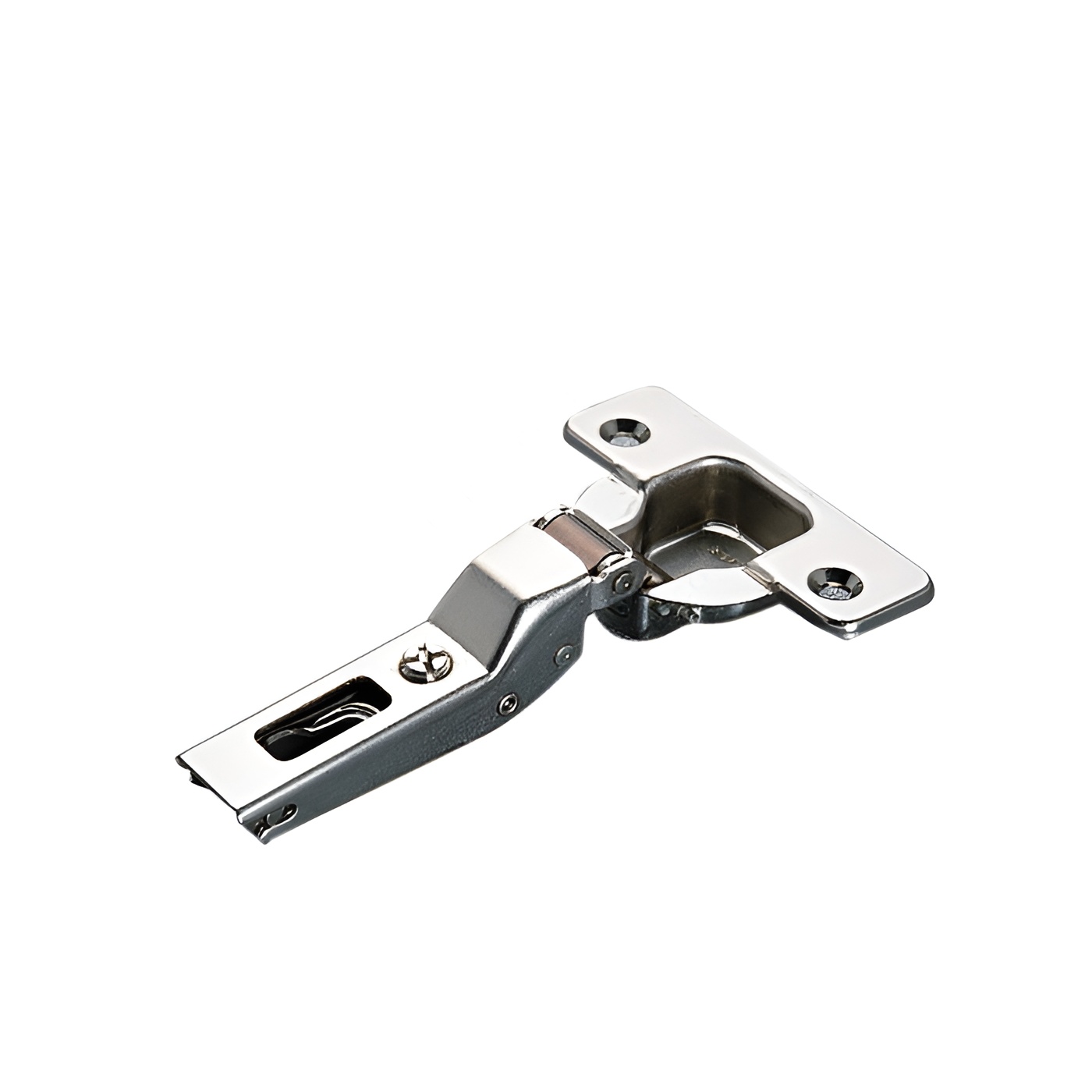

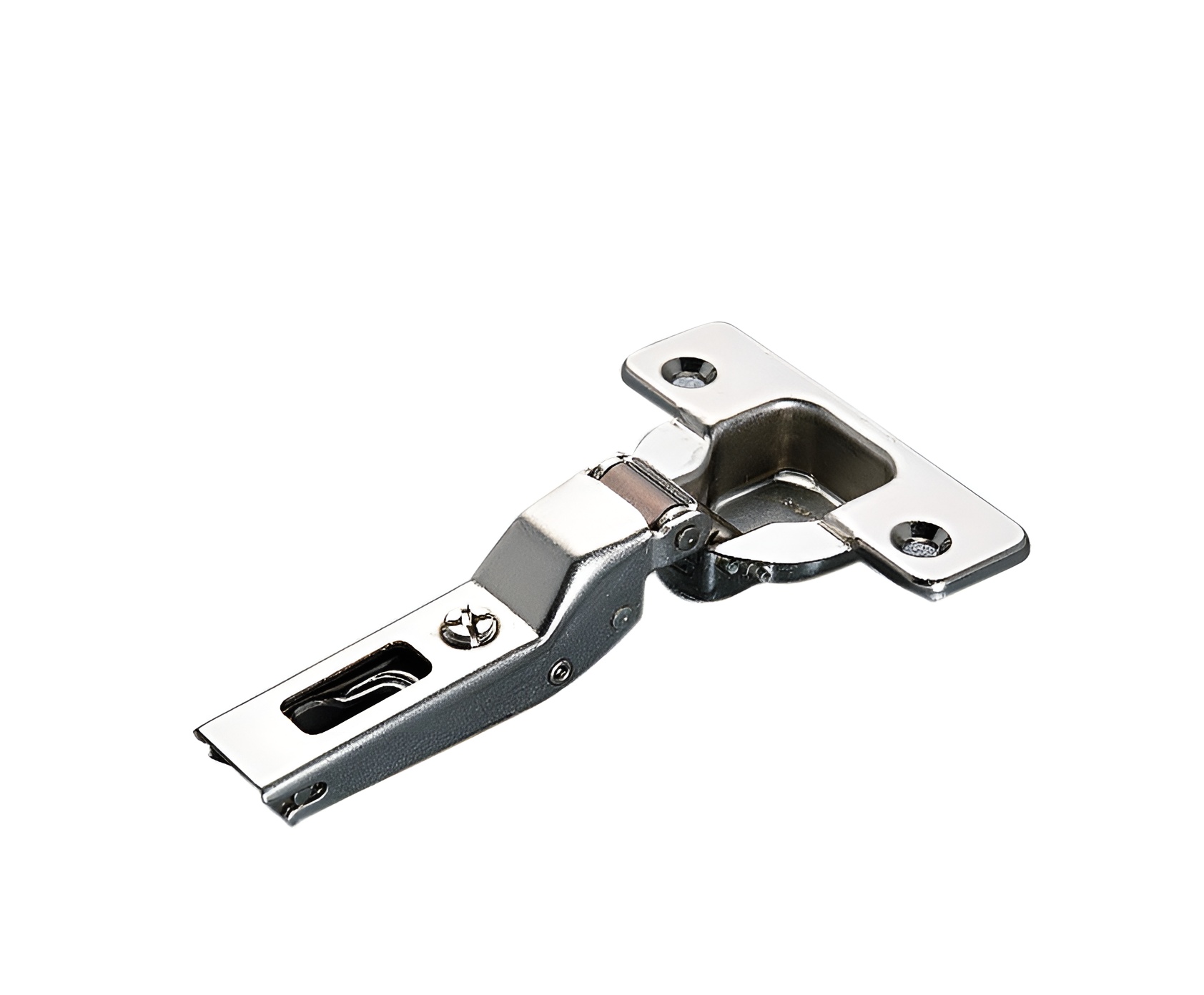

Richelieu H110C276G99 Series 200 Concealed Hinges - 110 offer a sophisticated solution for projects requiring concealed hinges. Designed with versatility in mind, these hinges feature independent and compensation adjustments, ensuring a precise fit for your cabinetry. The safety stop device enhances functionality, accommodating both symmetrical and asymmetrical door alignments. With a hinge opening angle of +110°, they provide ample access while maintaining a sleek appearance. These hinges are engineered for quick assembly, thanks to their snap-on mounting design. They are compatible with all Domi series quick-release mounting plates, simplifying installation and replacement processes. Specifically crafted for half overlay doors, the H110C276G99 hinges accommodate door thicknesses ranging from 5/8 to 1 1/32 inches. The milling depth of 7/16 inches and diameter of 1 3/8 inches ensure a secure fit, while an overlay of 11/32 inches allows for seamless integration into cabinetry. Finished in nickel, these hinges not only perform well but also add a touch of elegance to any project. Whether for new constructions or renovations, Richelieu’s Series 200 hinges promise durability and style, making them an excellent choice for standard door applications.
200 Series - Concealed Hinge 110
Brand: Salice
Cabinet Type: Frameless
Closing Mechanism: Spring Closing
Crank: 11/32 in*
Diameter: 1 3/8 in*
Door Position: Half Overlay
Door Thickness: 5/8 to 1 1/32 in*
Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Quick Assembly
Hinge Opening Angle: +110°
Load Capacity: 10 lb
Mechanism: Spring Closing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.3125 in
Product #: H110C276G99
Product number: H110C276G99
Product №: H110C276G99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
