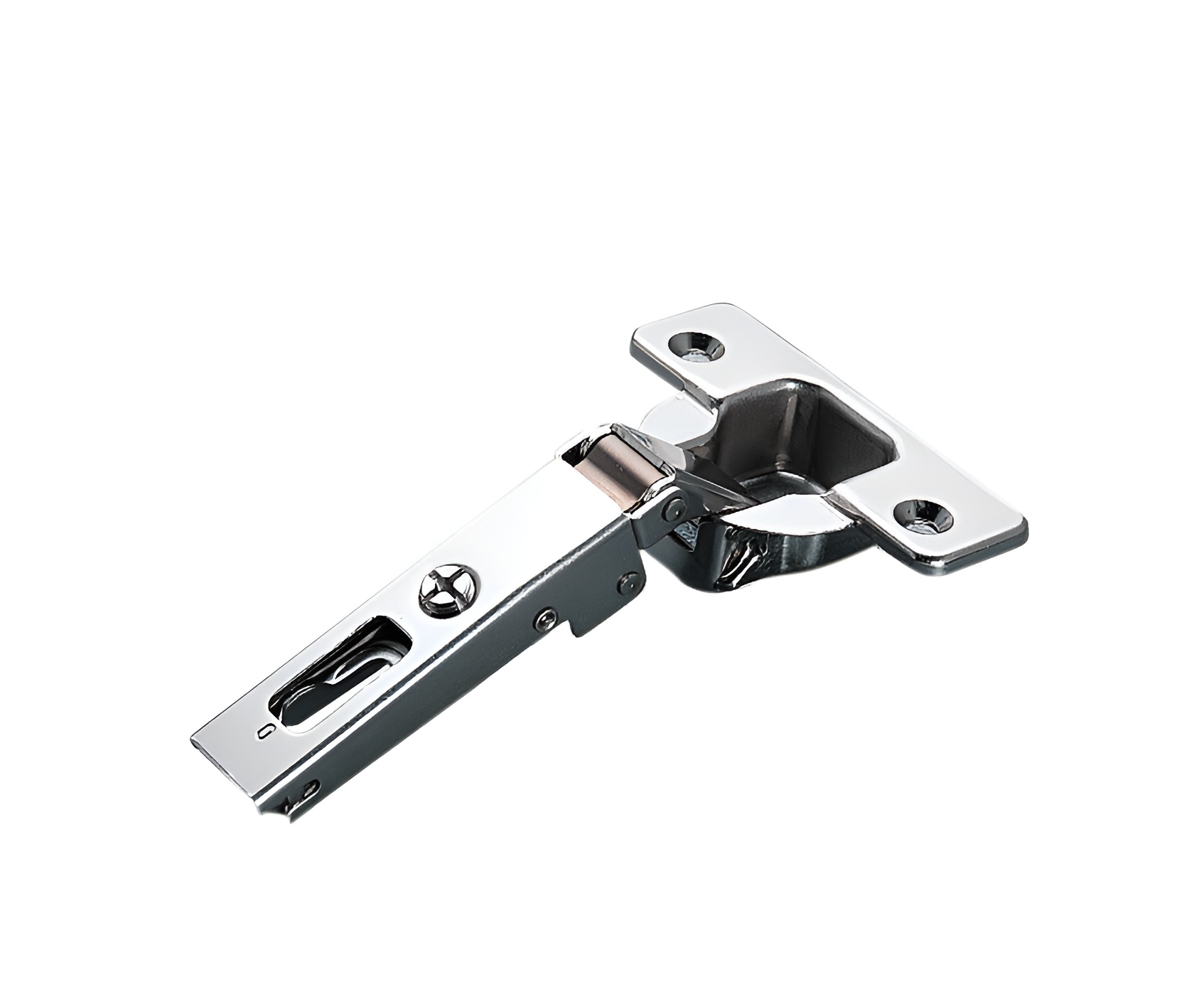

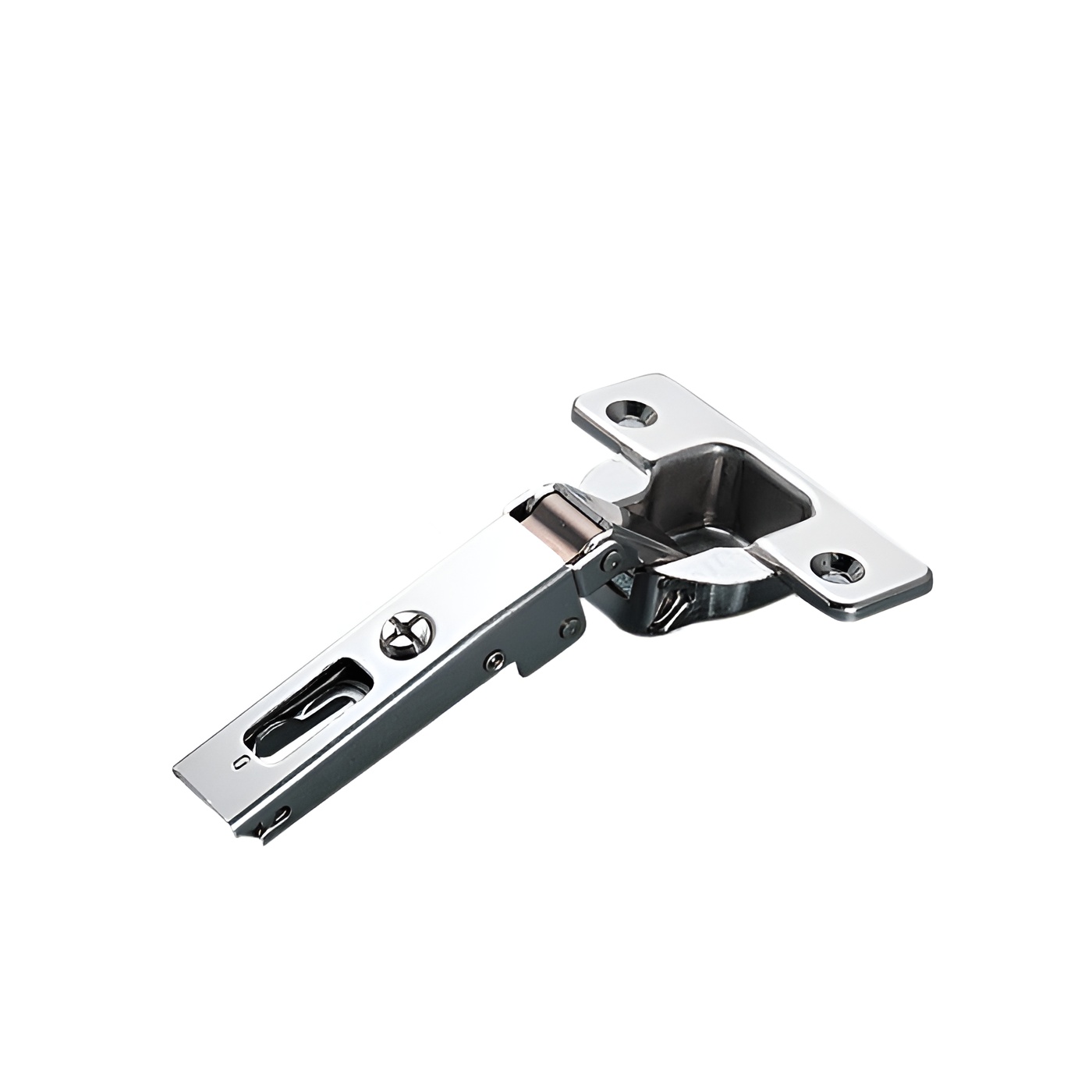

Richelieu H120C2R8A99 Series 200 Concealed Hinge 120 offers an advanced solution for frameless cabinet applications, ensuring both functionality and aesthetic appeal. Designed by Salice, this integrated hinge system features independent and compensation adjustments, allowing for precise alignment and effortless installation. With a robust construction that supports a load capacity of 10 lbs, this hinge is engineered to handle standard doors with a full overlay style. The hinge opens to an impressive +120° angle, providing ample access and convenience. Its snap-on mounting system facilitates quick and easy installation, while the safety stop device-compatible with both symmetrical and asymmetrical configurations-adds an extra layer of reliability. The Richelieu hinge is adaptable to all Domi series quick-release mounting plates, enhancing its versatility for various projects. Crafted in a sleek nickel finish, the H120C2R8A99 hinge not only performs well but also complements modern cabinetry aesthetics. The drilling distance ranges from 1/8 to 1/4 inches, making it a flexible choice for different applications. For building professionals seeking dependable hardware, the Richelieu Series 200 Concealed Hinge is an exceptional option that combines quality, functionality, and style.
200 Series - Concealed Hinges 120
Brand: Salice
Cabinet Thickness: 5/8 to 1 1/32 in*
Cabinet Type: Frameless
Closing Mechanism: Free Swing
Crank: 0 in*
Diameter: 1 3/8 in*
Door Position: Full Overlay

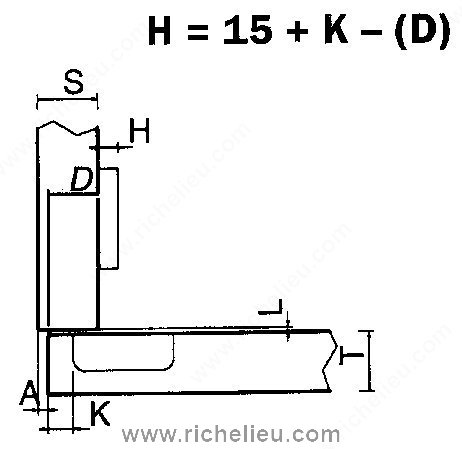

Drilling Distance: 3 to 6 mm
Finish: Nickel
Fixing Type: Dowel
Hinge Opening Angle: +120°
Load Capacity: 10 lb
Mechanism: Free Swing
Milling Depth: 7/16 in*
Milling Diameter: 1 3/8 in*
Overlay: 0.75 in
Product #: H120C2R8A99
Product number: H120C2R8A99
Product №: H120C2R8A99
Production Time: Stock
Series: 200 Series
Unit 1: case - 300
Use Type: Standard Door
