Richelieu OLDCN110726D DCN Cam Lock offers a robust security solution ideal for single drawers and cabinet doors. Manufactured by Olympus Lock Inc., this cam lock features a 1-inch face diameter and a satin chrome finish that combines durability with an elegant appearance. The lock is designed with a pin mechanism, ensuring a very high security level, and meets ANSI/BHMA Grade 1 standards for reliability. One of the standout features of the OLDCN110726D is its rekeyable and field-reversible design, allowing for easy maintenance and adaptability. The lock includes a working top slide mechanism and a retainer staple, making rekeying straightforward. The anti-rotation plate effectively traps the hex nut, preventing any twisting within the installation hole. With a cam length of 1-1/4 inches and compatibility with panel thicknesses ranging from 3/4 inch to 1-3/8 inches, this lock is versatile for various applications. It accommodates both left and right-hand positions, providing flexibility in installation. The lock operates with a 180-degree key turn and utilizes a keyed alike #107 key type, further enhancing its user-friendly design. Enhance your cabinetry with Richelieu's OLDCN110726D, where security meets convenience.

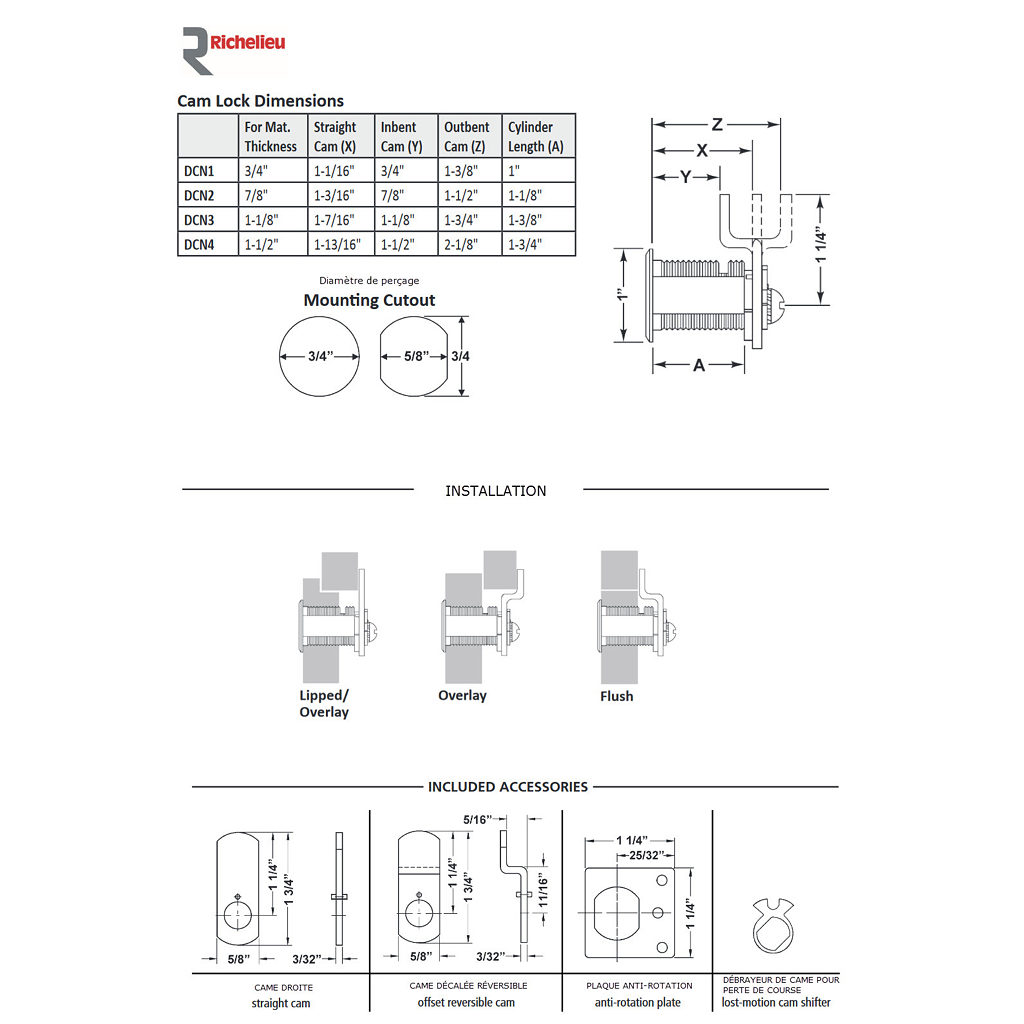

DCN Cam Lock 1", 1-1/8", 1-3/8" or 1-3/4"
Application: Drawer Lock, Cabinet Doors
Body Material: Zinc Die-Cast
Brand: Olympus Lock Inc.
Cam Length (from center): 1 1/4 in
Cylinder Diameter: 3/4 in
Cylinder Length: 1 in
Cylinder Type: Zinc die cast, Pin Tumbler
Finish: Satin Chrome
Furniture Material: Wood
Key Turn Degree: 180°
Key Type: Keyed Alike #107
Material: Zinc die cast
Mechanism Type: Pin
Panel Thickness: Max. 3/4 in
Position: Left & Right
Product #: OLDCN110726D
Product number: OLDCN110726D
Product №: OLDCN110726D
Security Level: Very High
Series: DCN
Standards and Certifications: ANSI/BHMA Grade 1
Types of Locks: Cam Locks
Use: Cabinet Doors, Single Drawer
