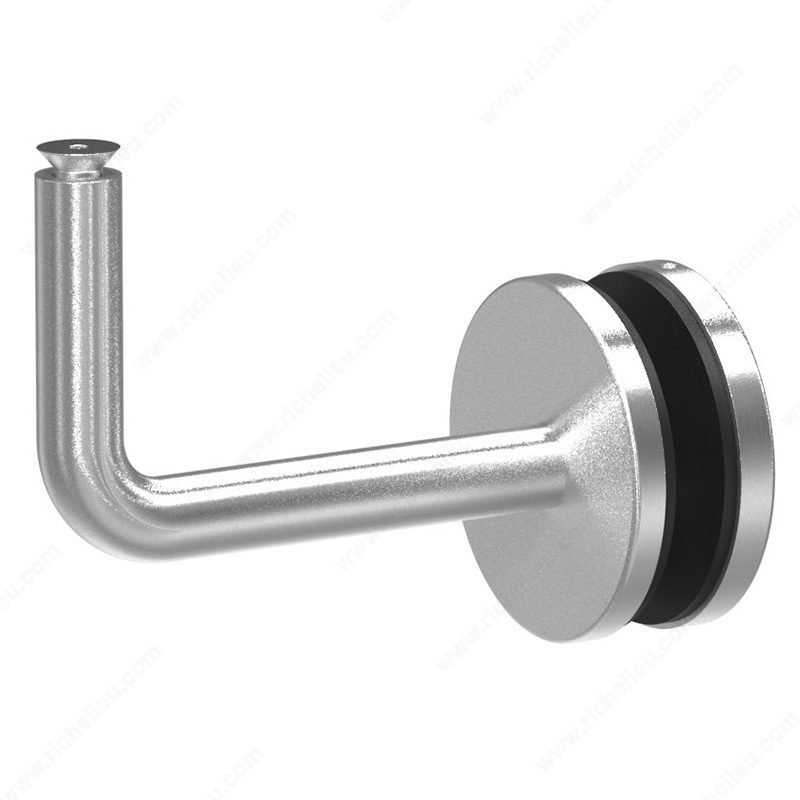

Richelieu SSGF11GM18S Round Glass Mount Fixed Bracket is engineered to provide robust support for handrails mounted on glass panels. Crafted from high-quality Stainless Steel 316, this durable bracket is suitable for both interior and exterior applications, ensuring longevity and resistance to corrosion. Installation is straightforward, as the bracket accommodates handrails with either a round or flat surface, given the appropriate saddle is selected (sold separately). The included screws facilitate easy attachment of the saddle, enhancing the overall user experience. With a fixed adjustment position, this bracket features an arm size of 1/2 inch and a projection of 3 1/8 inches, making it a versatile choice for various handrail designs. The mounting plate measures 2 inches, and the milling diameter ranges from 5/8 to 3/4 inch, allowing for precise installation. The bracket is designed to support safety glass thicknesses between 15/32 and 1 inch, providing a secure and stable connection. For those seeking a reliable and stylish solution for glass-mounted handrails, the Richelieu SSGF11GM18S delivers on both functionality and aesthetic appeal, making it a go-to choice for building professionals and discerning homeowners alike.
RD3 Series - Standard Welded - Glass Mount
Adjustment: Fixed Position
Arm Size: 1/2 in
Category: Brackets
Finish: Stainless Steel
Glass Drilling: Required
Material: Stainless Steel 316
Milling Diameter: 5/8 to 3/4 in
Mounting Plate: 2 in
Mounting Plate Diameter: 2 in
Product #: SSGF11GM18S
Projection: 3 1/8 in
Recommended Location Usage: Interior, Exterior
Rod Diameter: 1/2 in
Saddle: Sold Separately
Safety Glass Thickness: 15/32 to 31/32 in*
Thread Type: M8
Type of Mounting: Glass Mount
