Richelieu WEBKIT1216850 KN Crowder Type C Pocket Door Kit InstructionsRichelieu WEBKIT1216850 KN Crowder Type C Pocket Door Kit is expertly crafted to accommodate a single sliding wood door weighing up to 150 lb (68 kg), making it an ideal solution for both residential and commercial spaces. This kit is designed for 2 x 4 wood construction and comes in two options to fit various door sizes. Choose from the KN400 for doors measuring 30 to 36 inches wide and 80 to 84 inches tall, or the KN400C4896 for larger doors ranging from 36 to 48 inches wide and 96 inches tall. The system features a quick-release spin-wheel device and includes roll form steel uprights to build the pocket area, ensuring a robust installation. With a self-supporting upper running track mounted end to end, this pocket door kit offers flexibility in width and height, which can be easily cut down to fit your specific needs. Cycle tested for durability up to 150,000 cycles, it guarantees long-lasting performance. Additional benefits include a straightforward installation process and the option for a joiner plate for biparting applications. Ideal for bathrooms, bedrooms, offices, and kitchens, the Richelieu WEBKIT1216850 combines functionality with sleek design, allowing doors to be concealed inside the wall for a clean aesthetic.
KN Crowder Type C Pocket Door Kit
The KN Crowder Type C Pocket Door Kit is designed for a single sliding wood door weighing up to 150 lb (68 kg).
Features:
- For 2 x 4 wood construction
- 2 kits to choose from for different door sizes:
- KN400 for door 30 in (762 mm) to 36 in (914.4 mm) wide x 80 in (2032 mm) to 84 in (2133 mm) tall
- KN400C4896 for door 36 in (914.4 mm) to 48 in (1219 mm) wide x 96 in (2438 mm) tall
- Quick-release spin-wheel device

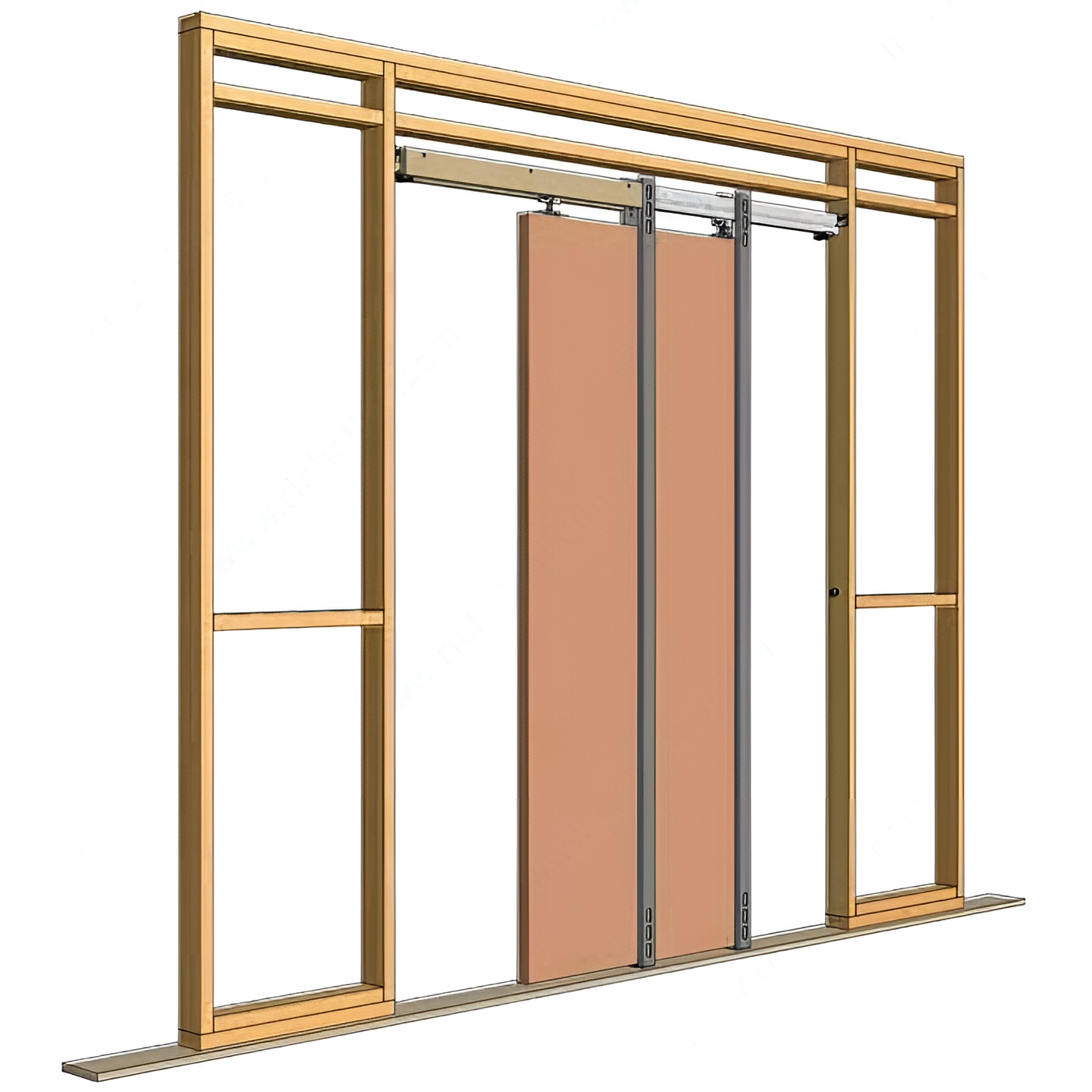

- Includes roll form steel uprights to build pocket area

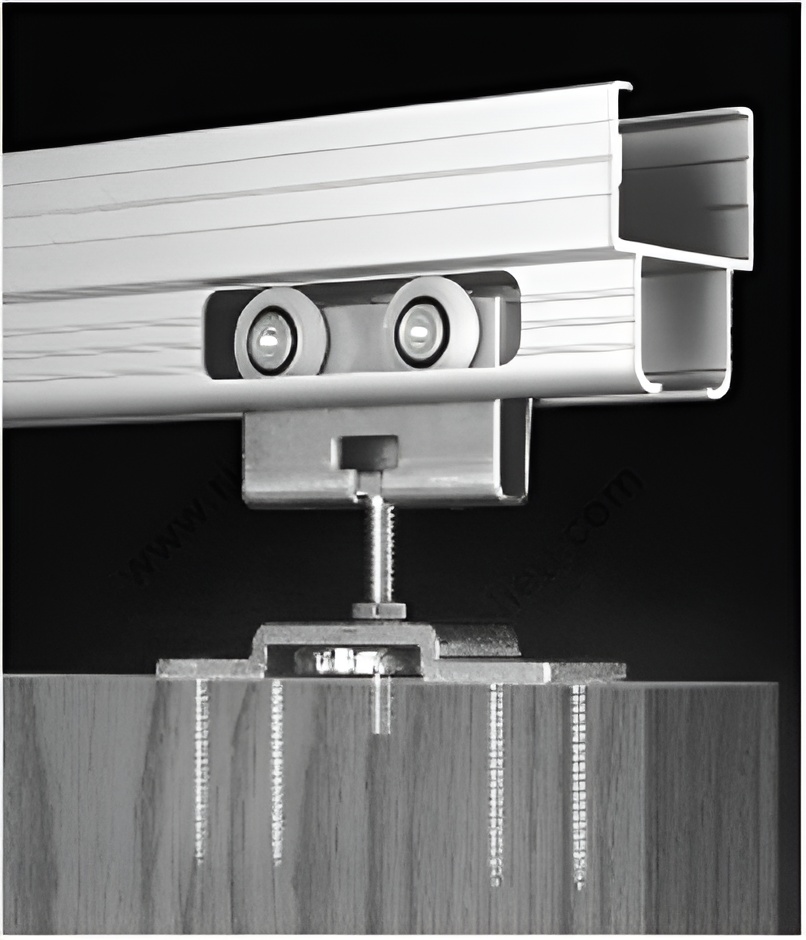

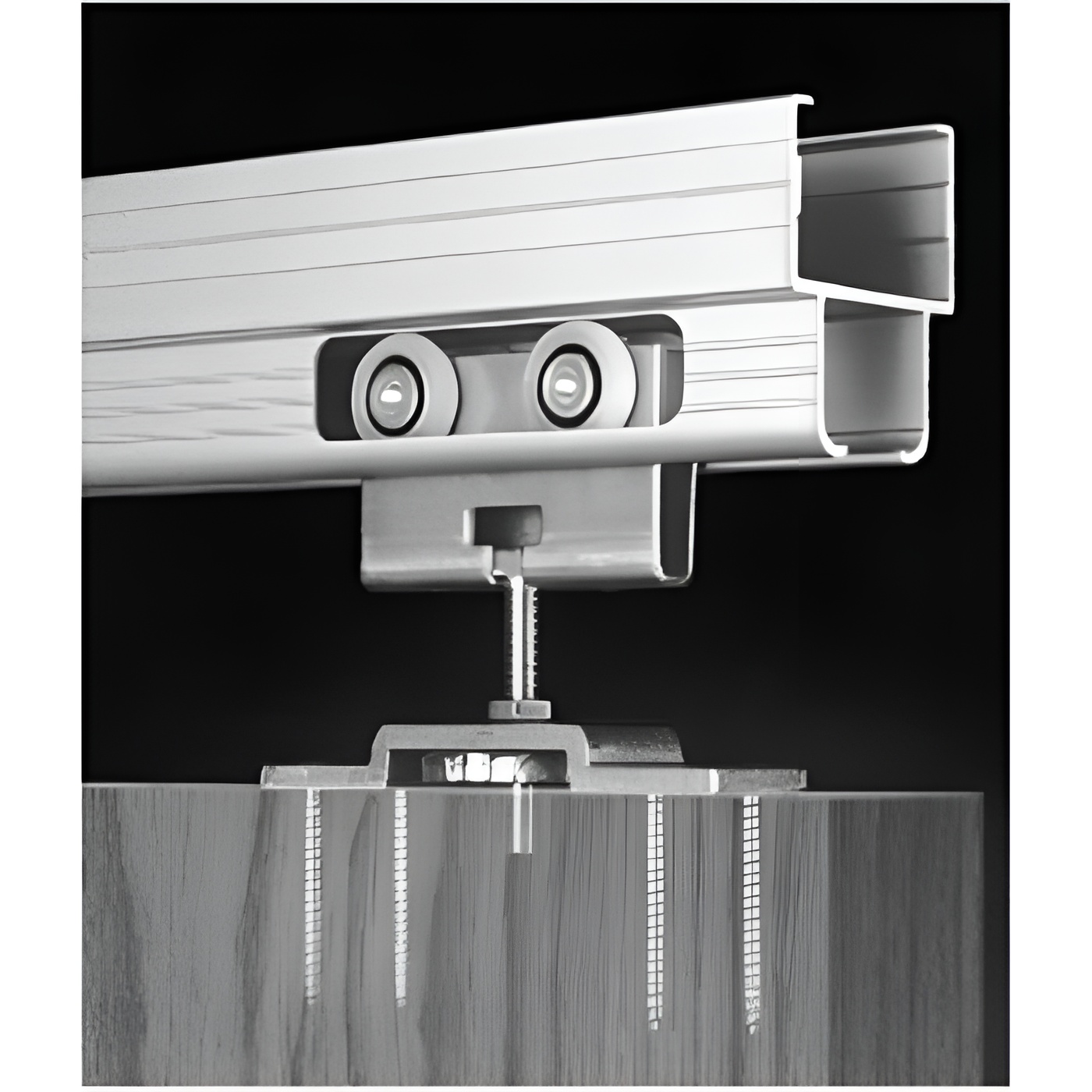

- Self-supporting upper running track mounted end to end
- Width and height can be cut down
- Cycle tested to 150 000 cycles
- Simple and flexible installation
- Optional joiner plate for biparting applications

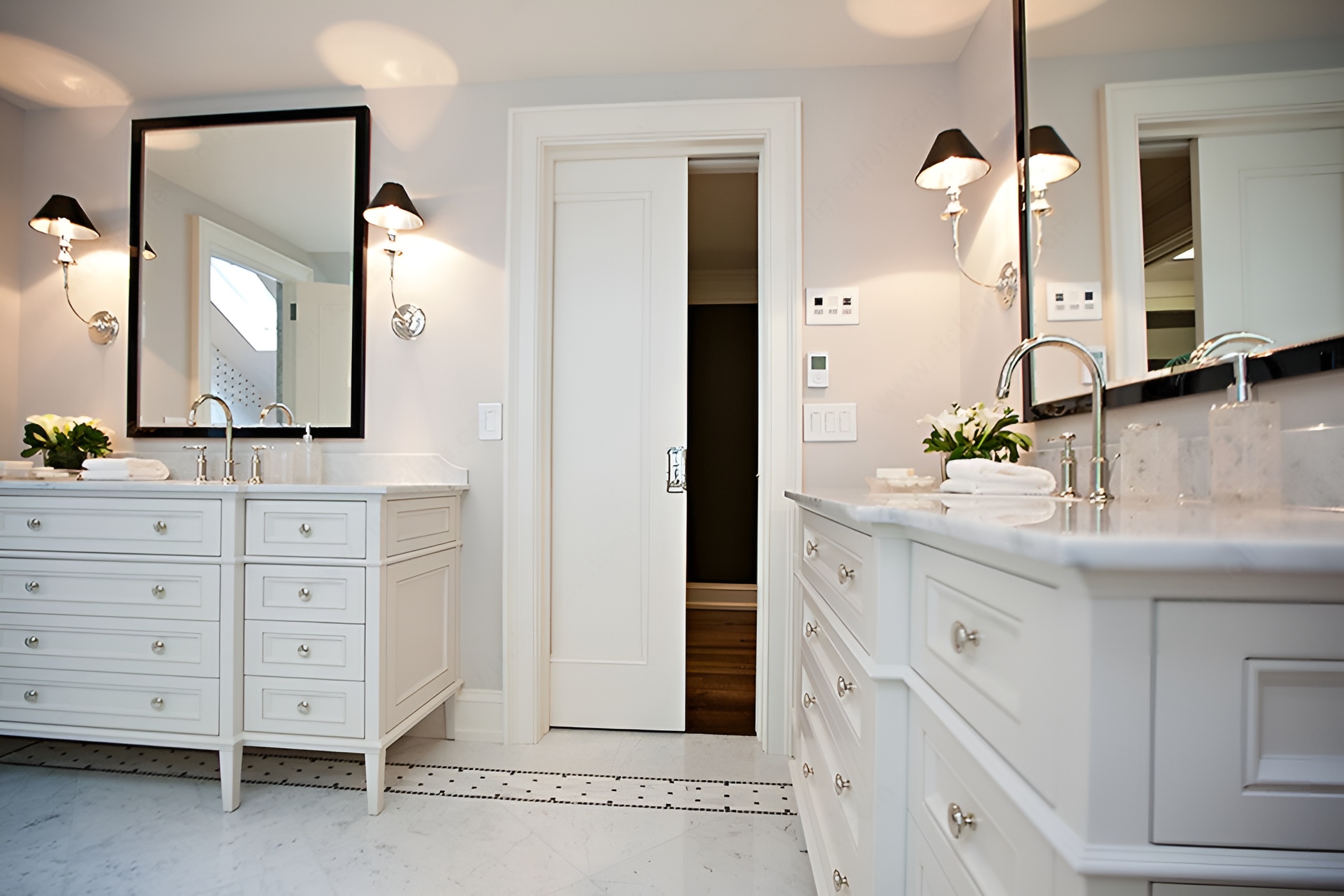

Ideal for residential and commercial door applications for the bathroom, bedroom, office and kitchen and for standard access doors.
Attributes
Adjustable: Yes
Application: Pocket Door
Bottom Guide: No
Brand: K.N. Crowder
Detailed Door Movement: Single Sliding
Door Height: Max. 2 299 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Pocket Door
Door Thickness: 35 to 45 mm
Door Width: 610 to 915 mm
Groove Depth: 0 in
Groove Needed for Guiding System: No
Groove Width at the Bottom of Door: 0 in
Length - Overall Dimensions: 71 57/64 in
Load Capacity: Max. 150 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 71 57/64 in
Product #: WEBKIT1216850
Product number: WEBKIT1216850
Product №: WEBKIT1216850
Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Bracket
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Track Material: Aluminum
Track Mounting: Ceiling Mount
Track type: Box Track
Weight Capacity per Door: Max. 68 kg
