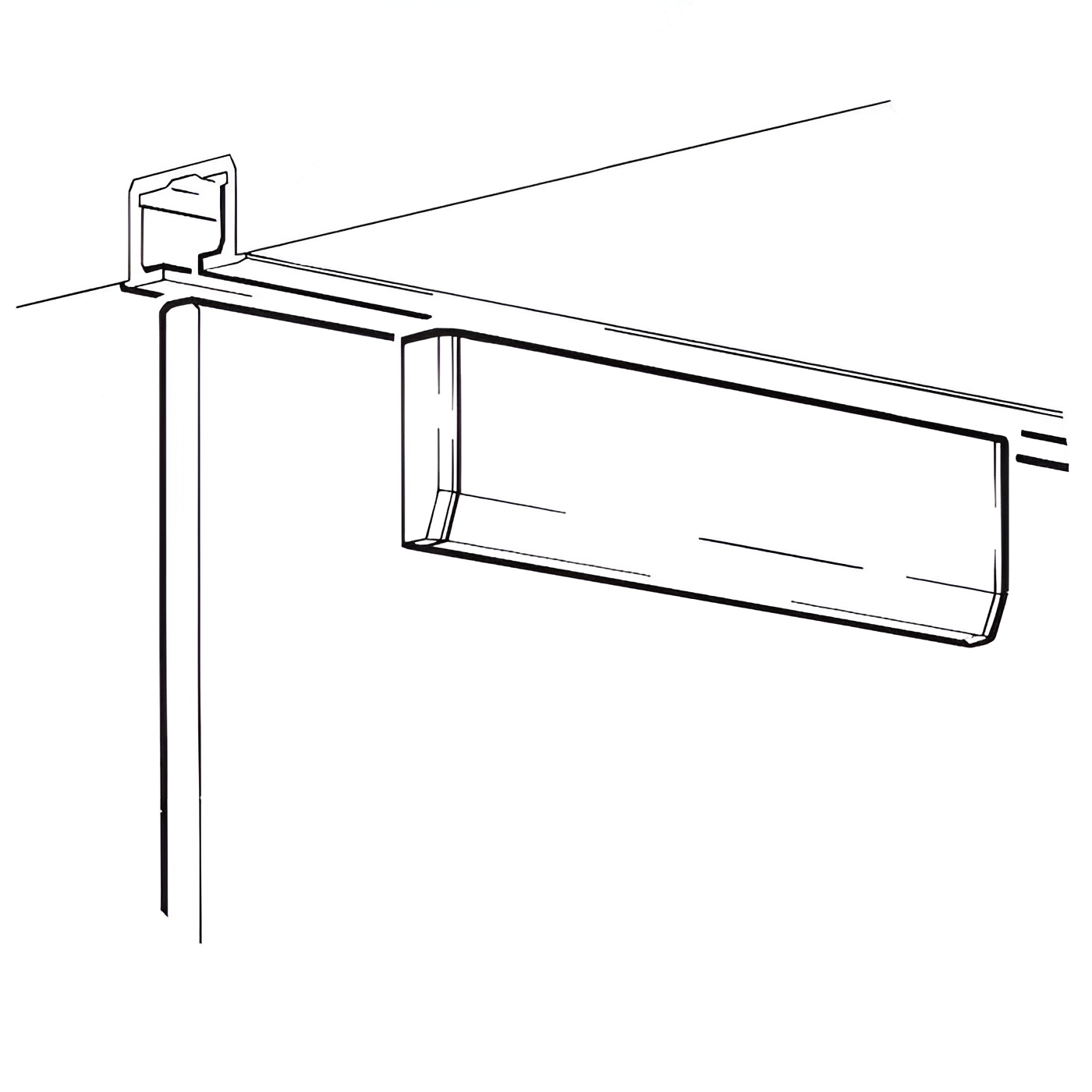

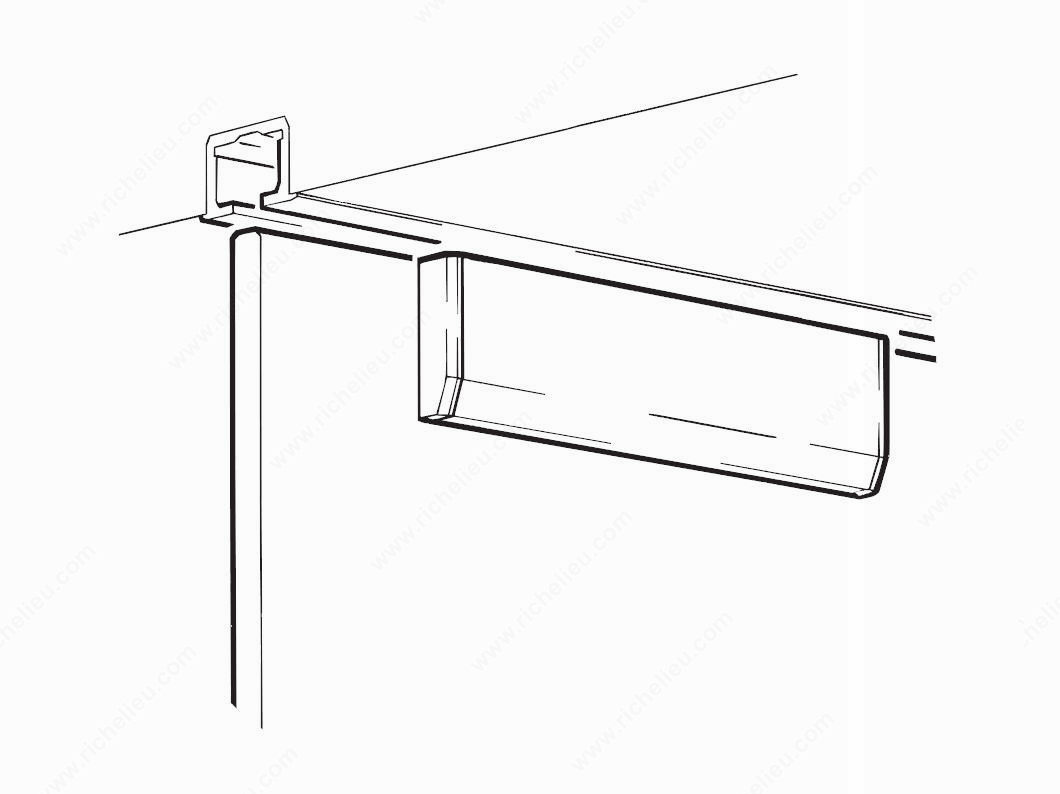

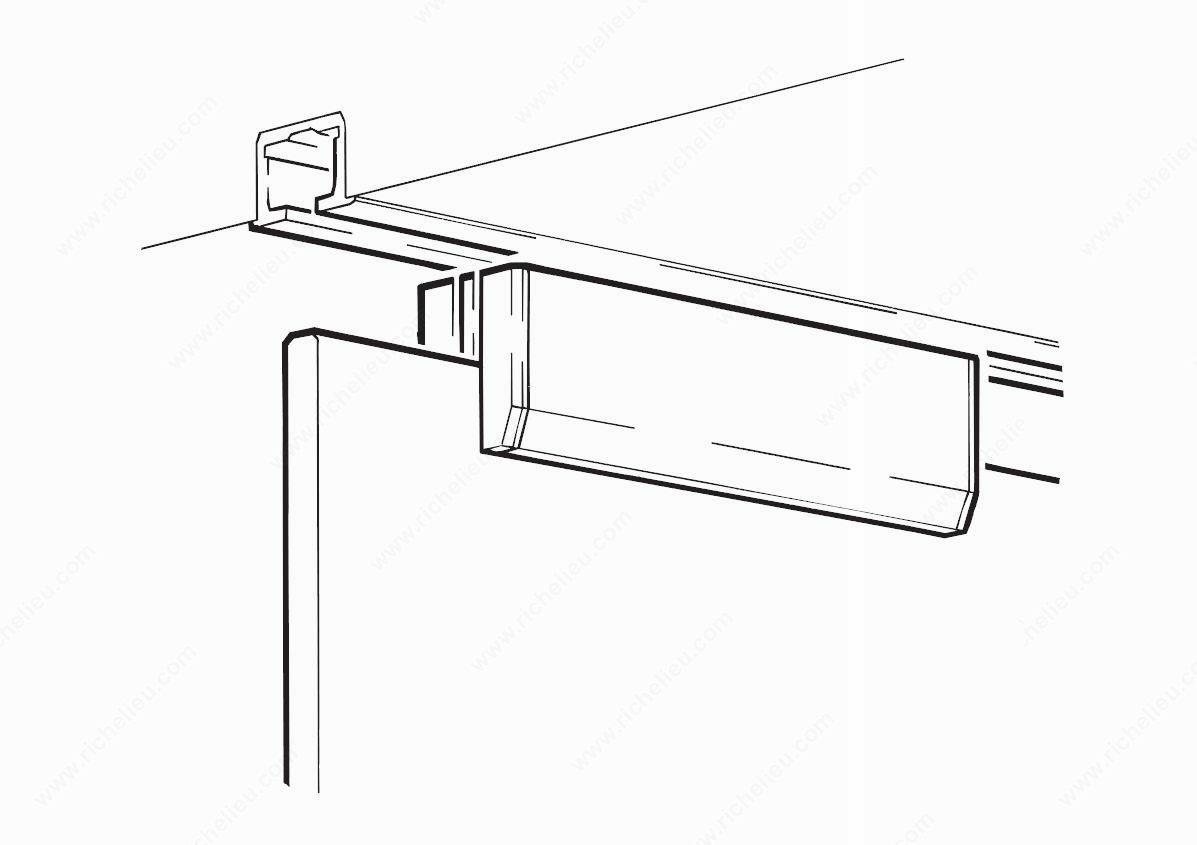

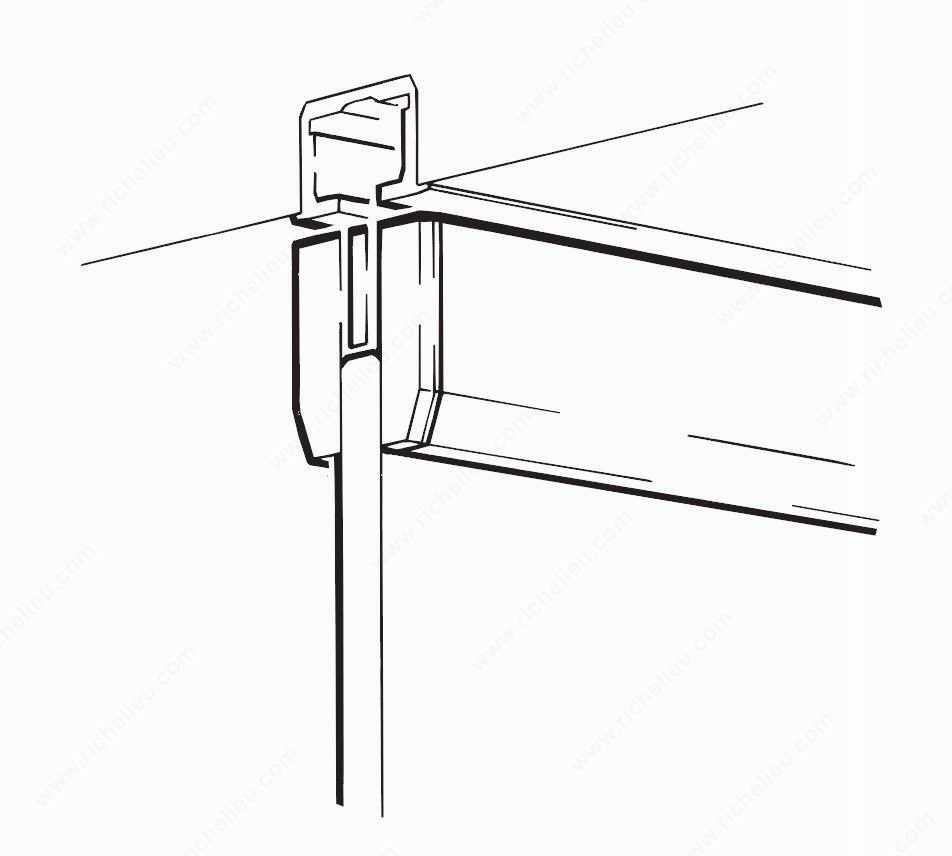

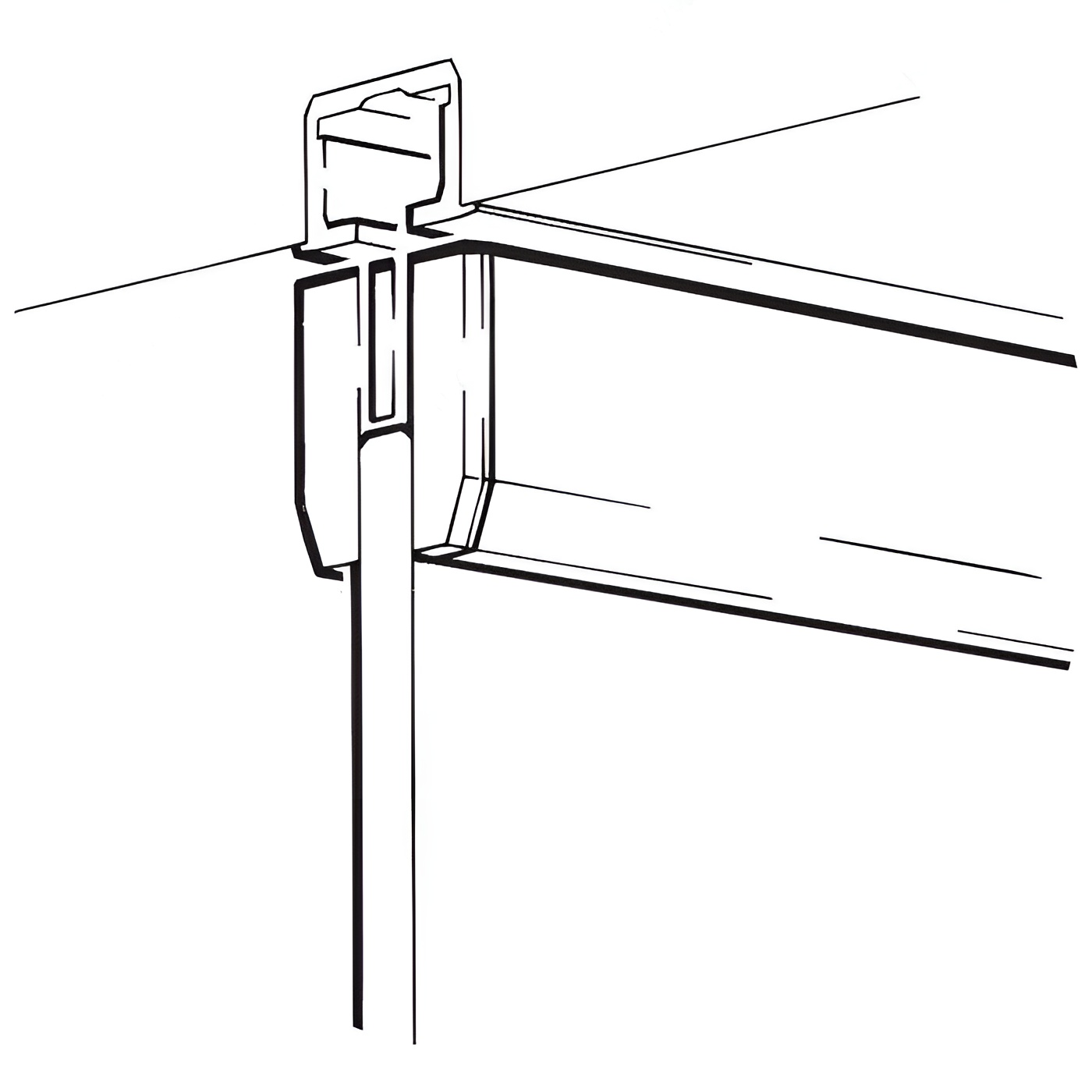

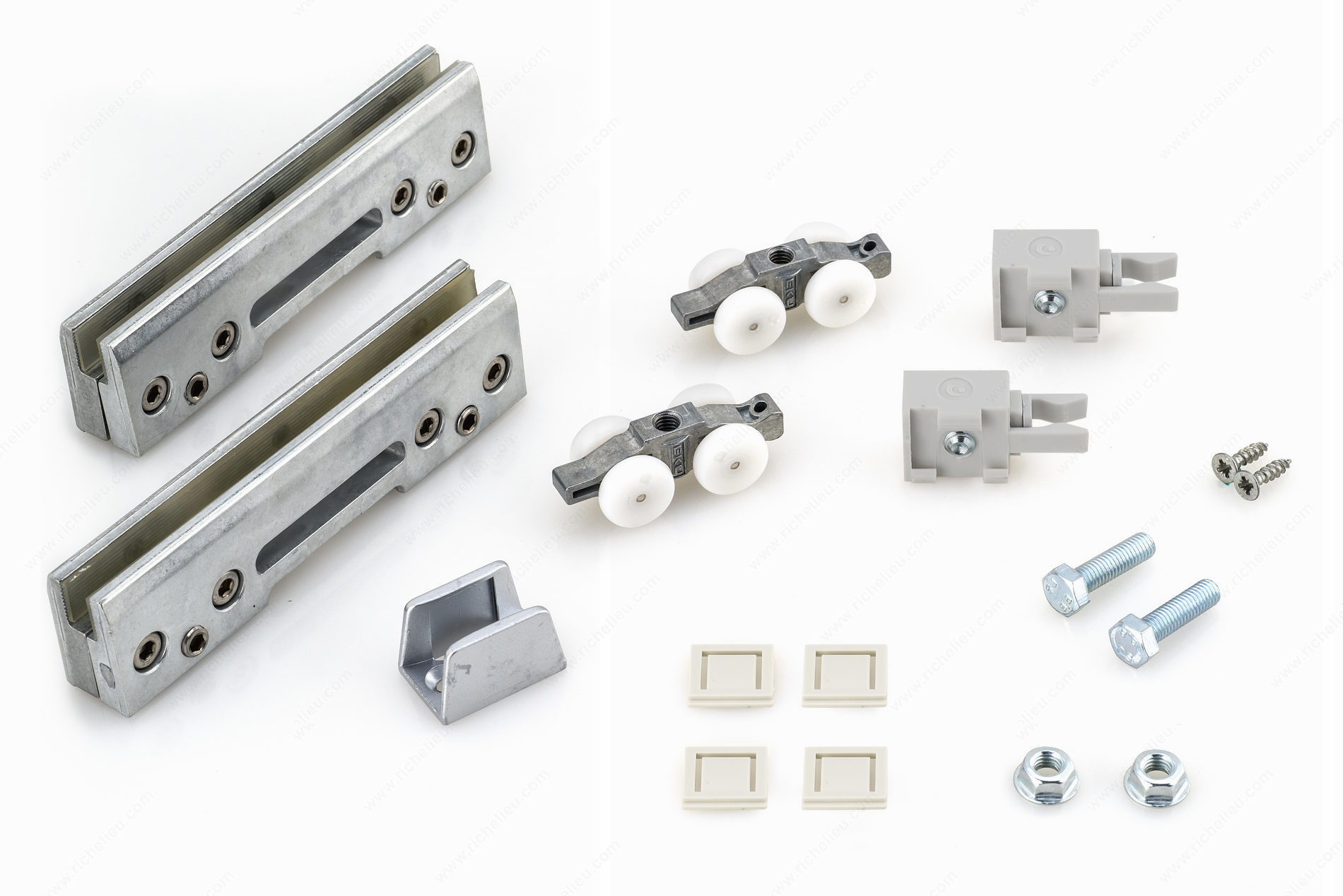

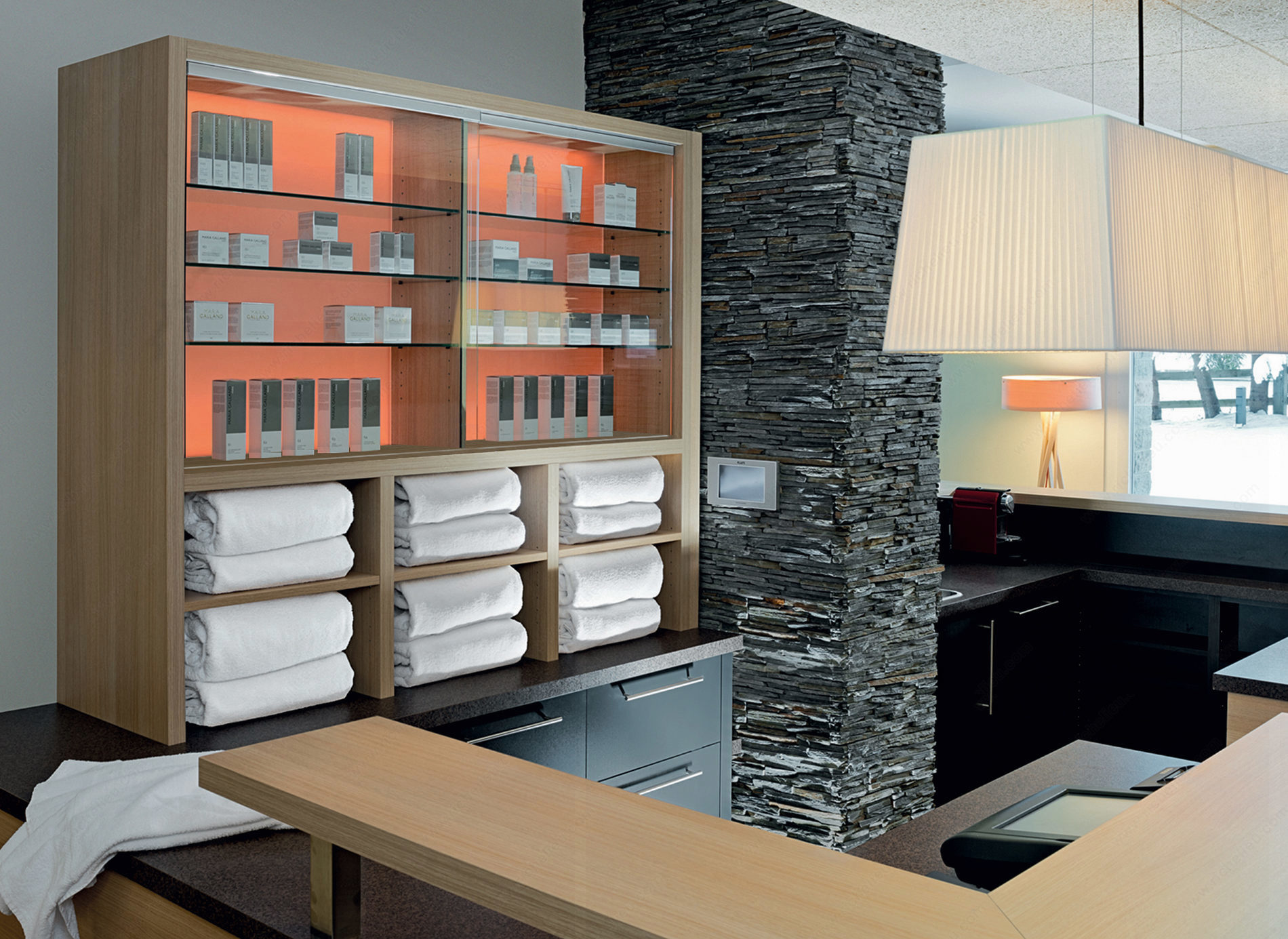

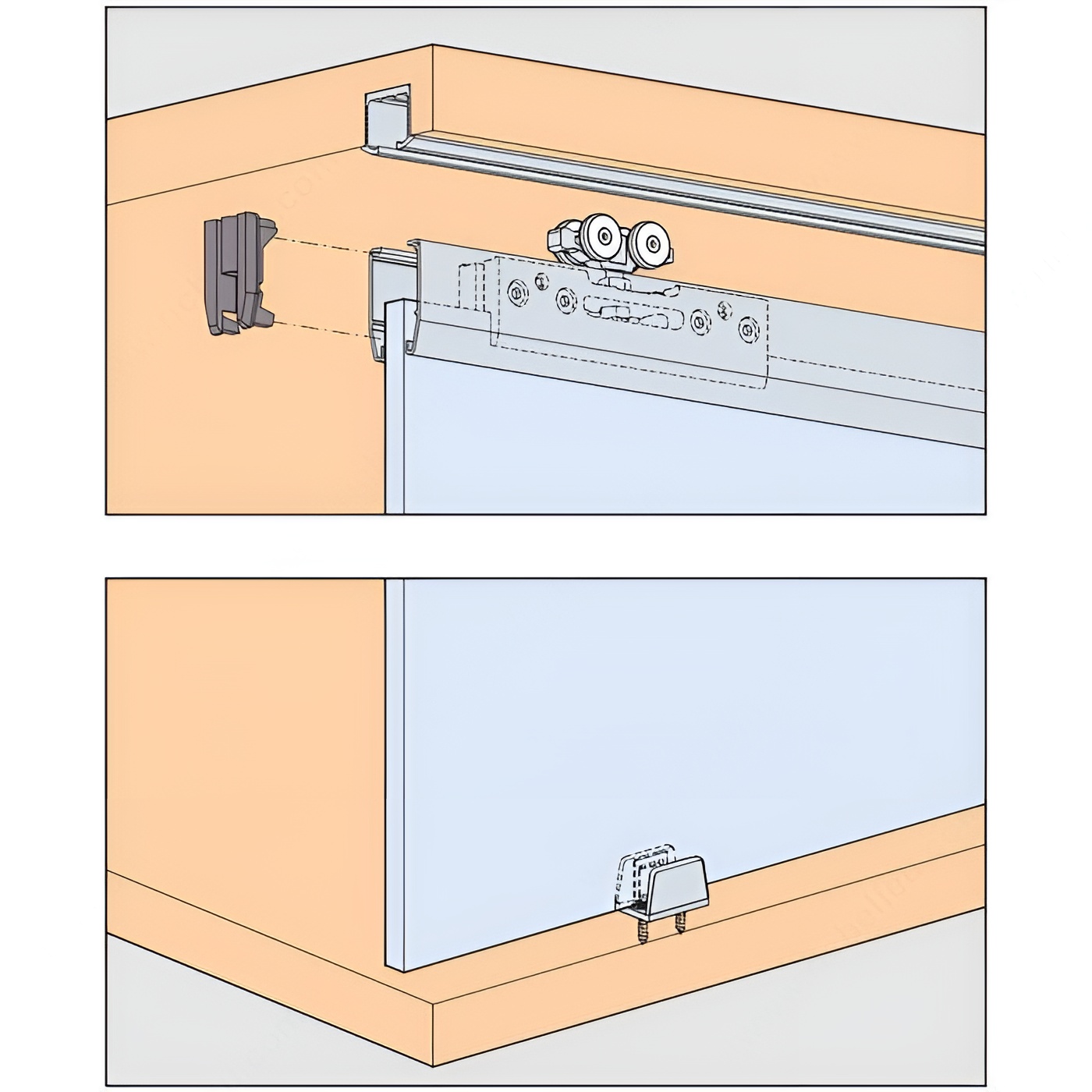

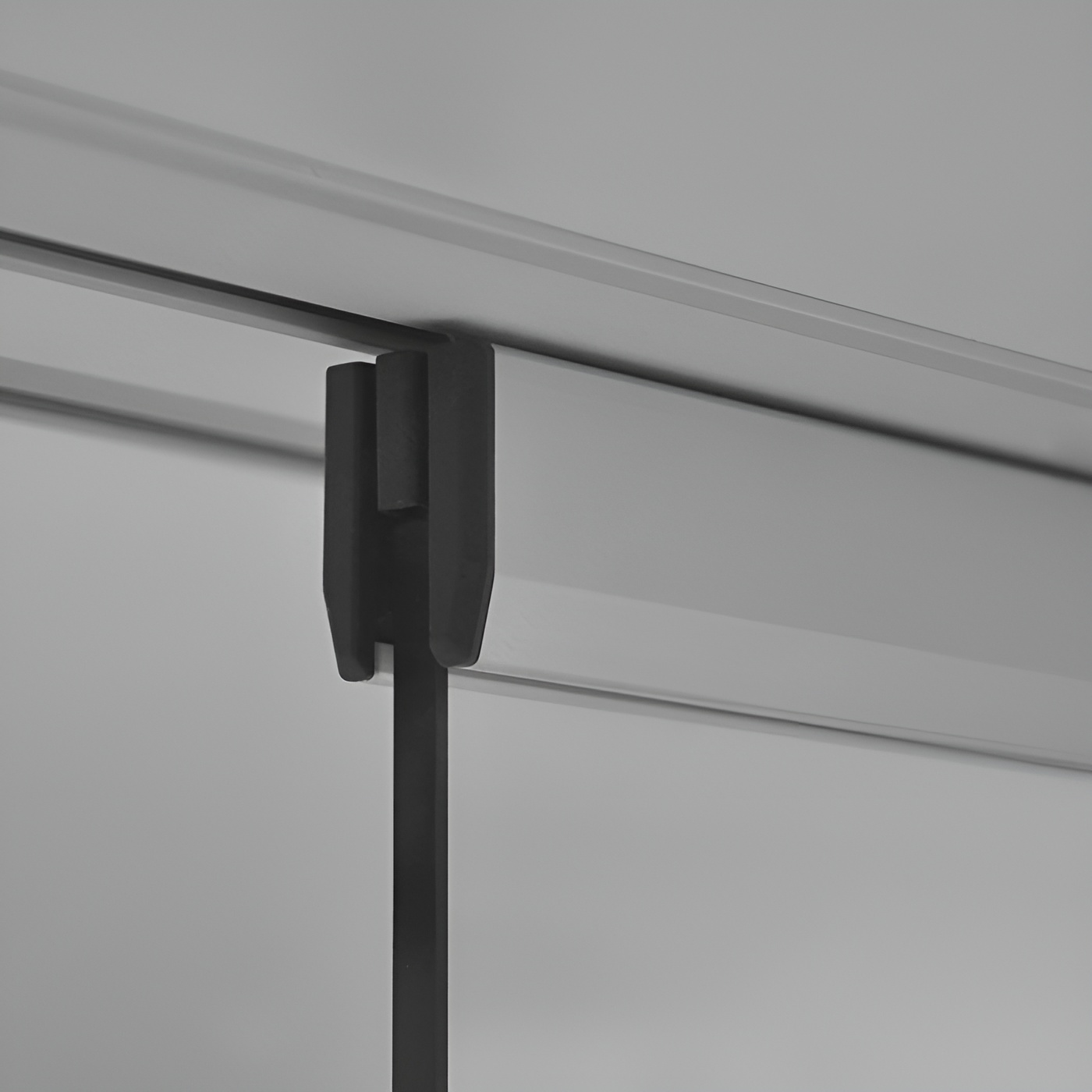

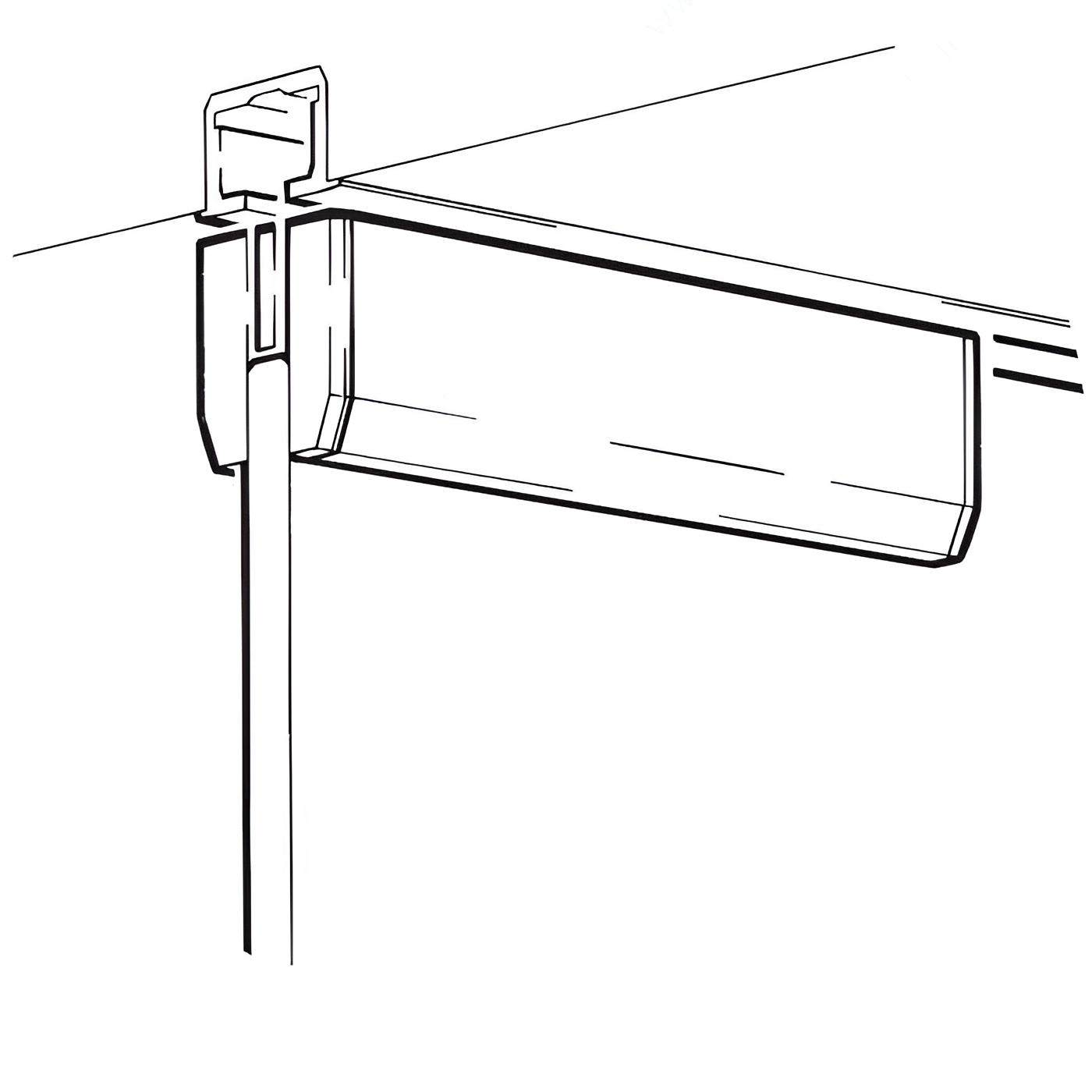

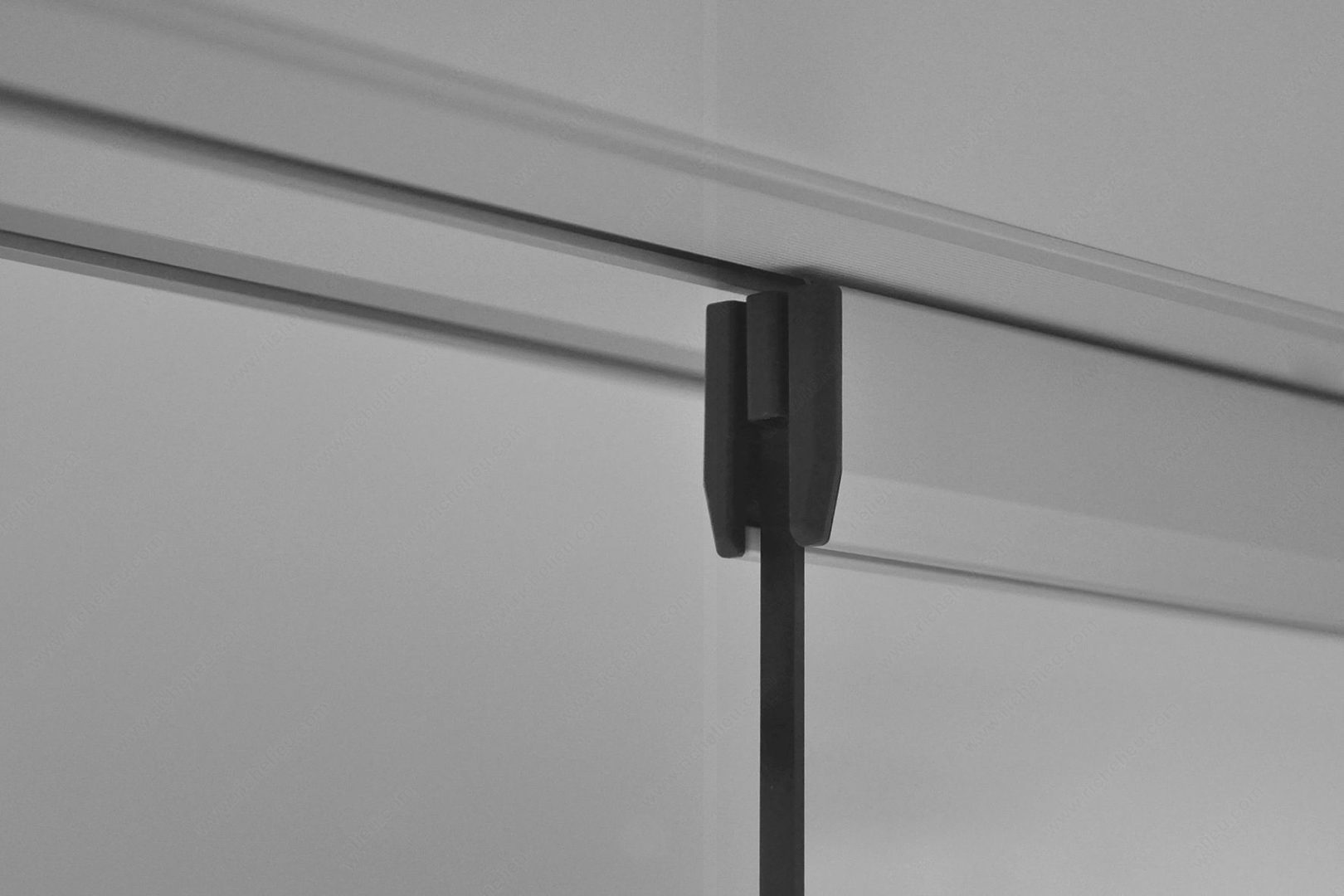

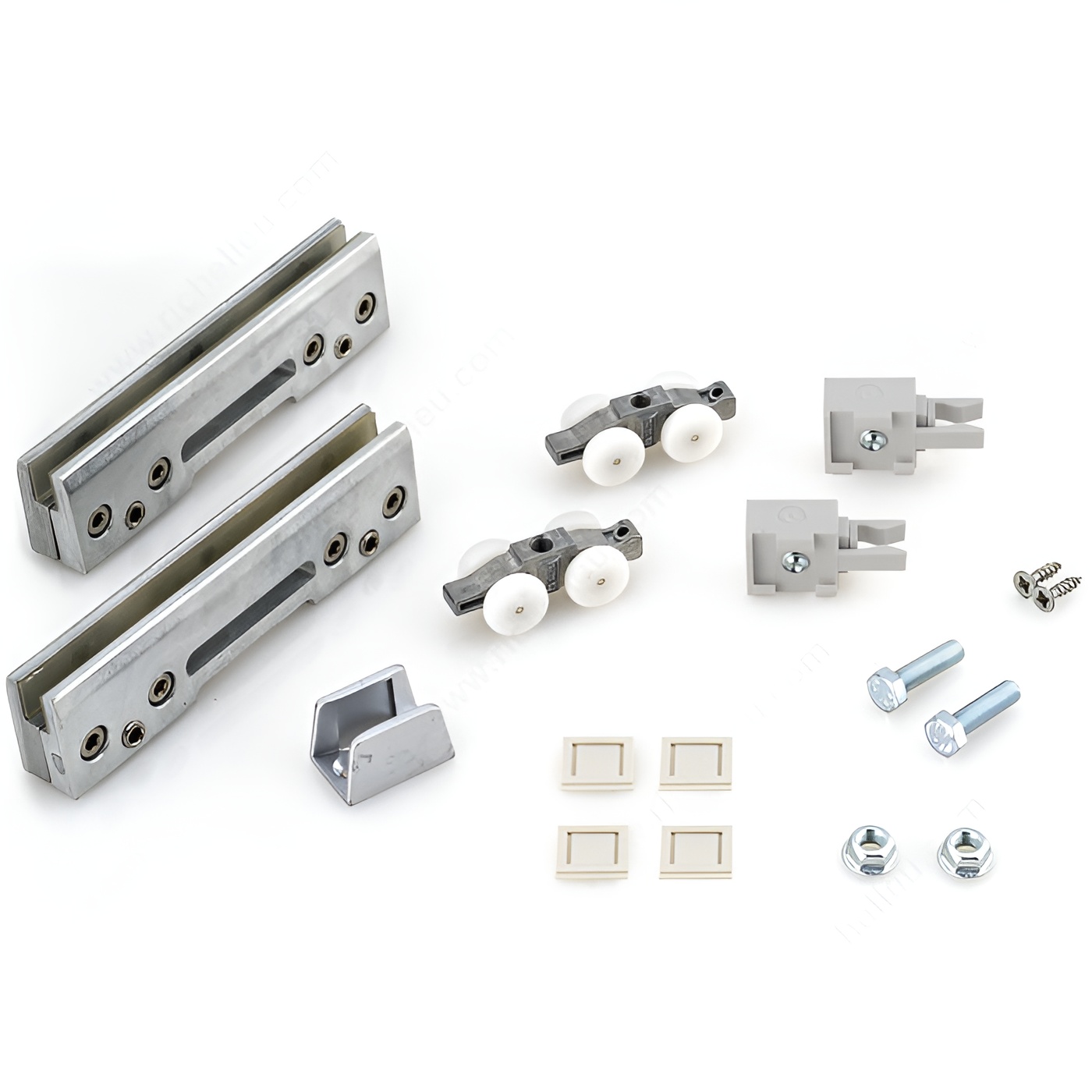

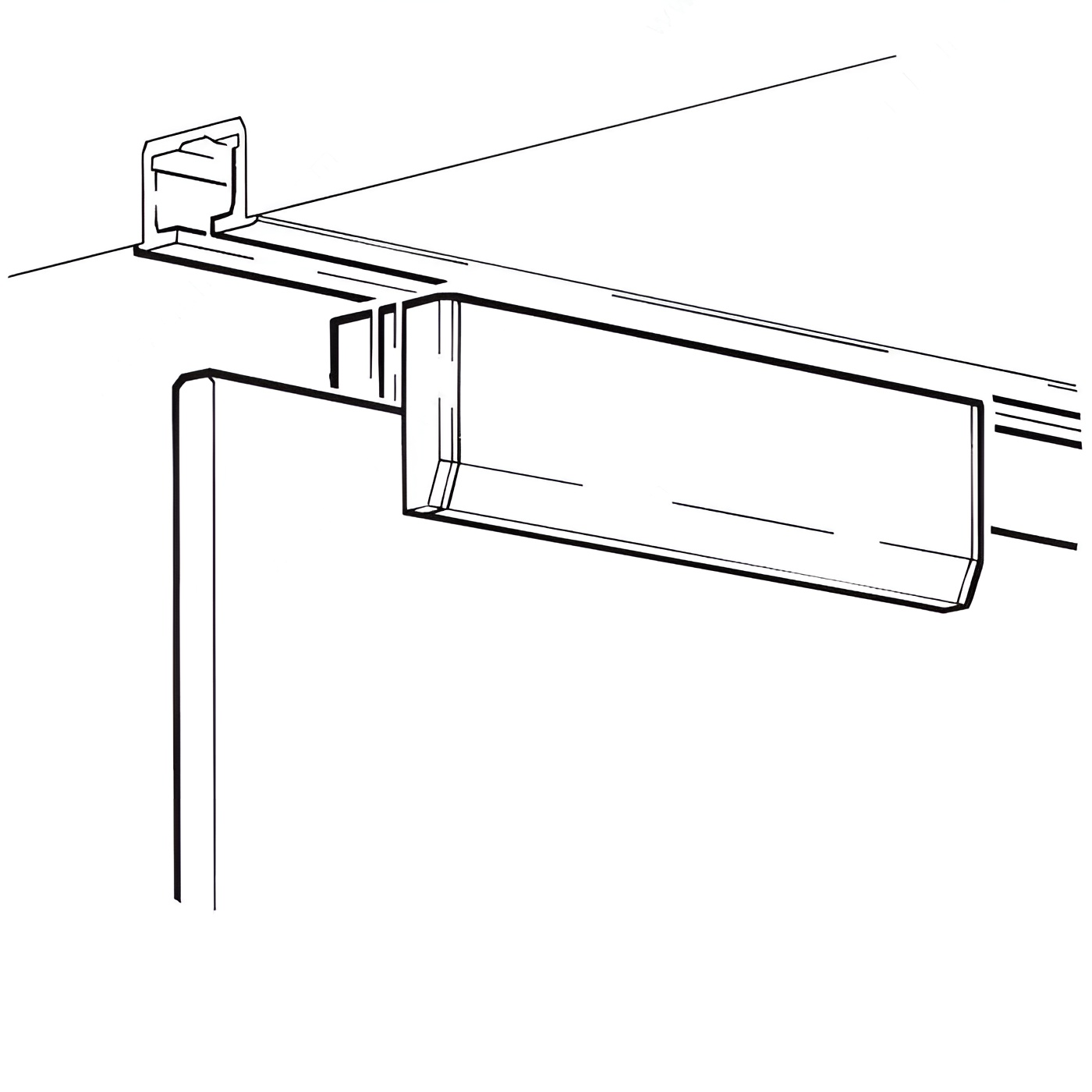

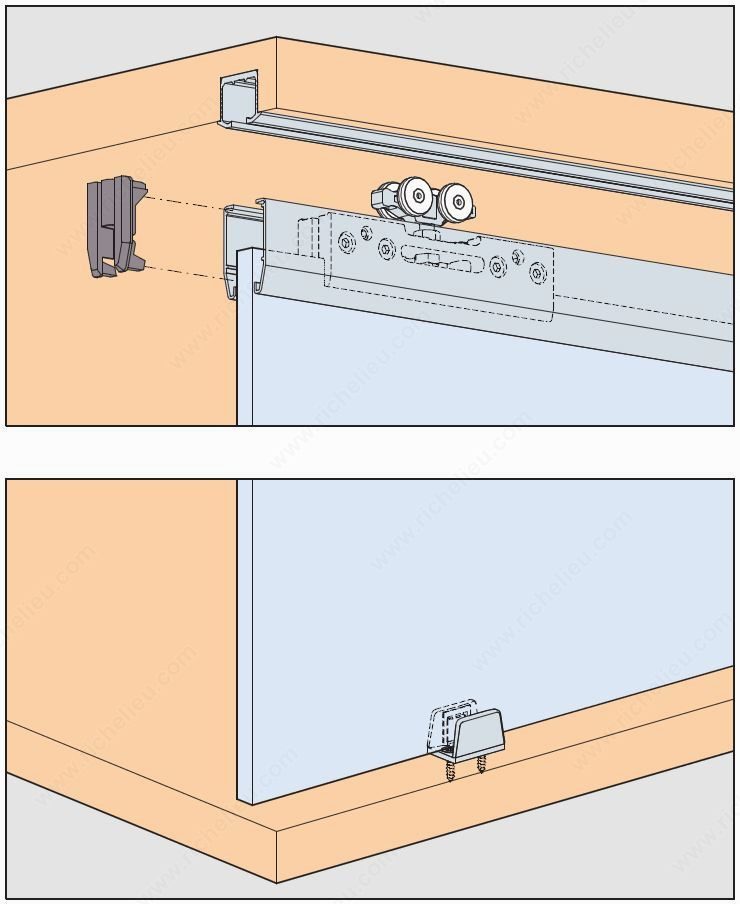

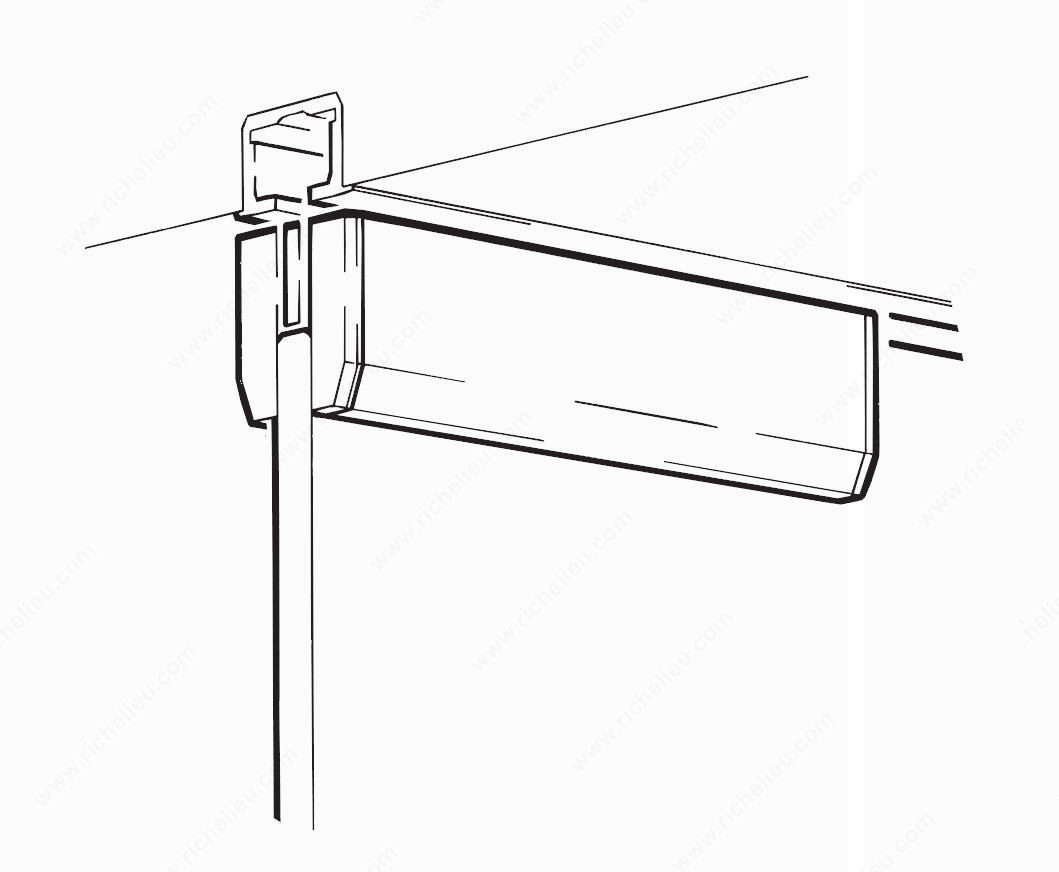

Richelieu WEBKIT1214486 HAWA CLIPO 36 G IS Bypassing Sliding System is an innovative solution for inset glass cabinet doors, accommodating doors that weigh up to 79 lb (36 kg). This top-running sliding system is designed specifically for frameless glass doors, making it an ideal choice for modern cabinetry and showcases. With a maximum door height of 78 3/4 inches and a width of 39 3/8 inches, it offers flexibility for various applications. The unique clamping shoe design ensures that no holes are required in the glass, maintaining its aesthetic integrity. The clamping shoes are elegantly concealed by a clip-on fascia, enhancing the system's overall visual appeal. Adjustable options allow for easy installation, whether recessed or surface-mounted to the cabinet top. The system features a single track type with axle (bushing) roller type for smooth operation, facilitating straight sliding movements. While the soft-close mechanism is available separately, its absence doesn't compromise the quiet functionality of the system. This product is perfect for both building professionals and discerning homeowners looking to elevate their interior design with stylish and efficient cabinetry solutions.
HAWA CLIPO 36 G IS Bypassing Sliding System for Inset Glass Cabinet Doors
Adjustable: Yes
Application: Cabinet, Showcase
Brand: Hawa
Detailed Door Movement: Bypassing
Door Height: Max. 2 000 mm
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 6 to 8 mm
Door Width: Max. 1 000 mm
Load Capacity: 79.4 lb*
Number of Doors: 1
Product #: WEBKIT1214486
Product number: WEBKIT1214486
Product №: WEBKIT1214486
Roller Type: Axle (Bushing)
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Track Type: Single
Track type: Single
Weight Capacity per Door: 36 kg
