Richelieu WEBKIT1224198 TERNO STEP 80/120 BASIC Series InstructionsRichelieu WEBKIT1224198 TERNO STEP 80/120 BASIC Series offers a robust solution for straight-sliding wood doors, accommodating weights of up to 80 kg or 120 kg. This system features an automatic clip-on suspension bracket, allowing for quick and tool-free installation, which is ideal for busy professionals. Available in multiple hardware configurations, you can choose between standard stops, stops with shock absorbers, or soft close mechanisms, ensuring versatility to meet various project requirements. The TERNO STEP is designed for both ceiling and wall mount track options, making it adaptable for different installation scenarios. This series supports door heights from 47 1/4 to 118 inches and widths ranging from 27 1/2 to 39 3/8 inches, with a door thickness of 1 3/16 to 1 25/32 inches. An optional two-part floor guide can be purchased separately to eliminate the need for a groove on the bottom of the door, simplifying installation further. With a load capacity of 179 to 265 lbs, this system is perfect for high-traffic residential and commercial spaces. Enhance your access solutions with the Richelieu TERNO STEP BASIC Series, designed to blend functionality with sleek aesthetics.
TERNO STEP 80/120 BASIC Series

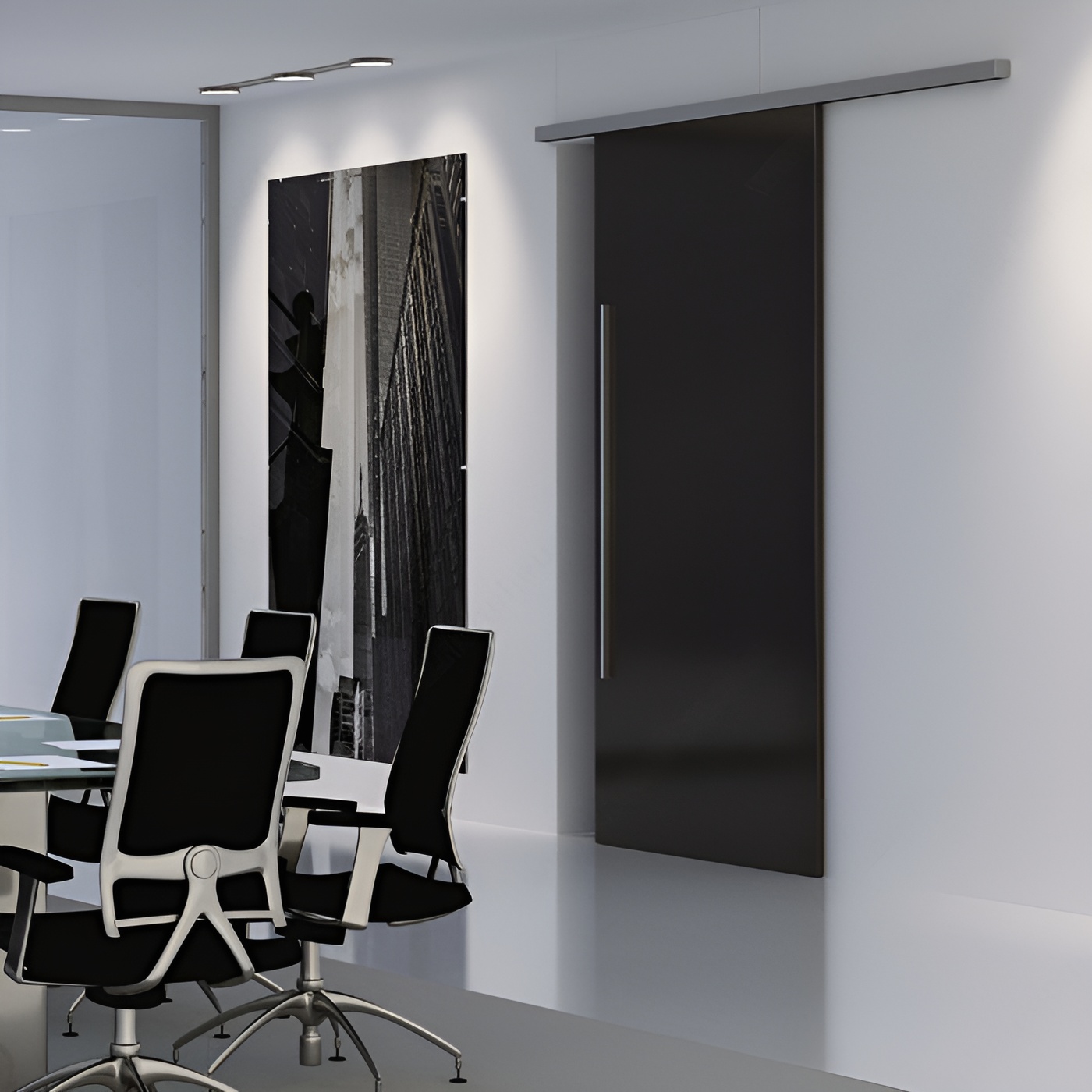

The TERNO STEP 80/120 BASIC Series is a standard straight-sliding door system for wood doors weighing up to 80 kg or 120 kg.
Features:
- Automatic clip-on suspension bracket for quick, toolless door installation
- Choice of hardware types:
a) 2 standard stops,
b) 2 stops with shock absorbers,
c) 2 soft close mechanisms.
- Track options for ceiling mount and wall mount
- Clip-on anodized aluminum fascia options for 35 mm and 45 mm thick doors
- Optional clips for wood fascia supplied by the contractor
The TERNO STEP BASIC Series is an ideal solution for large-volume residential and commercial large volume for access doors between rooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required on the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid cutting a groove.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Standard Access Door
Brand: Terno
Detailed Door Movement: Biparting
Door Height: Max. 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: Max. 45 mm
Door Width: Min. 700 mm
Function: Sliding Door
Length - Overall Dimensions: 13 ft 1 in*
Load Capacity: 179 to 265 lb*
Number of Doors: 2
Overall Length: 4 000 mm
Product #: WEBKIT1224198
Product number: WEBKIT1224198
Product №: WEBKIT1224198
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: No
Track Mounting: Wall Mount
Track Type: Standard
Track type: Standard
Weight Capacity per Door: Max. 120 kg
