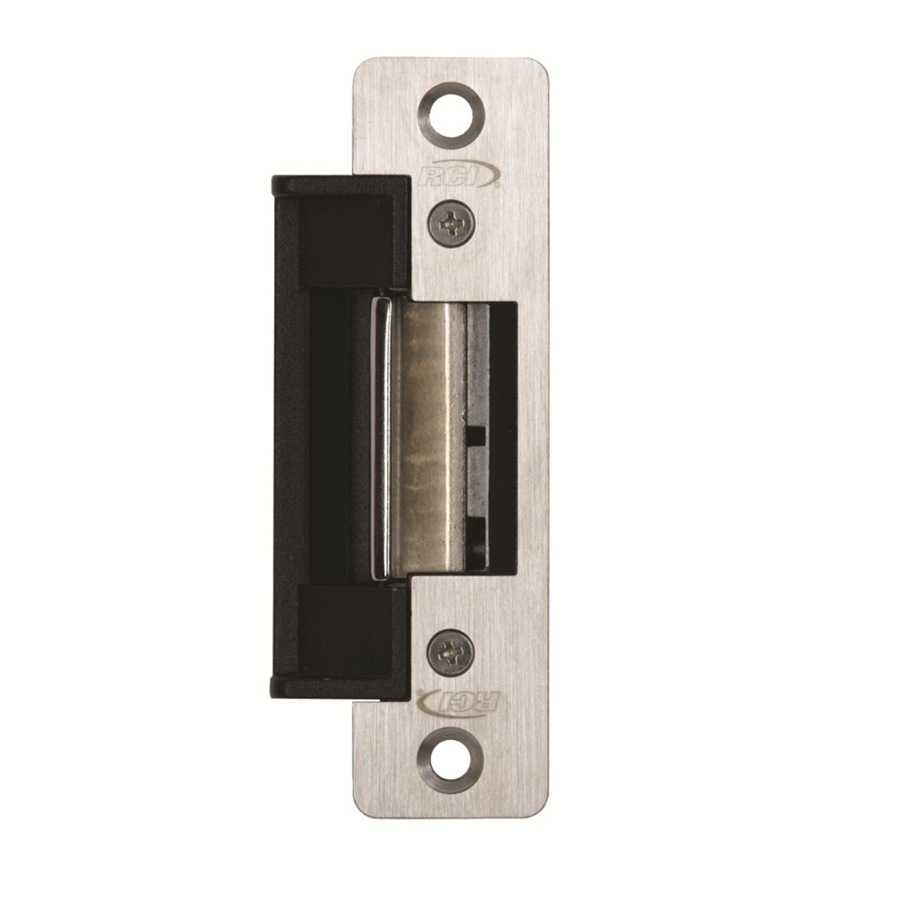

Rutherford Controls F4104-08X32D 24VAC/DC FSE Fire Electric Strike offers a robust solution for securing various commercial and industrial applications. Designed to accommodate a 3/4" latch projection, this electric strike easily integrates with a wide range of door thicknesses, from 1-3/8" to 2-3/8". Its versatile faceplate options and 1-1/2" cut-out depth ensure compatibility with most door frame materials. Installation is straightforward, thanks to the included standard mounting tabs and fasteners, making it an efficient choice for professionals. The coil is not polarity sensitive, eliminating the concern of crossed wires. With a holding force of 1,500 lbf static and a dynamic strength of 70 ft-lb, this strike is built to withstand heavy use, boasting an endurance rating of up to 500,000 cycles for fire-rated models. The Rutherford Controls F4104-08X32D also features a 1-1/2 hour fire rating option, making it ideal for environments requiring enhanced safety. Its brushed stainless steel finish not only adds a polished look but also ensures durability. Certified to ANSI/BHMA standard A156.31, grade 1, this electric strike is a reliable choice for commercial centers, educational facilities, healthcare environments, and retail outlets.

24VAC/DC FSE Fire Electric Strike

The 4 series centerline strike accommodates 3/4" latch projections. Its various faceplate options and 1-1/2" cut-out depth accommodates most door frame types and materials. Installation is simple with standard mounting tabs and included fasteners. Crossed wires are never a problem, as the coil is not polarity sensitive. The RCI 4 series centerline strikes are available with an optional 1-1/2 hour fire-rating. 41 Series depicts fail-secure and 43 series depicts fail-safe.

Features:

• Accommodates 3/4" (19mm) latch projection
• 1-1/2" (38mm) cut-out depth accommodates most door frame material types
• Use with wide range of door thicknesses, 1-3/8" to 2-3/8" (35mm-60mm)
• Standard mounting tabs and fasteners included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Energy: 200mA 11-16VAC, 12VAC/VDC, 24VAC/VDC (At 12VDC)
• Strength: 1,500lbf Static 2 70ft-lb dynamic (1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates, 500lbf for 05, 07, 08 & 19 faceplates.)
• Endurance: 500,000 Cycles (fire-rated (F) models only, 250,000 for other models)
• Mode: Fail-secure & fail-safe
• Optional 1-1/2-hour models available (fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates)
• Warranty: 5 Year limited

Technical Details:

• Insert Depth: 1-1/2"D (38mm)
• Brushed Stainless Steel (32D) finish
• Certified to ANSI/BHMA standard A156.31, grade 1

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes
