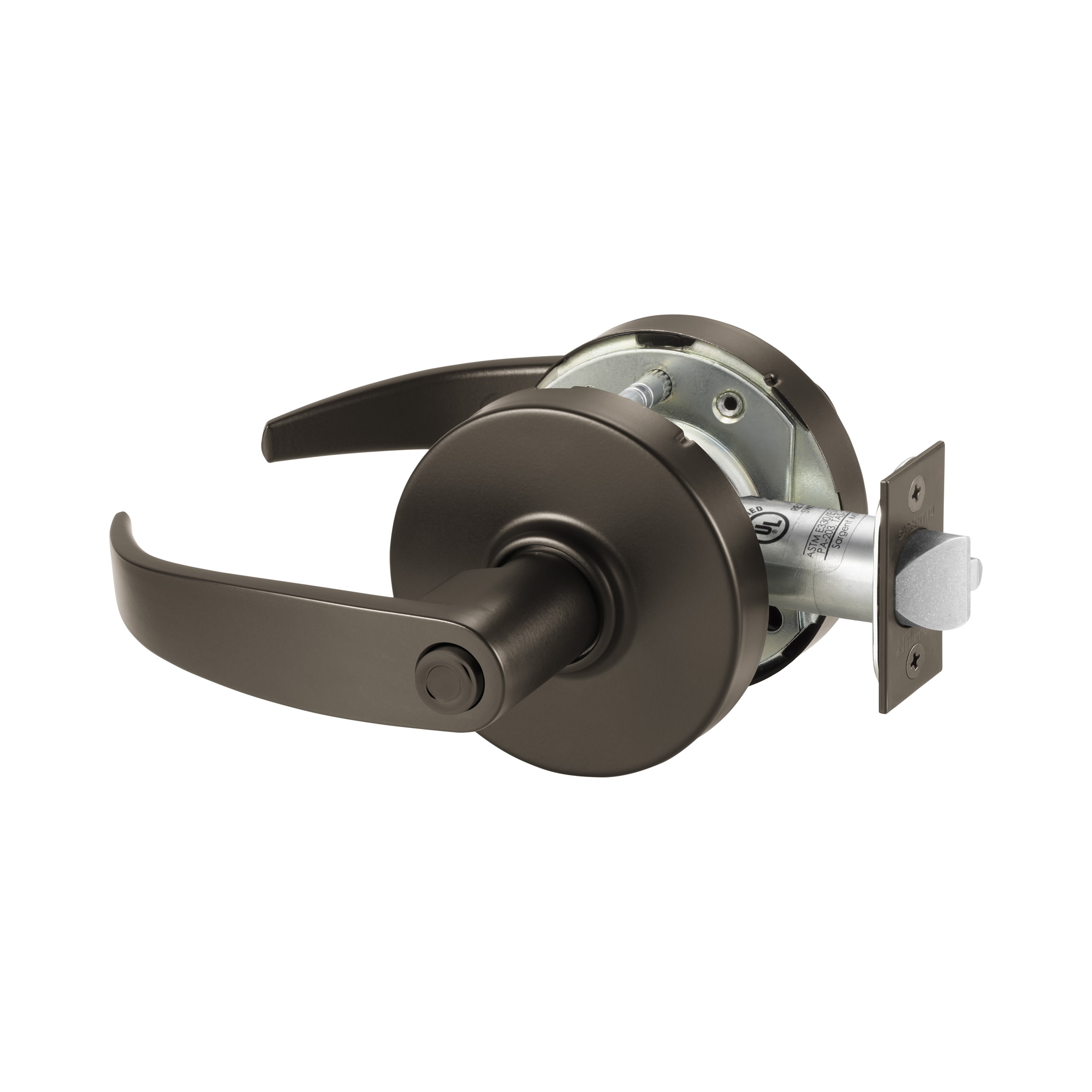

Sargent 10XG24 LP 10BE F82A Grade 1 Cylindrical Lever Lock, P Lever, L Rose, LA Keyway, Dark Bronze
Images may not represent actual product and finish

Sargent 10XG24 LP 10BE F82A Grade 1 Cylindrical Lever Lock, P Lever, L Rose, LA Keyway, Dark Bronze

Your Price: $612.37
Retail Price:$1,123.0000
Your Savings:$510.63(45%)
SARGENT 10XG24LP10BE Grade 1 cylindrical lever lock with LA keyway, dark bronze finish, ideal for commercial entry applications.
Part Number : SAR_10XG24LP10BE
Availability: 12 In Stock
Sargent 10XG24 LP 10BE F82A Grade 1 Cylindrical Lever Lock, P Lever, L Rose, LA Keyway, Dark Bronze

Sargent 10XG24LP10BE Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 combines security and functionality, making it an ideal choice for commercial and institutional applications. Featuring a robust design with a P Lever and L Rose, this lockset is finished in a sleek Dark Bronze, ensuring both durability and aesthetic appeal. Engineered to fit a variety of door preparations, the adaptable through-bolt positioning allows for quick installation in under one minute. The lockset exceeds ANSI/BHMA A156 2 Grade 1 requirements, providing peace of mind with its impressive cycle test performance. Designed to accommodate doors ranging from 1-3/4" to 2" thick, it features a 2-3/4" backset and a 2-1/8" crossbore size. Equipped with a 6-pin LA keyway and an ASA strike, this lock provides reliable access control. The solid feel and precise lever action enhance user experience, while the UL and cUL 3 Hour Fire Rating ensures compliance with safety standards. Backed by a 7-year limited warranty, the Sargent 10XG24LP10BE is the perfect solution for those seeking durable and stylish entrance hardware.

Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 with P Lever and L Rose with LA Keyway KD and ASA Strike Dark Bronze Finish

SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.


  • Installs in 1 minute or less
  • Solid feel and precise lever action
  • Cycle Test: Exceeds ANSI/BHMA A156 2 Grade 1 requirements
  • Fits a variety of door preparations with adaptable through-bolt positioning
  • Quickly adapts to fit multiple through-bolt positions

Attributes

Alternate Codes: 10XG24-LP-10BE, 10XG24LP10BE

Backset: 2-3/4" Backset

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Country of Origin: Usa

Crossbore Size: 2-1/8" Bore

Design: P Lever

Dimension: 5-1/16" Lever with 2-15/16" Projection, and 3-1/2" Rose

Door Range: 1-3/4" to 2"

Finish: Dark Bronze

Finish Code: US10BE

Finish Description: Dark Oxidized Bronze

Fire Rated: 3 Hours {A}

Function: Entry

Grade: Grade 1

Hazardous Material: NO

Keyway: LA Keyway

Latch Faceplate Dimension: 1-1/8" x 2-1/4"

Lever Knob Design: P Lever

Limited Warranty: 10 Year Limited Warranty

Manufacturer Warranty: 7 Year Limited Warranty

Material: Zinc

No Of Inners: 1

No Of Pins: 6 Pin Keyway

Order_ Qty: 1

Rose Escutcheon Design: L Rose

Series: 10X Line Series

Strike: ASA Strike

Strike Dimension: 4-7/8" with 1-1/4" Lip

Subcategory: Cylindrical Locksets

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing Type: UL and cUL 3 Hour Fire Rating
