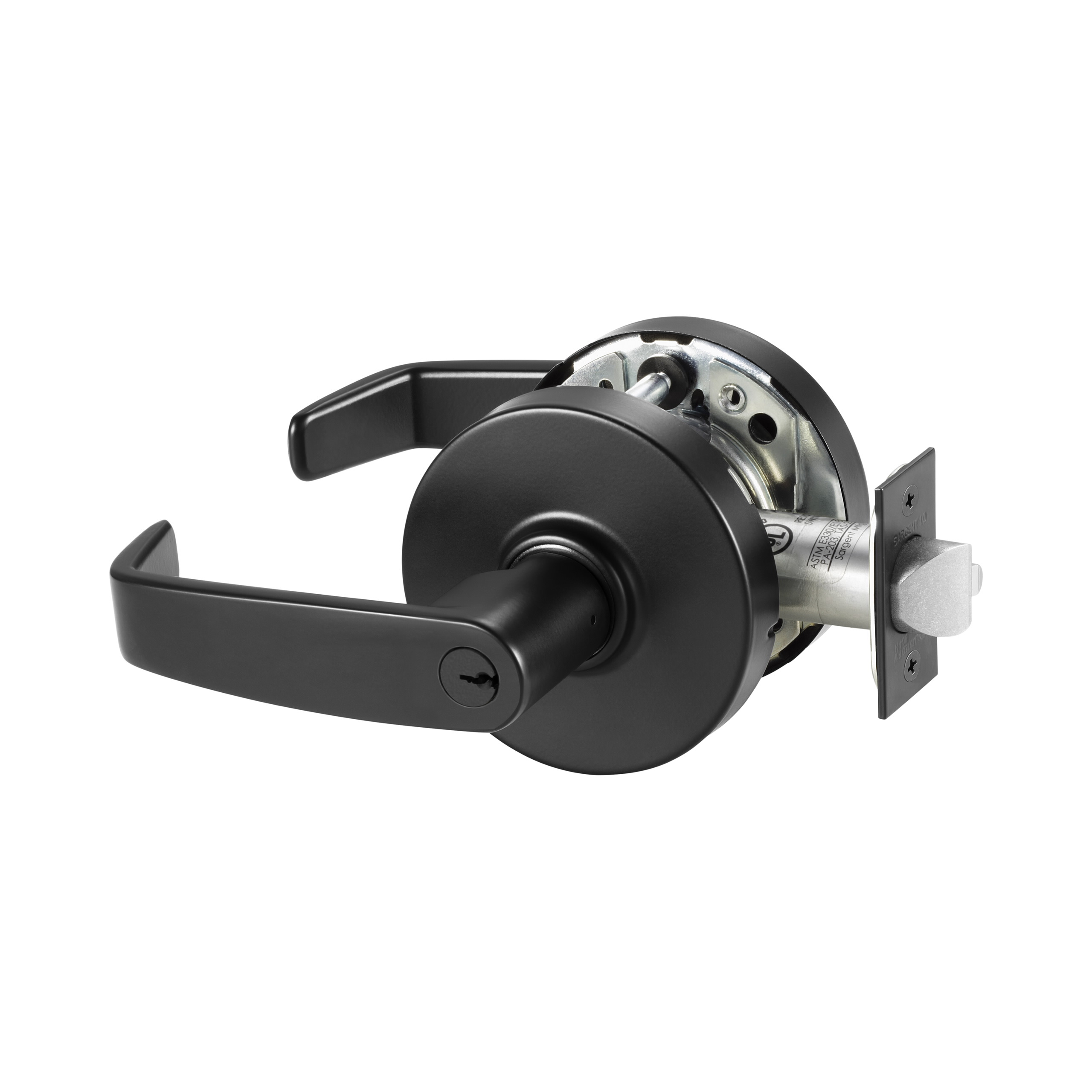

Sargent 10XG37LLBSP Classroom (F84) Cylindrical Lever Lock is engineered for security and ease of use, making it an ideal choice for commercial, healthcare, industrial, and educational applications. This Grade 1 lockset features a robust L Lever and L Rose, complemented by a sleek Black Suede Powder Coat finish that enhances its aesthetic appeal. Designed for versatility, the lock fits a range of door preparations with adaptable through-bolt positioning, ensuring a seamless installation in under a minute. With a backset of 2-3/4" and a crossbore size of 2-1/8", it accommodates doors ranging from 1-3/4" to 2" thick. The lock exceeds ANSI/BHMA A156 2 Grade 1 standards, demonstrating its durability through rigorous cycle testing. The solid feel and precise lever action provide a reliable locking mechanism, while the ASA strike and 6-pin LA keyway enhance security. Additionally, it features a UL and cUL 3 Hour Fire Rating, ensuring safety in emergency situations. Backed by a 7-Year Limited Warranty, the Sargent 10XG37LLBSP is a dependable choice for those seeking a combination of style, strength, and performance in architectural door hardware.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 10XG37-LL-BSP, 10XG37LLBSP
Ansi: F84
Ansi Function: F84 - Classroom
Backset: 2-3/4" Backset
Base Material: Steel
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: L Lever
Dimension: 4-1/2" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: LA Keyway
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: L Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Of Keys: 2
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
