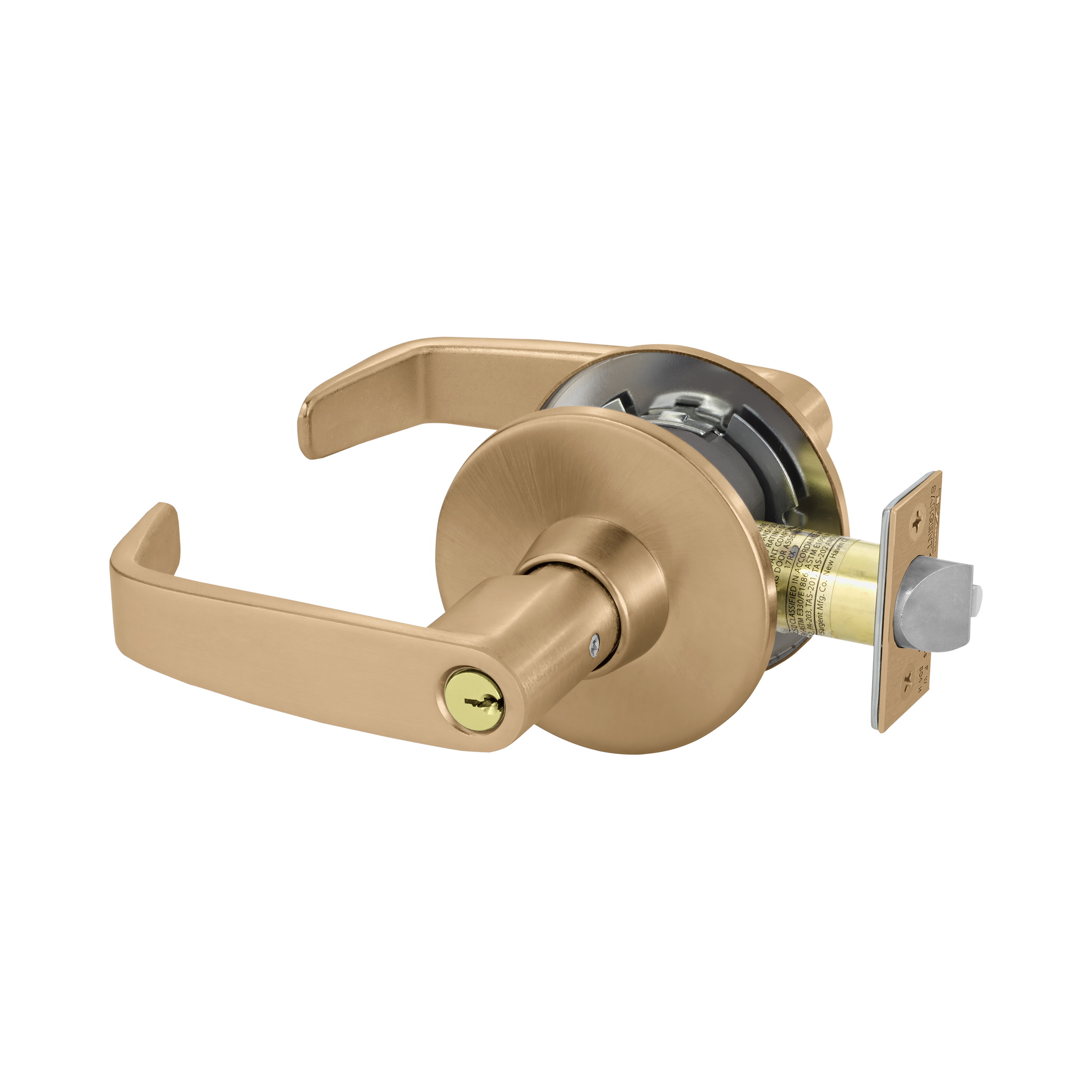

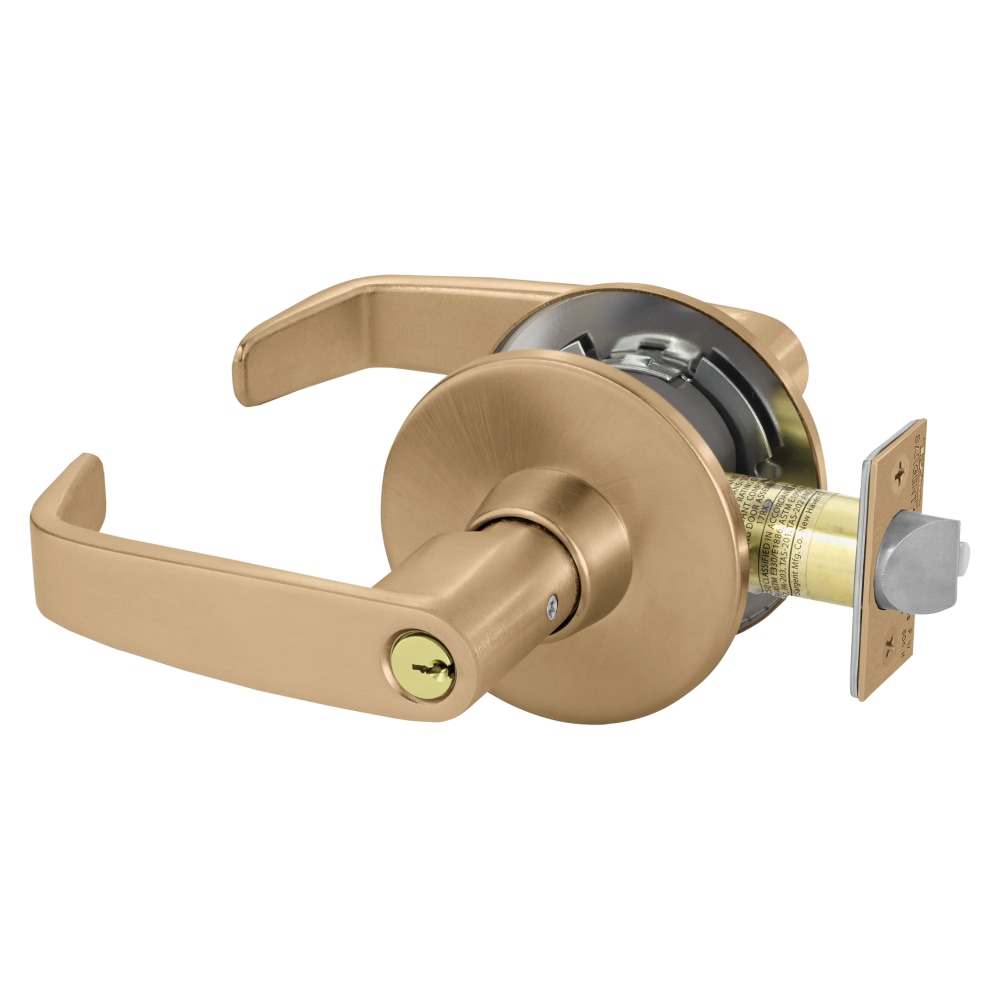

The SARGENT¬ 11 Line sets a higher standard for Grade 1 bored-in locks. The unique T-Zone¬ construction provides unequalled strength and durability for the most demanding applications such as schools and hospitals. This is accomplished by true interlocking between the lockbody and the latch far exceeding the 156.2 Series 4000 Grade 1 standards like no other lock can.
Attributes
Ship via: Can Ship UPS
Ansi: F81
Ansi Function: F81 - Office
Baa Qualified: Yes
Backset: 2-3/4" Backset
Base Material: Bronze
Bolt Projection: 1/2"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: L Lever and L Rose
Door Thickness: 1-3/4" - 2"
Dust Box: None
Finish: 612/US10
Finish Description: Satin Bronze Clear Coated
Finish Family: Matte Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Entrance or Office
Function Family: Entrance/Office
Grade: Grade 1
Hand: Not Handed
Handing: Non-handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Keyway: LA
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: Nov-06
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: L Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Entrance/Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Origin: United States
Pack Height: 4.25"
Pack Height 2: 9"
Pack Length: 8.25"
Pack Length 2: 20.75"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Volume 2: 2801.25 in³
Pack Width: 7.13"
Pack Width 2: 15"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-3/4"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Combination
Series: T-Zone (11-Line) Bored Lever Locks
Ship Weight: 4.2 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 11-2106
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 10
