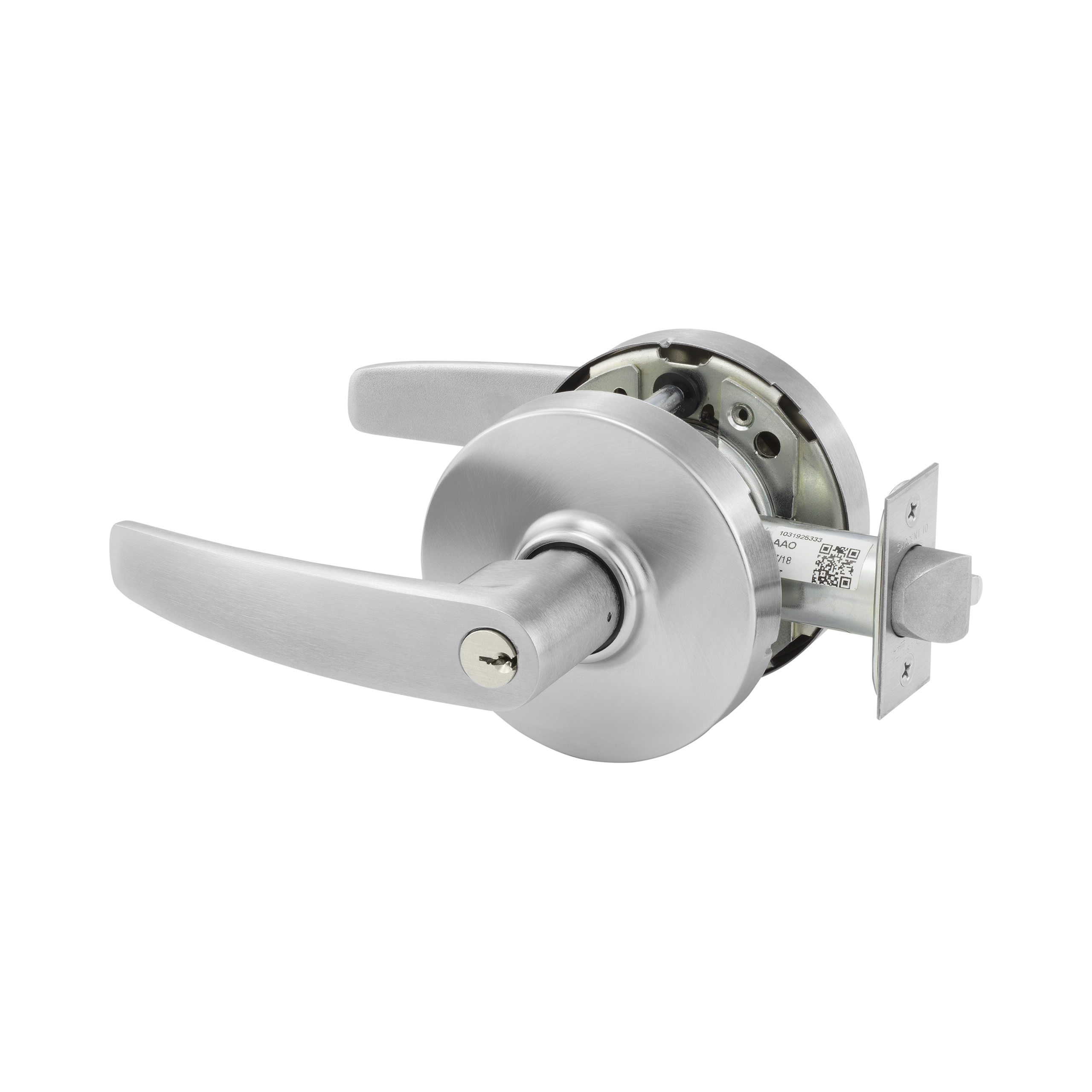

Sargent 6010XG04LB26D Storeroom or Closet (F86) Cylindrical Lever Lock Grade 1 combines robust security with reliable performance. Designed for high-traffic environments, this lockset features a B Lever and L Rose, ensuring a sophisticated look while maintaining functionality. The large format IC preparation allows for easy core changes, making it adaptable for various access control needs. Engineered to withstand over 3,100 in-lb of locked lever torque-2.6 times the ANSI/BHMA A156.2 requirements-this lockset guarantees exceptional durability. It resists a staggering 1,600 lbs of offset lever pull, ensuring continued security in demanding conditions. The latch retraction is effective even under a 100 lb preload, accommodating warped doors or latch bind issues. With a satin chrome finish (US26D), the Sargent 6010XG04LB26D is not only functional but also aesthetically pleasing. Installation is straightforward, compatible with doors ranging from 1-3/4" to 2" thick. This lockset meets UL and cUL standards with a 3-hour fire rating, making it suitable for a variety of applications, including commercial, healthcare, and educational settings. Backed by a 7-year limited warranty, it represents a sound investment in security and reliability.
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
Attributes
Alternate Codes: 60-10XG04-LB-26D, 6010XG04LB26D
Ansi: F86
Ansi Function: F86 - Storeroom
Backset: 2-3/4" Backset
Base Material: Brass, Bronze
Bolt Projection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/4"
Box Height Fraction: 4-1/4"
Box Width Fraction: 7-1/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Crossbore Size: 2-1/8" Bore
Cylinder Type: LFIC Disposable Construction Core
Cylinders Present: Single Cylinder
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Door Thickness: 1-3/4" to 2"
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom Closet
Function Family: Storeroom
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Bore Diameter: 1"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: B Lever
Lever Knob Design Name: B
Leverknob Design: B Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom/Closet
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25"
Pack Length: 8.25"
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13"
Pins: 6
Product Height: 4.25"
Product Length: 8.25"
Product Width: 7.13"
Projection: 2-15/16"
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 10-2000
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
