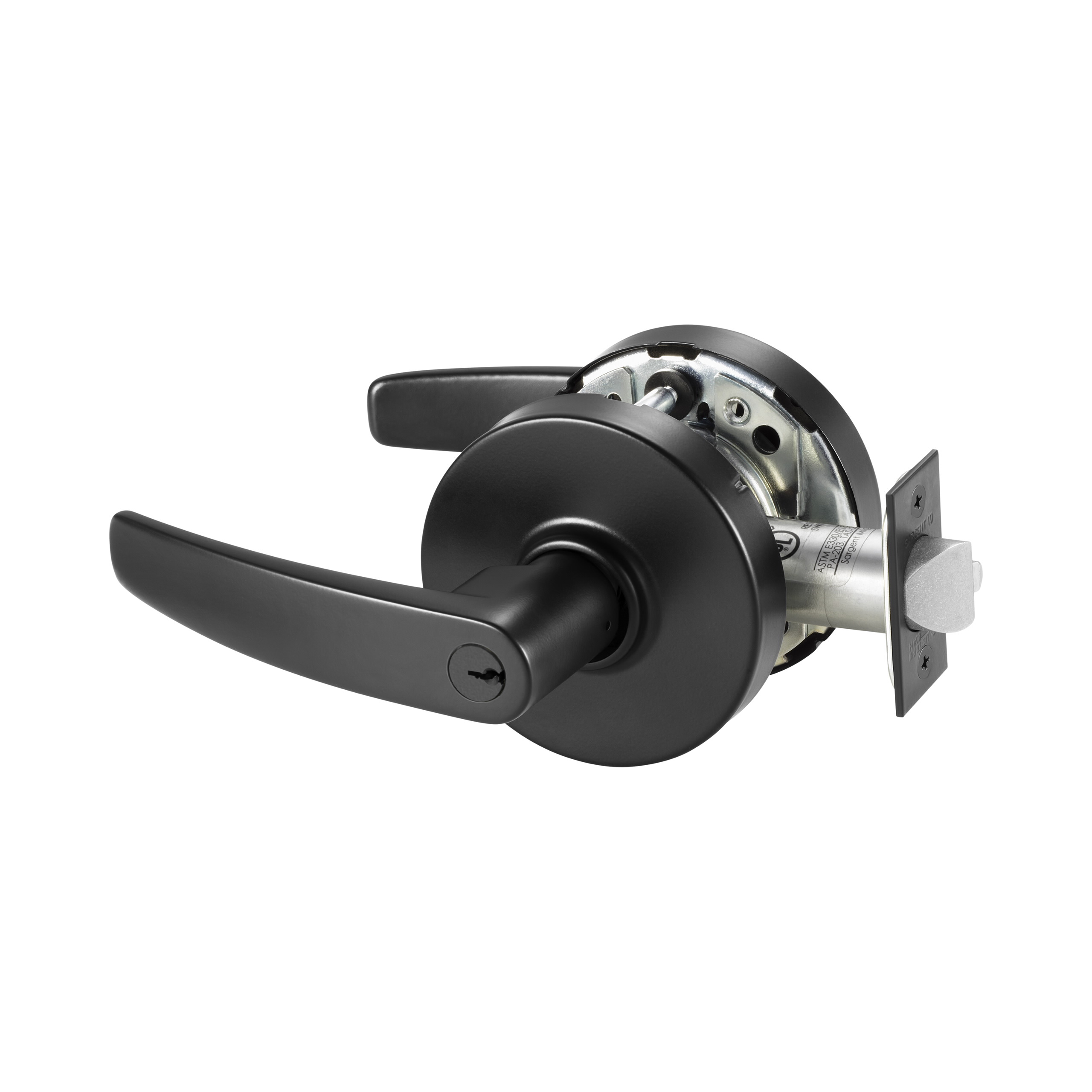

Sargent 60-10XG24 LB BSP F82A Grade 1 Cylindrical Lever Lock, B Lever, L Rose, IC Prep, Black Suede FinishSargent 6010XG24LBBSP Entrance or Office (F82A) Cylindrical Lever Lock is a top-tier Grade 1 lock designed to ensure robust security in various environments, including commercial, healthcare, and educational facilities. This lockset features a B Lever and L Rose, paired with a sleek Black Suede Powder Coat finish that enhances its aesthetic appeal while providing durability. Engineered to withstand extreme conditions, the 6010XG boasts impressive resistance to forced entry, withstanding over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull. It remains functional even under challenging circumstances, managing latch retraction with a 100 lb preload and maintaining operation on warped doors. The lock also meets stringent performance standards, having completed the UL Cycle Above and Beyond test with an impressive 20 million cycles. With a 2-3/4" backset and designed for doors ranging from 1-3/4" to 2" thick, this cylindrical lockset features a 2-1/8" crossbore size and a latch faceplate dimension of 1-1/8" x 2-1/4". Backed by a 7-year limited warranty, the Sargent 6010XG24LBBSP is a reliable choice for those looking to enhance security without compromising on style.
Entrance or Office (F82A) Cylindrical Lever Lock Grade 1 with B Lever and L Rose with Large Format IC Prep Less Core and ASA Strike Black Suede Powder Coat Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are "key" to the security of them all.
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- UL Cycle Above and Beyond test completed at 20 million cycles (Verification ID: V584148)
- Ensures latch retraction with 100 lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
Attributes
Alternate Codes: 60-10XG24-LB-BSP, 6010XG24LBBSP
Backset: 2-3/4" Backset
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Dimension: 4-9/16" Lever with 2-15/16" Projection, and 3-1/2" Rose
Door Range: 1-3/4" to 2"
Finish: Black Suede Powder Coat
Finish Code: BSP
Finish Description: Black Suede
Fire Rated: 3 Hours {A}
Function: Entry
Grade: Grade 1
Hazardous Material: NO
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: B Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
No Of Inners: 1
Order_ Qty: 1
Rose Escutcheon Design: L Rose
Series: 10X Line Series
Strike: ASA Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL and cUL 3 Hour Fire Rating
