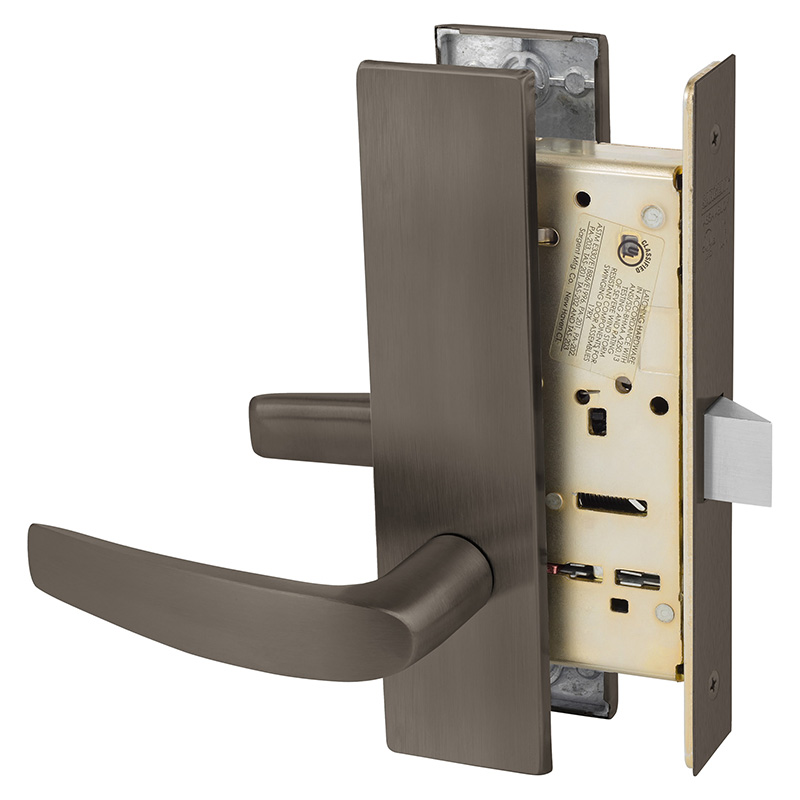

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Attributes
Ansi Function: F01 - Passage
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4 In. Latch
Bolt Protection: 3/4 In. Latch
Country of Origin: Usa
Country of origin: USA
Design: B Lever and LW1 Escutcheon
Door Thickness: 1-3/4 In.
Finish: 613/US10B
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 15-Passage or Closet
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Latch Backset Dim: 2-3/4 In.
Latch Type: Spring Latch (Unguarded)
Lever Knob Design: B - Lever
Leverknob Design: B - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Origin: USA
Pack Height: 4.38"
Pack Length: 9.25"
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63"
Rose Escutcheon Design: LW1 - Escutcheon
Roseescutcheon Design: LW1 - Escutcheon
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
