Schlage Electronic Security AD200-MS60MG-SPA626-PD C 8B KIT is a cutting-edge Mag-Stripe standalone apartment mortise lock designed for convenience and security. Featuring a sleek Sparta lever and a key-in-lever mechanism, this lock integrates seamlessly into both commercial and residential applications. Its modular design allows for future upgrades without the need to remove the lock from the door, making it a versatile choice for evolving security needs. The AD200 accommodates up to 5,000 users and audit trails, allowing for comprehensive tracking of access and events. With a credential verification time of less than one second, it ensures quick and efficient entry. The lock supports various power options-including 4AA batteries, 12VDC, and 24VDC-ensuring reliable operation in diverse environments. Built with features that facilitate future networking capabilities, such as request-to-exit sensors and door position switches, this lock is engineered for longevity and adaptability. The satin chrome finish provides a modern aesthetic while meeting ANSI/BHMA Grade 1 standards for security. With its combination of advanced technology and robust construction, the Schlage AD200 is the ideal solution for those seeking a secure, stylish, and flexible locking system.

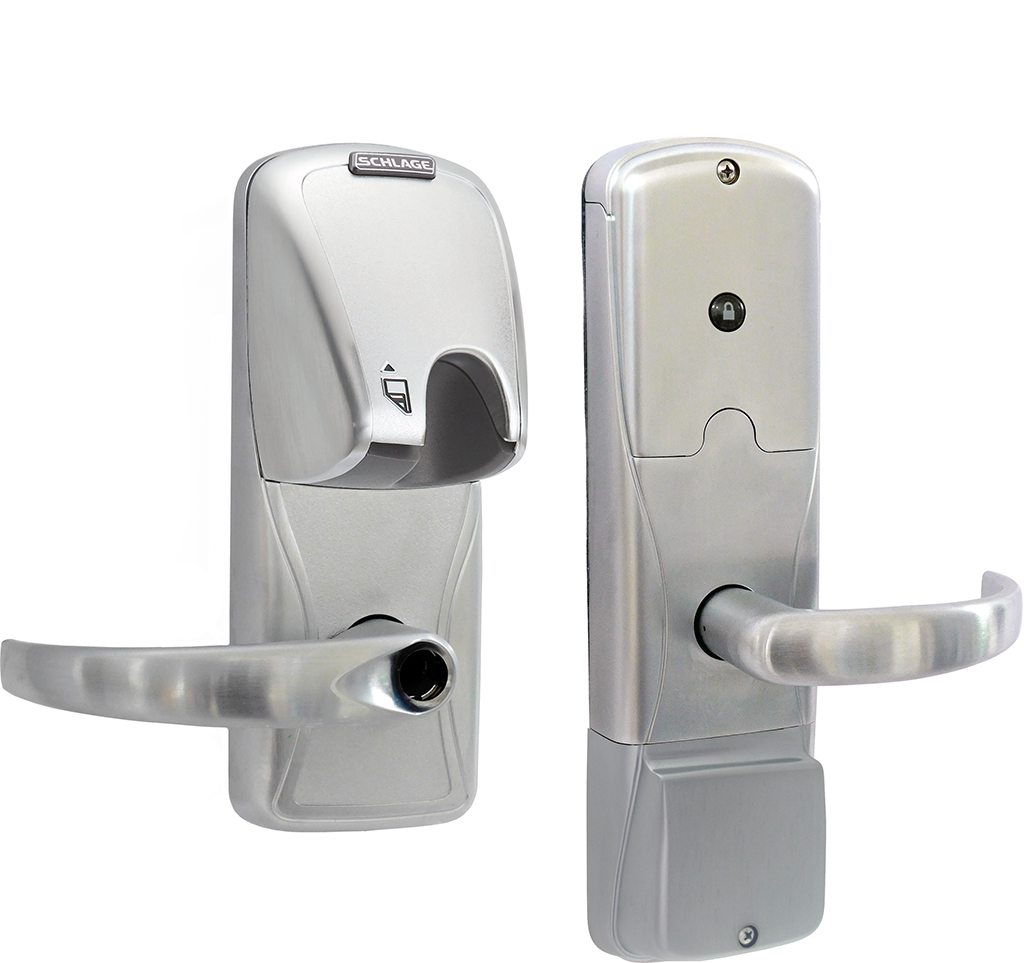

KIT - Mag-Stripe (Insert Card) Stand Alone Apartment Mortise Lock, Sparta Lever, Key in Lever, 6-Pin C Keyway (0-Bitted Brushed Chrome Cylinder 626), Satin Chrome 626

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features:

• Security that's more intelligent and convenient than traditional mechanical locking devices
• Audit trail reports that allow you to track usage and events
• Update users and access rights at the lock using the keypad or handheld device
• The ability to upgrade to a networked solution without removing the lock from the door
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems and exit devices
• Hardwired remote push button release capability
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 Electronic Lock Specifications:

• Users: Up to 5000
• Audits: Up to 5000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
• System interface: Handheld device (HHD)
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior -31° to 151°F (-35° to 66°C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 - 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
• Accessories: Handheld device (HHD)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4" standard, 1-3⁄8" to 2-3⁄4" optional (available in 1⁄8" increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4". Optional: 2-3⁄8", 3-3⁄4", 5"
• Mortise: 2-3⁄4" only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2" throw. Optional: 3⁄4" throw
• Mortise: Standard: 3⁄4" throw. Optional: 1" throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16" lip, ANSI, 1-1⁄4" x 4-7⁄8".
• Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 626 - Satin chrome
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 619 - Satin nickel
• 625 - Bright chrome
• 643e - Aged bronze
• 626AM - Satin chrome antimicrobial
