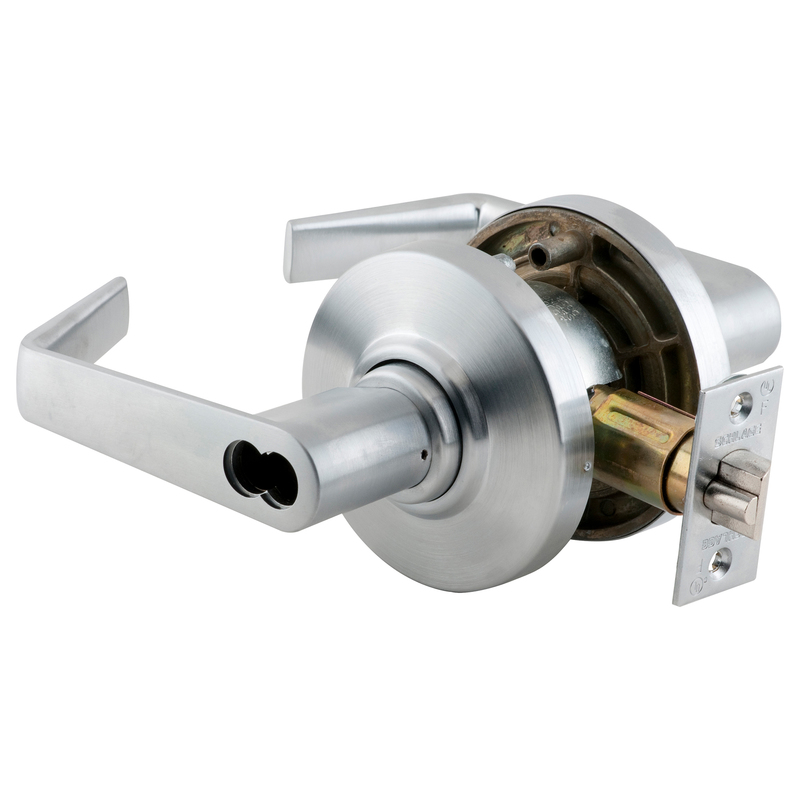

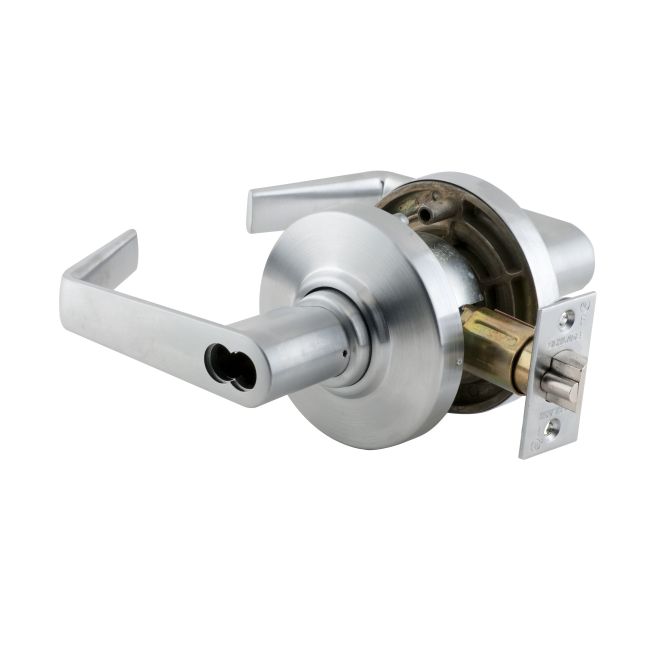

Outside lever fixed. Entrance by key only. Inside lever always unlocked
Attributes
Ship via: Can Ship UPS
Alternate Codes: 043156959792, 132540, AL80BDSAT626
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Baa Qualified: Yes
Backset: 2-3/4"
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Mexico
Cylinder Included: No
Cylinder Type: Less Cylinder, SFIC Cylinder
Cylinders Present: Single Cylinder
Design: Saturn
Door Bore Size: 2-1/8"
Door Thickness: 1-3/8 In. - 1-7/8 In.
Door Thickness Max: 1-7/8"
Door Thickness Min: 1-3/8"
Finish: Satin Chrome
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 2
Hand: Not Handed
Handing: Field Reversible
Knob/ Lever Design: Saturn
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1-1/8"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Bore Diameter: 1"
Latch Number: 11-096
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: SAT - Saturn
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Saturn
Lever Style: Angled Return Lever
Limited Warranty: 3 Years
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4" x 1-1/8"
Manufacturer Function: Storeroom
Manufacturer Function Description: Outside lever fixed, entrance by key only, inside lever always unlocked.
Maximum Door Thickness: 1-7/8"
Minimum Door Thickness: 1-3/8"
Num Pins: 6/7
Projection: 2-1/2"
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16"
Rose/ Escutcheon Size: 3-7/16"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: AL Series
Strike: ASA Strike
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 10-025
Strike Size: 2-3/4" x 1-1/8"
Strike Type: ASA
Strike Width: 1-1/4"
Structure Cylinder: B
Structure Function: 80
Structure Latch: D
Structure Latch Number: 11-096
Structure Outside Finish: 626
Structure Outside Trim: SAT
Structure Series: AL
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Supplier: Schlage
Type: LOCK SETS
Upc: 043156959792
