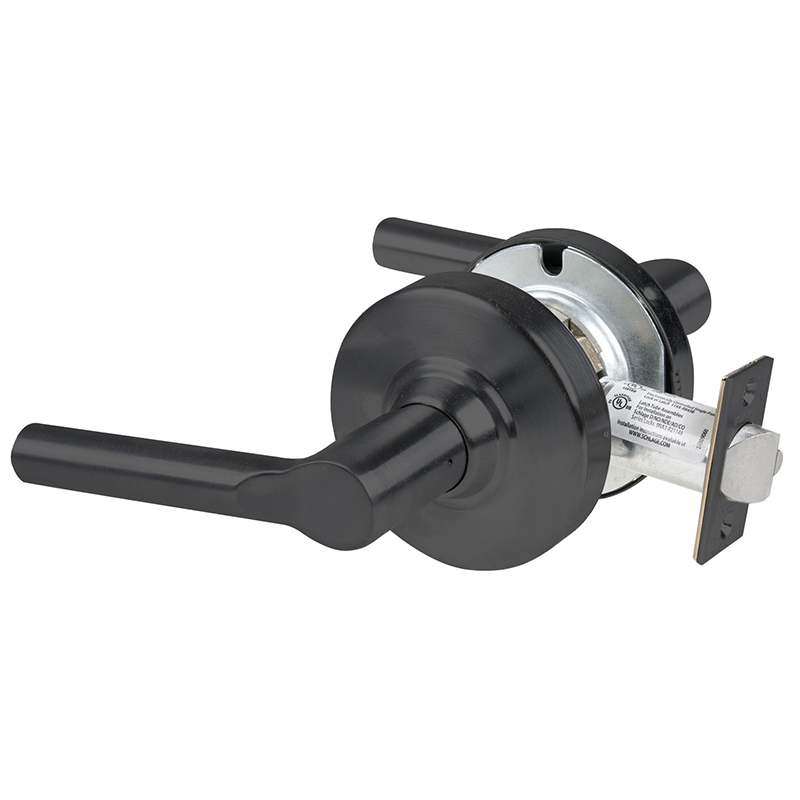

Schlage Commercial ALX10BRW622 ALX Series Grade 2 Passage Broadway Lever Lock offers a perfect blend of durability and design for various commercial applications. This passage lock features levers that are always unlocked, ensuring easy access in high-traffic areas. Constructed to meet ANSI/BHMA Certified A156.2 standards, it guarantees reliability and performance. Designed for doors ranging from 1-3/8" to 1-3/4" thick, the ALX10BRW622 accommodates a 2-3/4" backset, making it versatile for different installations. Its UL listing for a 3-hour fire door adds an essential layer of safety, ideal for commercial spaces where security is paramount. The lock includes a sleek Broadway lever design paired with a matte black finish, providing a modern aesthetic that complements any door. Further enhancing its appeal, the lock features a 2-1/8" crossbore size with two 5/16" post holes for easy installation. The robust steel and zinc dichromated materials promise longevity, backed by a limited 10-year mechanical and 3-year electro-mechanical warranty. With a Rhodes rose escutcheon design and ANSI strike, the Schlage ALX10BRW622 is an excellent choice for those seeking quality and elegance in architectural door hardware.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F75 - Passage
Ansi Function Description: Passage
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Broadway Lever
Dimension: 4-1/2" Lever with 3-1/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Finish: Matte Black
Finish Code: 622
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 10-Passage Latch
Function Family: Passage
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267038
Latch Type: Springlatch
Lever Knob: Lever
Lever Knob Design: BRW - Broadway Lever
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Broadway
Leverknob Design: BRW - Broadway Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Passage Latch
Manufacturer Function Description: No key; plain lever both sides; spring latch. Both levers always unlocked
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
PO date: 2024-10-15
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-1/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: Rhodes
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267038
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4 In.
Structure Function: 10
Structure Latch: S
Structure Latch Number: 47267038
Structure Outside Finish: 622
Structure Outside Trim: BRW
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
