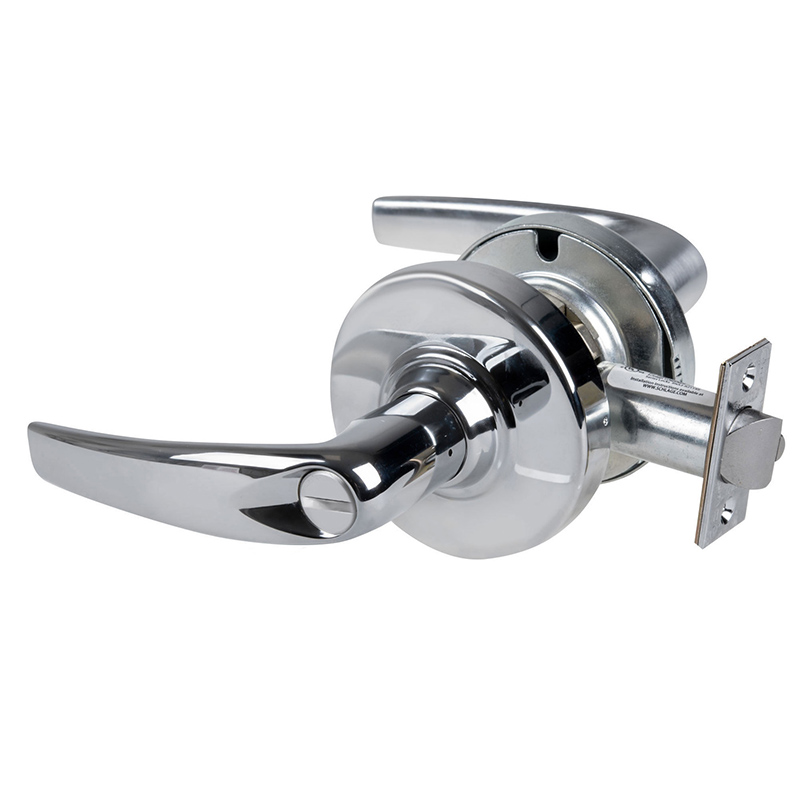

Schlage Commercial ALX40ATH625 ALX Series Grade 2 Privacy Athens Lever Lock offers a blend of security and style suitable for various commercial settings. This lockset is meticulously crafted to meet the demands of both functionality and aesthetics, featuring a bright chrome finish that adds a modern touch to any door. Designed for doors ranging from 1-3/8" to 1-3/4" in thickness, the ALX40ATH625 boasts a 2-3/4" backset and meets ANSI/BHMA certification A156.2, ensuring reliability and durability. Its UL listing for 3-hour fire doors underscores its suitability for critical applications where safety is paramount. The reversible handing makes installation straightforward, allowing for flexibility in door configuration. The Athens lever design not only enhances ease of use but also complements the Rhodes rose escutcheon, creating a cohesive look. With a latch faceplate dimension of 1-1/8" x 2-1/4", this privacy lock provides an effective barrier while allowing for passage access as needed. Schlage backs this product with a limited 10-year mechanical and 3-year electro-mechanical warranty, affirming its quality and longevity. Ideal for offices, public buildings, and other commercial spaces, the Schlage ALX40ATH625 is a trusted choice for professionals seeking dependable door hardware solutions.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F76 - Privacy
Ansi Function Description: Privacy
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Design: Athens Lever
Dimension: 4-9/16" Lever with 3-5/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Finish: Bright Chrome
Finish Code: 625
Finish Description: Bright Chrome
Finish Family: Polished Silver
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 40-Bed Bathroom Privacy Lock
Function Family: Privacy
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267038
Latch Type: Springlatch
Lever Knob: Lever
Lever Knob Design: ATH - Athens Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Bath/Bedroom Privacy Lock
Manufacturer Function Description: Push-button locking. Can be opened from outside with small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-5/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: Rhodes
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267038
Std Latch Type: Springlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4 In.
Structure Function: 40
Structure Latch: S
Structure Latch Number: 47267038
Structure Outside Finish: 625
Structure Outside Trim: ATH
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
