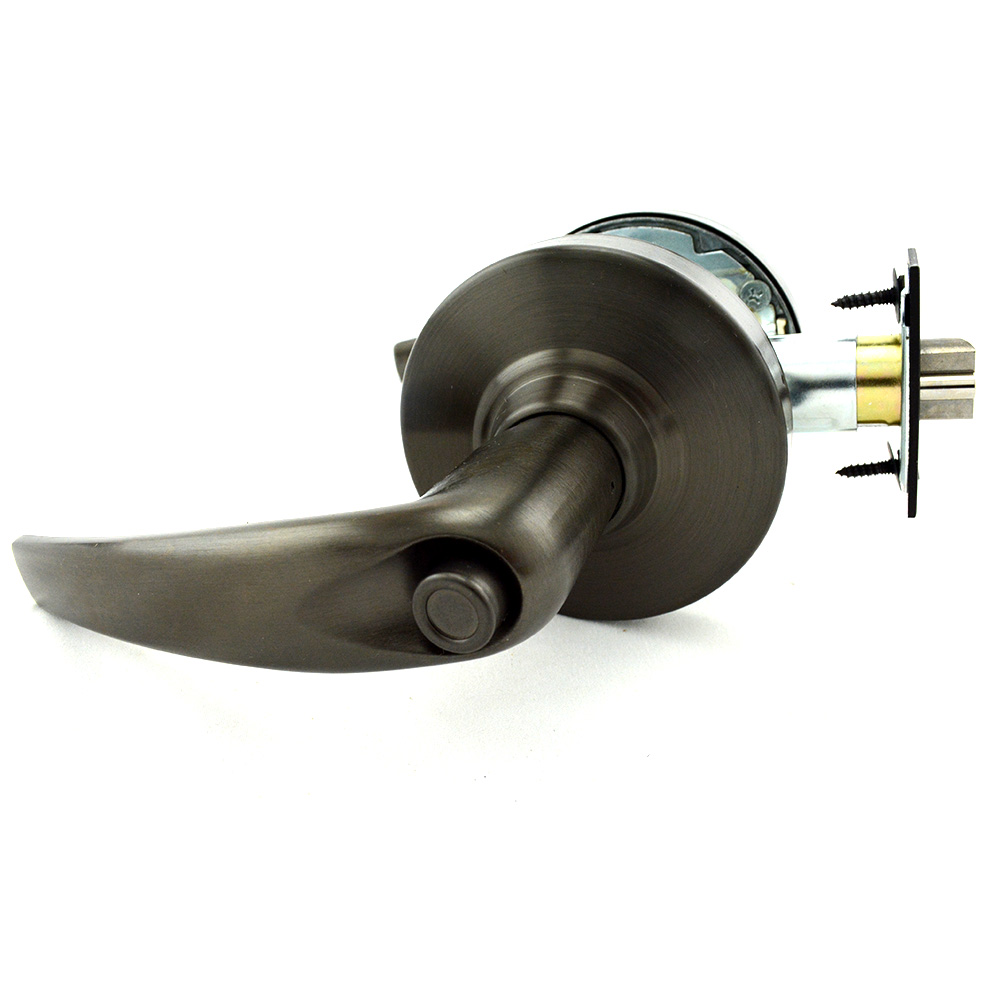

Schlage Commercial ALX50PATH613 ALX Series Grade 2 Entry Office Athens Lever Lock combines robust security with elegant design, making it ideal for various commercial applications. This entry office lock features a convenient push button on the outside lever, allowing easy access until it is unlocked with a key or by rotating the inside lever. Constructed for durability, it meets ANSI/BHMA Certified A156.2 standards and is UL Listed for 3-hour fire doors, ensuring safety without compromising style. Designed to fit doors ranging from 1-3/8" to 1-3/4" in thickness, the ALX50PATH613 has a 2-3/4" backset and includes a 47267042 deadlatch, complemented by a reliable ANSI strike. Its oil-rubbed bronze finish adds a touch of sophistication, while the Athens lever design provides a comfortable grip. The lock features a 6-pin cylinder with a C keyway for enhanced security. With dimensions of 4-9/16" lever length, 3-5/16" projection, and a 3-7/16" rose, this lockset combines functionality and aesthetics. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, the Schlage Commercial ALX50PATH613 is a trusted choice for securing your office spaces with style and confidence.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F82 - Entry
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Athens Lever
Dimension: 4-9/16" Lever with 3-5/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Oil Rubbed Bronze
Finish Code: 613
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: Entry Office
Function Family: Entrance
Grade: Grade 2
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: C Keyway
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob: Lever
Lever Knob Design: Athens Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Entrance/Office Lock
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541274
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-5/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: Rhodes Rose
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
