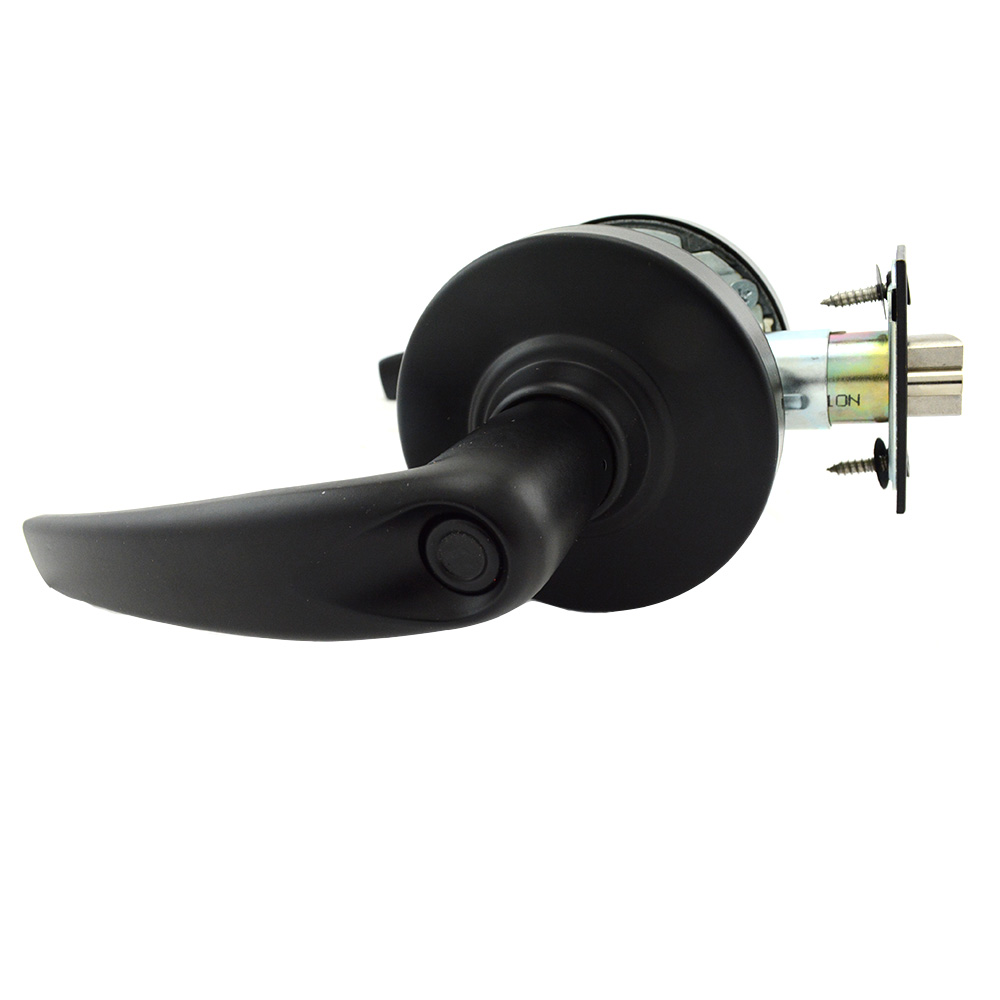

Schlage Commercial ALX50PATH622 ALX Series Grade 2 Entry Office Athens Lever Lock offers robust security and user-friendly functionality tailored for commercial environments. This entry lock features a convenient push button outside lever that unlocks with a key or by rotating the inside lever, ensuring quick access while maintaining security. With ANSI/BHMA certification A156.2, this lockset meets rigorous industry standards, making it a reliable choice for your building. Designed to fit doors ranging from 1-3/8" to 1-3/4" in thickness, the ALX50PATH622 is equipped with a durable 2-3/4" deadlatch and an ANSI strike for smooth operation. Its matte black finish not only enhances the aesthetic appeal but also offers added durability. The 4-9/16" lever provides an ergonomic grip, while the reversible handing allows for versatile installation options. This lock is UL Listed for 3-hour fire doors, ensuring safety in case of emergencies. Constructed from steel and zinc dichromated materials, it boasts a limited 10-year mechanical warranty and a 3-year electro-mechanical warranty, highlighting Schlage's commitment to quality craftsmanship. With a 6-pin C keyway and an elegant Rhodes rose design, the Schlage Commercial ALX50PATH622 combines security, style, and functionality in one exceptional package.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Manufacturer surcharge: $ 0.0
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F82 - Entry
Ansi Function Description: Entry
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8 In.
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Athens Lever
Dimension: 4-9/16" Lever with 3-5/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8 In. - 1-3/4 In.
Finish: Matte Black
Finish Code: 622
Finish Description: Flat Black Coated
Finish Family: Black
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 50-Entrance Office Lock
Function Family: Entrance
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: C Keyway
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 7/8 In.
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267042
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: ATH - Athens Lever
Lever Knob Design Family: Curved Lever
Lever Knob Design Name: Athens
Leverknob Design: ATH - Athens Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8 In. x 2-1/4 In.
Manufacturer Function: Entrance/Office Lock
Manufacturer Function Description: Push-button locking. Push-button locks outside lever until unlocked with key or by turning inside lever. Inside lever is always free for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4 In.
Minimum Door Thickness: 1-3/8 In.
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541274
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 3-5/16 In.
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: Rhodes
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Combination
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8 In.
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4 In.
Structure Cylinder: P
Structure Function: 50
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 622
Structure Outside Trim: ATH
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
