Schlage Lock Company ALX70-P-SAT-643E C123 234 KIT is a robust and versatile classroom lock designed to meet the demands of commercial applications. This Grade 2 lock features a unique, patent-pending chassis design that allows for easy in-field function setup, ensuring adaptability in varying security environments. The key-in-lever function provides convenient access, while the C123 keyway enhances security with options for high-security locking when paired with Primus XP UL 437 listed cylinders. Constructed with exceptional durability in mind, the ALX70 boasts a stainless steel latch bolt and deep-drawn spindles that prevent droop and wobble, ensuring reliable performance over time. With a backset of 2-3/4 inches and compatibility with door thicknesses ranging from 1-3/8 to 1-3/4 inches, installation is straightforward and efficient. The lever design, known as Saturn, adds a modern touch to any door, finished in an Aged Bronze (643E) that complements various decors. Additionally, this lock is fire-rated for up to 180 minutes, making it an ideal choice for safety-conscious environments. Backed by a 10-year limited warranty, the Schlage ALX70-P-SAT-643E is a trustworthy solution for those seeking quality and functionality in their security hardware.

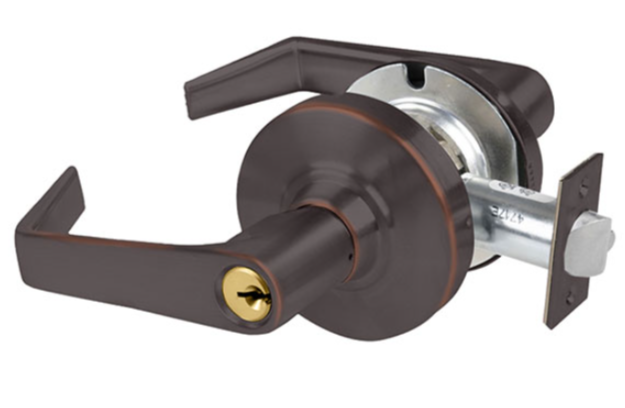

KIT - Grade 2, Classroom Saturn Lever, Key in Lever, C123 Keyway (0-Bitted Brushed Brass Cylinder 606), 2-3/4in Backset, ANSI Strike, 643E/US11 Aged Bronze

ALX Series is a grade 2 lock unlike any other. Designed to exceed expectations, it features a single, patent pending chassis design that supports most functions and all cylinder applications. As a modular lock, ALX series enables in-field function set up or exchange and a field-selectable Vandlgard feature on all locking functions. Exceptional durability comes from a stainless steel latch bolt and deep-drawn spindles with 5 points of lever engagement and grade 1 compression springs that prevent droop and wobble. Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security and functionality when and where you need it.

Features:

• Exceeds grade 2 strength: Stainless steel latchbolt.
• Expanded cylinder support:
• Accepts all Schlage plus five competitive cylinder formats.
• High security locking when used with Primus XP UL 437 listed cylinders.
• Maximum utility:
• One chassis fits all functions and cores to minimize inventory.
• Flexible purchase options: buy as factory configured, lock less levers, or as kits for on site configuration.
• Exceptional durability:
• Deep-drawn spindle with 5 points of lever engagement prevents droop and wobble.
• Grade 1 compression springs.
• Extreme installation simplicity:
• Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment.
• Captured screws in latch, strike and inside spring cage eliminate small, loose parts.
• Function flexibility:
• Patent pending chassis design allows quick, in-field function set up.
• Field reversible Vandlgard® to non-Vandlgard locked lever engagement.
• Expansive lever offering:
• 10 total designs. (Athens, Boardwalk, Broadway, Latitude, Longitude, Omega, Rhodes, Saturn, Sparta, & Tubular.)
• Perfectly suited to Schlage ND Series grade 1 locks.

Specifications:

• Chassis Material: Steel, zinc dichromated for corrosion resistance
• Chassis Door thickness: Standard: 1 3⁄8" to 1 3⁄4"
• Trim Handing: Non-handed
• Trim Levers: Pressure cast zinc, plated to match product finish specification
• Trim Rose: Wrought brass, bronze or zinc plated to match finish specification
• Backset:
• Standard: 2 3⁄4"
• Optional: 2 3⁄8", 3 3⁄4", 5"
• Faceplate:
• Standard: 1 1⁄8" x 2 1⁄4" square corners
• Optional: Multiple options with square or radius corners
• Latch:
• Standard: 7⁄8" bolt diameter, up to 1" housing diameter, 1⁄2" throw in stainless steel
• Optional: 1" bolt diameter with 1⁄2" throw, 3⁄4" anti-friction fire latch
• Strike: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16". Optional: T strike
• Keying:
• Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options designed to fit competitive cores from Sargent and Corbin Russwin.
• Keying: Standard: Everest 29 S123 patented open keyway, keyed different (KD). Optional: Classic open, Everest 29 restricted, and legacy keyways.
• Certifications: Certified A156.2-2011 series 4000, grade 2; exceeds standard for lever and spindle strength and durability
• Warranty: 10-year limited.

Lever Styles:

• ATH: Athens
• Width Dimensions: 4 9⁄16"
• Projection Dimensions: 3 5⁄16"
• BRK: Boardwalk
• Width Dimensions: 4 15⁄16"
• Projection Dimensions: 3 1⁄16"
• BRW: Broadway
• Width Dimensions: 4 1⁄2"
• Projection Dimensions: 3 1⁄16"
• LAT: Latitude
• Width Dimensions: 4 1⁄2"
• Projection Dimensions: 3 1⁄8"
• LON: Longitude
• Width Dimensions: 4 15⁄16"
• Projection Dimensions: 3 1⁄8"
• OME: Omega
• Width Dimensions: 5 1⁄16"
• Projection Dimensions: 3 5⁄16"
• RHO: Rhodes
• Width Dimensions: 4 9⁄16"
• Projection Dimensions: 2 15⁄16"
• SAT: Saturn
• Width Dimensions: 4 7⁄16"
• Projection Dimensions: 2 15⁄16"
• SPA: Sparta
• Width Dimensions: 4 15⁄16"
• Projection Dimensions: 3 1⁄2"
• TLR: Tubular
• Width Dimensions: 4 15⁄16"
• Projection Dimensions: 3"
• Rose: Standard. Diameter - 3 7⁄16"

Non-Keyed Functions:

• ALX10: Passage latch
• ANSI F75
• No key; plain lever both sides; spring latch
• Both levers always unlocked
• ALX40/ALXV40: Bath/bedroom privacy lock
• ANSI F76
• No key; emergency access coin turn outside; push button inside; spring latch
• Inside push button locks outside lever
• Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access
• Field selectable Vandlgard® feature
• Inside lever is always free for immediate egress
• ALX44/ALXV44: Hospital privacy lock
• No key; emergency turn-button outside; push button inside; spring latch
• Inside push button locks outside lever
• Turn inside lever or close door to release button and prevent lock-out; outside turn button provides emergency access
• Field selectable Vandlgard® feature
• Inside lever is always free for immediate egress
• ALX170: Single dummy trim
• No key; rigid plain lever outside; no hardware inside; no latchbolt
• Use as door pull or matching inactive trim
• Note: Not available for in-field function changes.
• ALX172: Double dummy trim
• No key; rigid, plain lever both sides; no latch
• Use as door pull or matching inactive trim
• Notes: Latch cover available. Not available for in-field function changes.

Single Cylinder Deadbolt Functions:

• ALX50/ALXV50: Entrance/office lock
• ANSI F82
• Key cylinder outside; push button inside; deadlatch
• Inside push button locks outside lever
• Unlock with key outside or by rotating inside lever
• Field selectable Vandlgard feature
• Inside lever always free for immediate egress
• ALX53/ALXV53: Entrance lock
• ANSI F109
• Key cylinder outside; push/turn button inside; deadlatch
• Inside button locks outside lever by pushing button or pushing and turning button
• Pushed button: unlock with key outside or by rotating inside lever
• Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
• Field selectable Vandlgard feature
• Inside lever always free for immediate egress
• ALX70/ALXV70: Classroom lock
• ANSI F84
• Key cylinder outside; plain lever inside; deadlatch
• Key in outside lever locks or unlocks outside lever
• Field selectable Vandlgard® feature
• Inside lever always free for immediate egress
• ALX80/ALXV86: Storeroom lock
• ANSI F86
• Key cylinder outside; plain lever inside; deadlatch
• Outside lever always fixed
• Key can retract the latch
• Field selectable Vandlgard feature
• Inside lever always free for immediate egress

Conventional Cylinder:

• P6: 6-pin Conventional (standard)
• Z: SL 7-pin Conventional (A2 pinning)
• L: Less Conventional cylinder
• L-C06: Less cylinder, made to fit Corbin 2000-033
• L-SAR: Less cylinder, made to fit Sargent C11-1, C10-1

Full Size Interchangeable Core (FSIC):

• R: 6-pin FSIC (full size)
• M: SL 7-pin FSIC (A2 pinning)
• J: Less FSIC
• J-C06: Less FSIC, made to fit Corbin 8000
• J-C07: Less FSIC, made to fit Corbin 8000-7
• J-SAR: Less FSIC, made to fit Sargent 6300
• T: Refundable construction FSIC

Small Format Interchangeable Core (SFIC):

• G7: 7-pin SFIC (slide capping)
• B: Less SFIC
• BDC: Disposable construction SFIC
• H: Refundable construction SFIC

Finishes:

• 605/US3 - Bright brass
• 606/US4 - Satin brass
• 612/US10 - Satin bronze
• 613/US10B - Oil rubbed bronze
• 619/US15 - Satin nickel
• 622/US19 - Matte black
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 643e - Aged bronze
