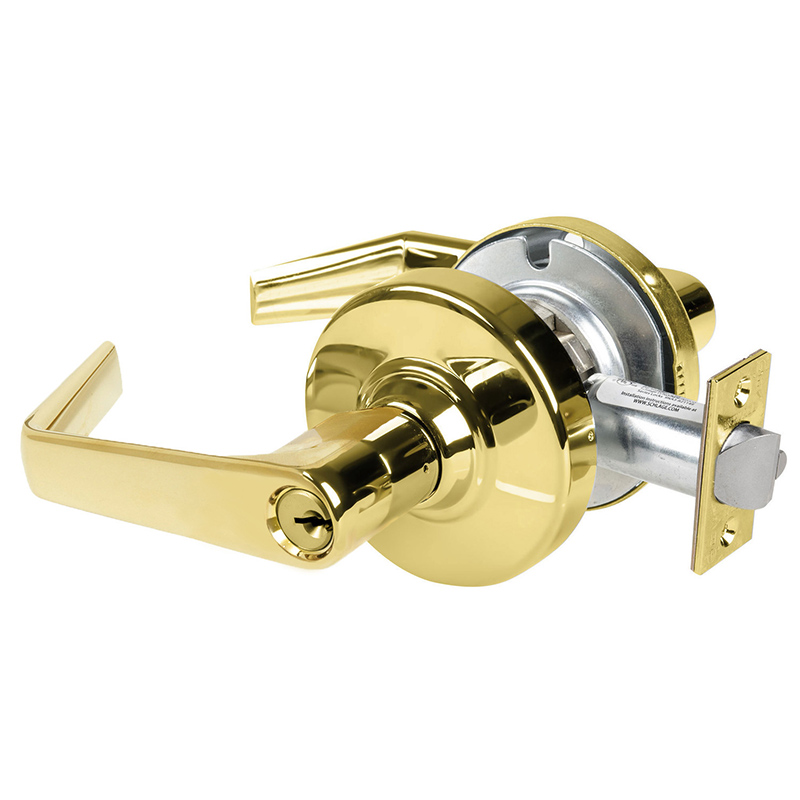

Schlage Commercial ALX80PSAT605 ALX Series Grade 2 Storeroom Saturn Lever Lock offers a robust solution for securing storerooms with style and reliability. Designed with a fixed outside lever and key-only entrance, this lock ensures that the inside lever remains always unlocked, allowing for easy access from within while maintaining security from the outside. Constructed to meet ANSI/BHMA Certified A156.2 standards, this Grade 2 lockset is suitable for doors ranging from 1-3/8" to 1-3/4" thick. Its durable 2-3/4" deadlatch and ANSI strike provide additional strength, while the UL listing for 3-hour fire doors ensures compliance with safety regulations. The Saturn lever design enhances both functionality and aesthetics, complemented by a bright brass finish that adds a touch of elegance. With a 6-pin cylinder featuring a C keyway, you can rest assured that your storeroom is secure. This lockset also features a reversible handing, making it versatile for various installation needs. Backed by a limited 10-year mechanical and 3-year electro-mechanical warranty, Schlage stands behind the quality and longevity of this product. The ALX80PSAT605 lockset is the perfect choice for those seeking reliable security solutions in commercial settings.
For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2-2011 Series 4000, Grade 2
Ansi Function: F86 - Storeroom
Ansi Function Description: Storeroom
Backset: 2-3/4" Backset
Bolt Projection: 1/2 In.
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-1/2 In.
Box Height Fraction: 4-3/4 In.
Box Width Fraction: 8-1/4 In.
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Crossbore Size: 2-1/8" Bore with Two 5/16" Post Holes
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Design: Saturn Lever
Dimension: 4-7/16" Lever with 2-15/16" Projection and 3-7/16" Rose
Door Range: 1-3/8" to 1-3/4"
Door Thickness: 1-3/8" to 1-3/4"
Finish: Bright Brass
Finish Code: 605
Finish Description: Bright Brass
Finish Family: Polished Brass
Fire Rated: Yes {Variable}
Fire Rating: 3 Hours {A}
Function: 80-Storeroom Lock
Function Family: Storeroom
Grade: Grade 2
Hand: Non-handed
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Keys: Cut
Keyway: C Keyway
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 7/8"
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Latch Number: 47267042
Latch Type: Deadlatch
Lever Knob: Lever
Lever Knob Design: SAT - Saturn Lever
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Saturn
Leverknob Design: SAT - Saturn Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Storeroom Lock
Manufacturer Function Description: Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress.
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Steel, Zinc Dichromated
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Num Of Keys: 2
Num Pins: 6
Of Keys: 2
Order_ Qty: 1
Origin: Mexico
Pack Height: 4.75"
Pack Length: 9.5"
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Width: 8.25"
Pbs Options: 4541274
Pins: 6
Product Height: 4.5"
Product Length: 9.25"
Product Width: 8.13"
Projection: 2-15/16"
Restrictions: None
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16" Rose Diameter
Rose Escutcheon Dimensions: 3-7/16"
Roseescutcheon Design: 3-7/16" Rose Diameter
Roseescutcheon Dimensions: Rhodes
Screws: Wood/Metal Screws
Series: ALX Series
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 47267042
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: 47267101
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4"
Strike: ANSI Strike
Strike Dimension: 4-7/8" with 1-1/4" Lip
Strike Dimensions: 1-1/4" x 4-7/8"
Strike Height: 4-7/8"
Strike Number: 47267101
Strike Type: ANSI Strike
Strike Width: 1-1/4"
Structure Cylinder: P
Structure Function: 80
Structure Latch: D
Structure Latch Number: 47267042
Structure Outside Finish: 605
Structure Outside Trim: SAT
Structure Series: ALX
Structure Strike Number: 47267101
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL
Ul Listing Type: UL Listed for 3 Hour Fire Door
Unit of Measure: Each
