Manufacturer surcharge: 3.5%
Ansi: A156.13-2017 Series 1000, Grade 1 Operational and Security
Baa Qualified: Yes
Burglar Rated: No
Cam Number: L583-474
Cam Type: Schlage L
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Length: 1-1/8"
Cylinder Type: Non-Keyed

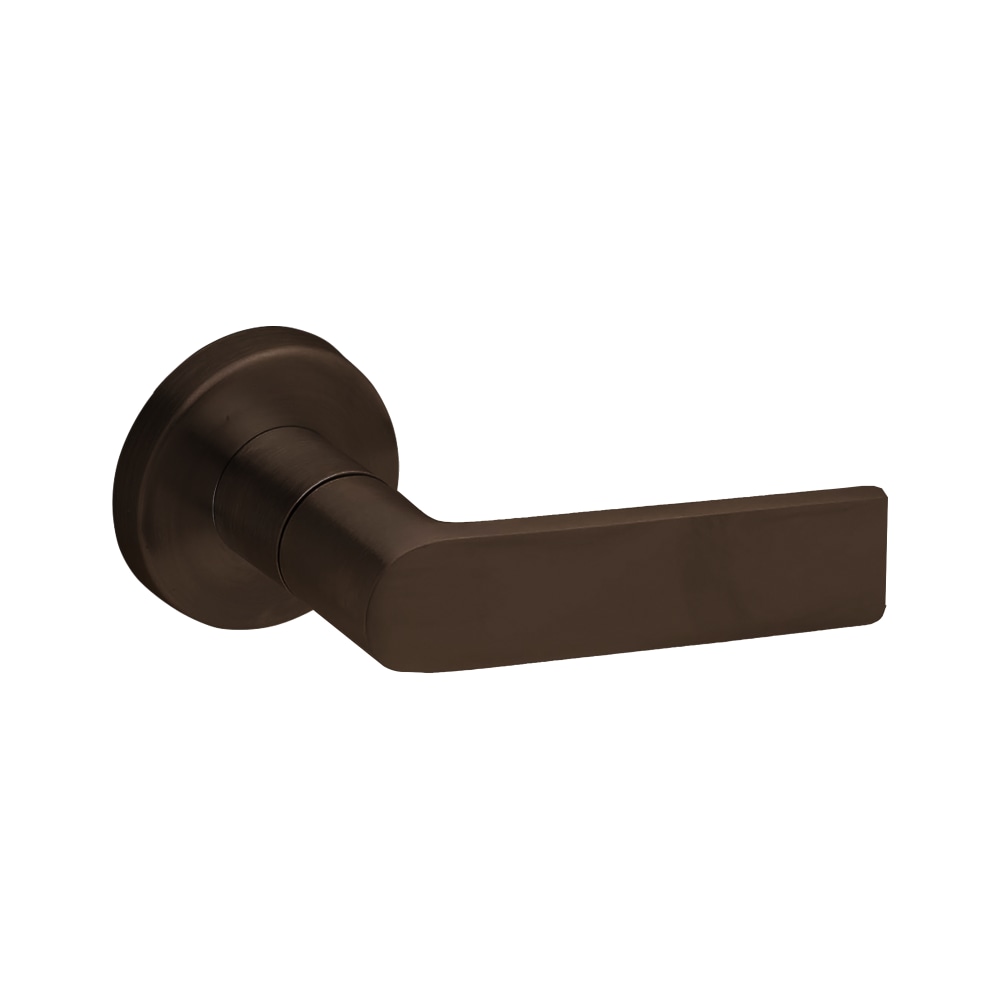

Design: 01 Lever and A Rose
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: Oil Rubbed Bronze
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Finish Family: Dark Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 0170-Half Dummy Trim
Function Family: Dummy
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Leverknob Design: 01 Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 3 Years
Origin: Mexico
Pack Height: 5.5"
Pack Length: 10.25"
Pack Qty: 1
Pack Volume: 295.97 in³
Pack Width: 5.25"
Projection: 2-11/16"
Rose Number: 09-403 A 613
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8" Diameter, 13/32" Projection
Screws: Combination
Series: L Series
Ship Weight: 4 lbs.
Subtype: Mortise
Type: Mechanical Commercial Locksets
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
