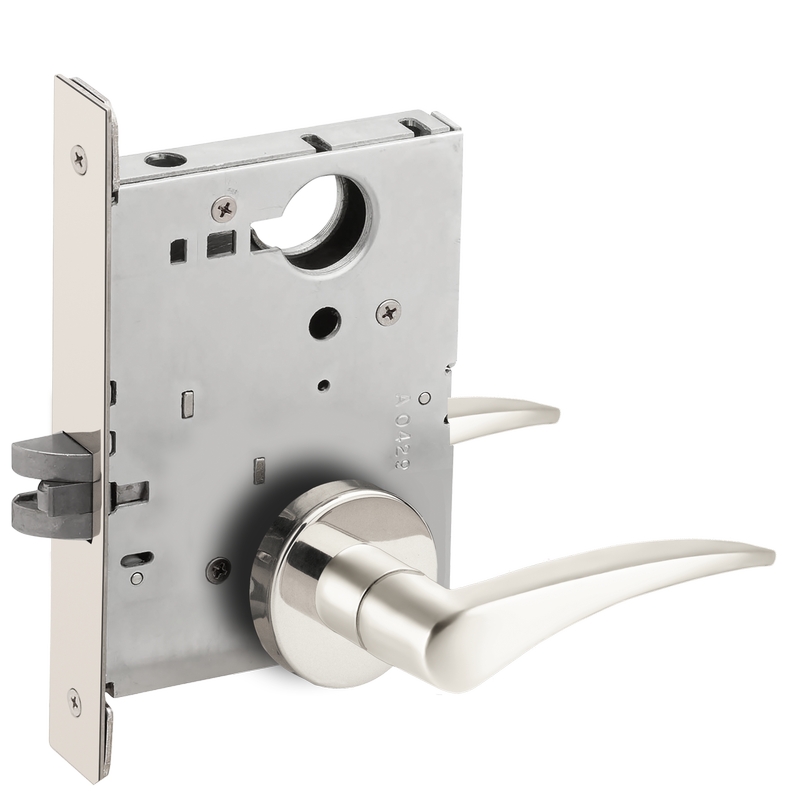

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Attributes
Manufacturer surcharge: 3.5%
Ansi: A156.13-2017 Series 1000, Grade 1
Ansi Function: F01 - Passage
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Projection: 3/4" Latch
Bolt Protection: 3/4"
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Design: 12 Lever and A Rose
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 625/US26
Finish Description: Bright Chrome
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 9010-Passage Latch
Grade: Grade 1
Hand: RH
Handing: Right-Handed
Installation: Commercial
Latch Bore Diameter: 2-3/4"
Lever Knob Design: 12 - Lever
Leverknob Design: 12 Lever
Leverknob Design Family: Straight Lever
Limited Warranty: 3 Years
Lock Face Size: 8" x 1-1/4"
Origin: Mexico
Pack Height: 5.63"
Pack Height 2: 5.63"
Pack Length: 10.38"
Pack Length 2: 10.38"
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38"
Pack Width 2: 5.38"
Projection: 3.063"
Rose Escutcheon Design: A - Rose
Roseescutcheon Design: A Rose
Roseescutcheon Dimensions: 2-1/8"
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 10-072 1316 625
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16"
Strike: 10-072 Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: CASE
Unit of Measure 2 Qty: 6
