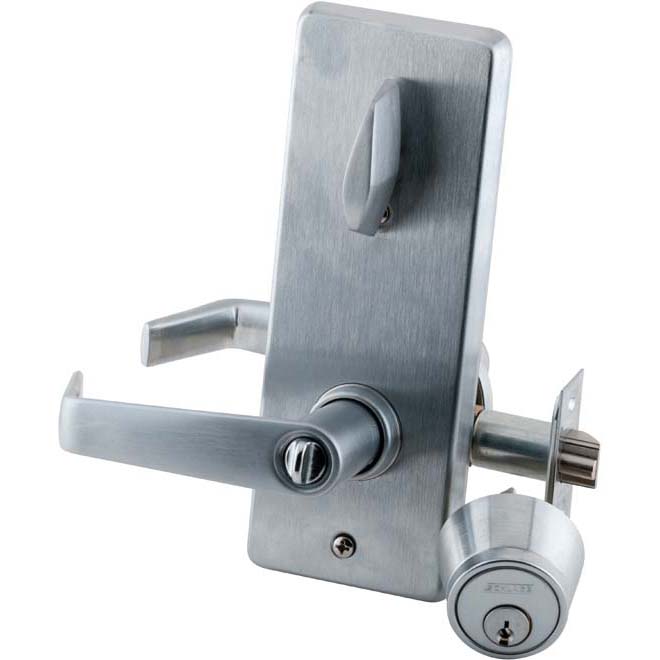

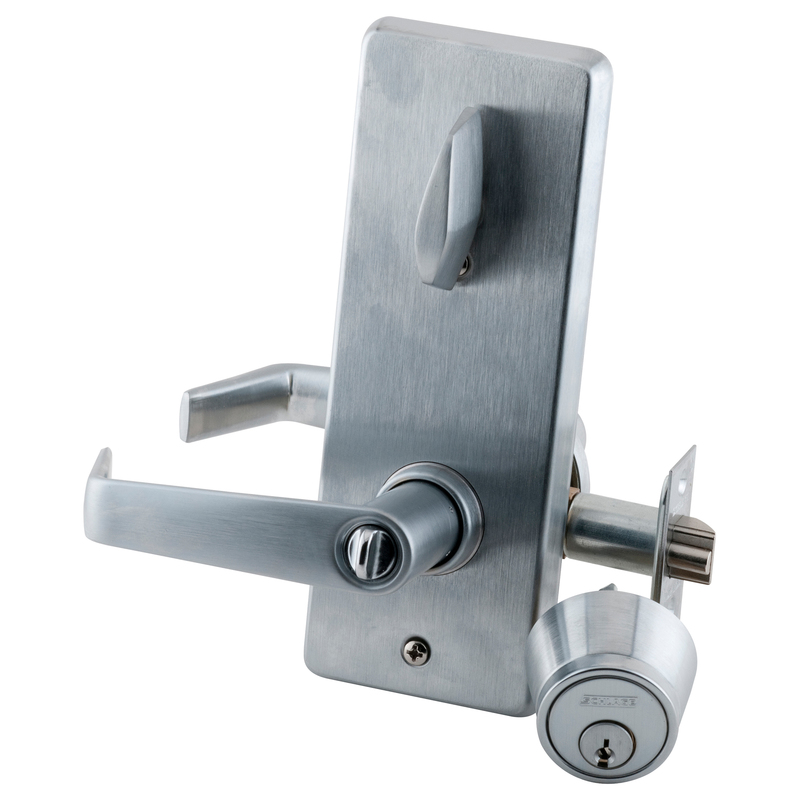

Deadbolt operated by key from outside or by turn unit from inside. Outside lever unlocked by key from outside when locked by turn button in inside lever. Turning inside lever retracts deadbolt and latch simultaneously for immediate exit.
Attributes
Ship via: Can Ship UPS
Alternate Codes: 134909, S251PDSAT626
Ansi Function: F97 - Interconnected Entrance Double
Backset: 2-3/4"
Bolt Protection: 1/2 In. Latch, 1 In. Bolt
Cylinder Included: Yes
Cylinder Type: 6-Pin Cylinder
Design: Saturn
Door Bore Size: 2-1/8"
Door Thickness: 1-3/4 in.
Door Thickness Min: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Function: 251-Entrance Double Locking
Grade: Grade 2
Handing: Non-Handed
Keyway: S123
Knob/ Lever Design: Saturn
Knob/ Lever Style: Lever
Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4" x 1"
Latch Bolt Throw: 1/2"
Latch Bolt Type: Deadlatch
Latch Number: 16-481
Latch Type: Combination Dead Latch and Bolt
Lever Knob Design: SAT - Saturn
Lock Category: Cylindrical Lock
Lock Face Size: 2-1/4 In. x 1 In.
Num Pins: 6
Rose/ Escutcheon Size: 2-1/2"
Rose/ Escutcheon Style: Rose
Series: S Series
Strike: Square Corner Strikes
Strike Height: 2-3/4 In.
Strike Number: 10-094 & 10-001
Strike Size: 2-3/4" x 1-1/8"
Strike Type: T-Square Corner
Strike Width: 1-1/8 In.
Subtype: Interconnected Locks
Supplier: Schlage
Type: LOCK SETS
