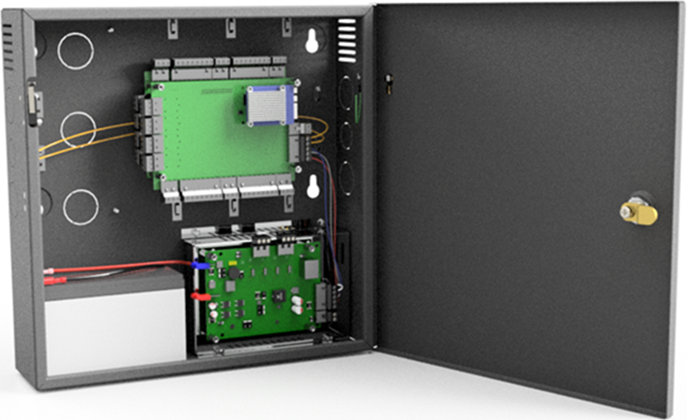

Sicunet Inc. CORP-2DM 2 Door System provides a robust solution for effective access control in various settings. Each module is versatile, functioning as a server, expansion panel, or elevator, making it ideal for diverse installations. This system is ready to use right out of the box and can be managed through a browser interface, simplifying setup and operation. Powered by a quad-core Cortex processor running at 1.5 GHz, the CORP-2DM ensures efficient processing with a capacity for over 45 transactions per second. It features 2 readers for in-and-out access, 2 relays for lock and auxiliary functions, and 3 global inputs (REX, DPS, Aux) to enhance security monitoring. The embedded Linux operating system guarantees reliability and performance. With a UL listing under the 294 series 7, this system meets rigorous safety standards. The enclosure measures 14.25 x 14.25 x 3.75 inches, and it operates effectively in temperatures ranging from 50°F to 95°F. A 5-year hardware warranty provides peace of mind, while battery backup options ensure continuous operation during power interruptions. For professionals seeking a dependable access control system, the Sicunet Inc. CORP-2DM 2 Door System represents a high-quality choice that combines functionality with advanced technology.

2 Door System

Features:

• Each module functions as a server, expansion panel or elevator
• Out of the box ready browser managed
• Embedded Linux operating system
• 2 Readers (in/out)
• 2 Relays (lock/aux)
• 3 Inputs (REX, DPS, Aux) global
• UL Listed - 294 series 7
• 5 year hardware warranty

Specifications:

• Model: 2DM
• Processor: Quad core cortex, 1.5 GHz
• Memory: 1GB DDR3 & 8GB eMMc
• Operating System: Embedded Linux
• Transactions: > 45 per second
• System Power Requirements: 115VAC @ 1.5A
• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Enclosure Size (W x H x D): 14.25 x 14.25 x 3.75in (362 x 362 x 95mm)
• Internal Power Supply: Controller and readers only
• Battery Backup: Controllers and readers only
• Recommended Battery Type (battery is not included): 12V, 7AH, sealed lead acid with 0.187 inch terminals
• Standby Power Requirement: 400mA @ 12V
• Readers (Wiegand): 4 Total, one in and one out reader for each door
• Reader Power: 300mA @ 12V max per reader 1000mA @ 12V max per system
• Request to Exit (REX) Inputs: 2 Total, one for each door
• Door Position (status) Inputs: 2 Total, one for each door
• Auxiliary Input: 2 Total, general purpose
• Tamper Digital Input: Yes
• Power Fault Digital Input: Yes
• Door Lock Outputs: 2 Form C relay, 24V @ 2.0A
• Auxiliary Outputs: 2 Form C relay, 24V @ 2.0A
