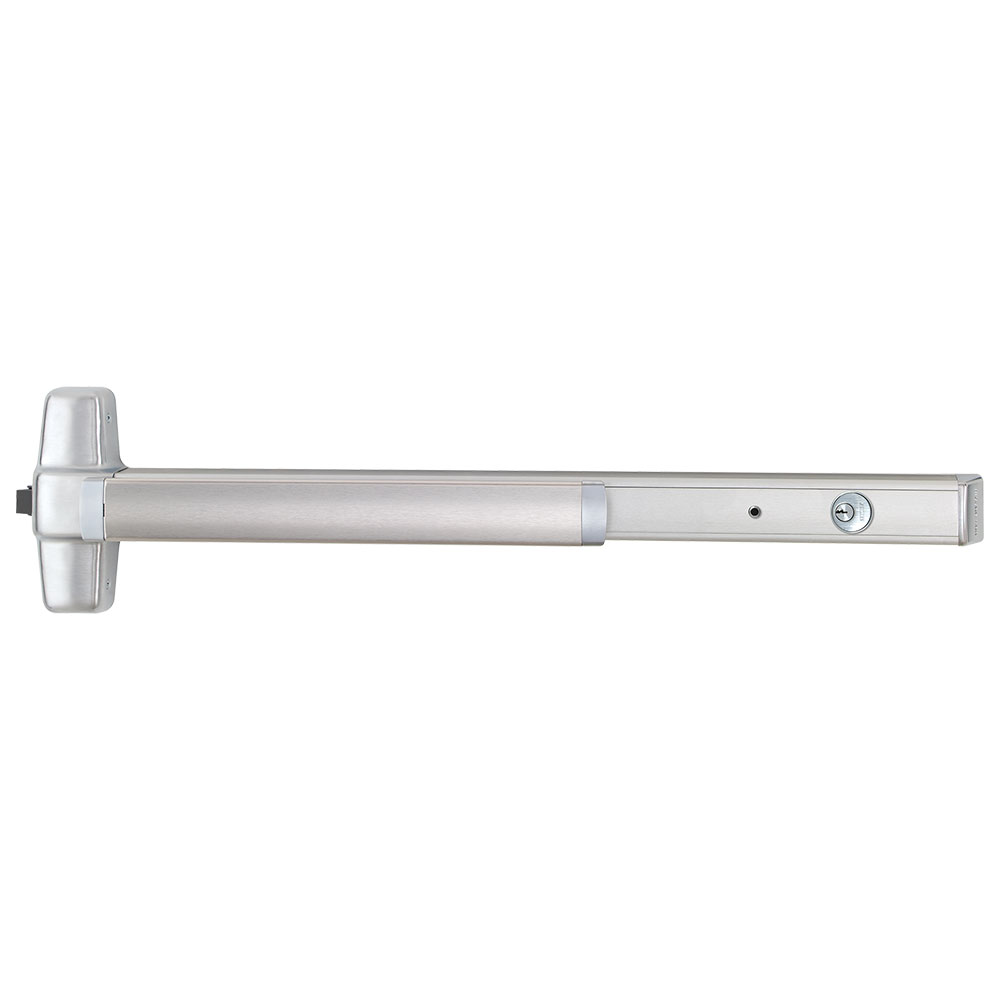

Von Duprin CXA98L-17 3 26D LHR Grade 1 Rim Exit Device 626 delivers an exceptional balance of security and functionality, ideal for commercial environments such as schools, hospitals, and government buildings. This Grade 1 Delayed Egress Exit Device features a robust 36-inch rim design, ensuring reliable performance for both single and double doors equipped with a mullion. Its satin chrome finish not only enhances aesthetics but also provides durability. Designed for ease of use, the device operates with a heavy-duty push pad and boasts ANSI A156.3 2008 Grade 1 certification, guaranteeing compliance with the highest industry standards. The 17 lever trim with an escutcheon offers a sophisticated touch, while the less dogging mechanism streamlines operation. With a deadlocking latch bolt featuring a 3/4-inch throw, this device ensures secure closure. The CXA98L-17 is field selectable for device functions, accommodating varying installation needs. Suitable for doors ranging from 1-3/4 inches to 2-1/4 inches in thickness, it supports door widths from 28 inches to 36 inches. For added convenience, the device includes a comprehensive screw pack for installation and is UL listed for panic exit hardware. Enhance your security framework with the reliable performance of the Von Duprin CXA98L-17.
Grade 1 Rim Exit Device 626
Grade 1 Delayed Egress Exit Device, 36", Classroom, Less Dogging, Delayed Egress, 17 Lever, 1-1/4" Mortise & Rim, Satin Chrome Finish, Left-Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4" Mortise & Rim
Device Length: 36"
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Electric Options: Delayed Egress
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left-Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Classroom
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 98 Series Rim Exit Device
Strike Standard: 299
Subtype: Delayed Egress Exit Devices
Trim Design: Lever with Escutcheon
Trim Part No: 996L-R/V
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
