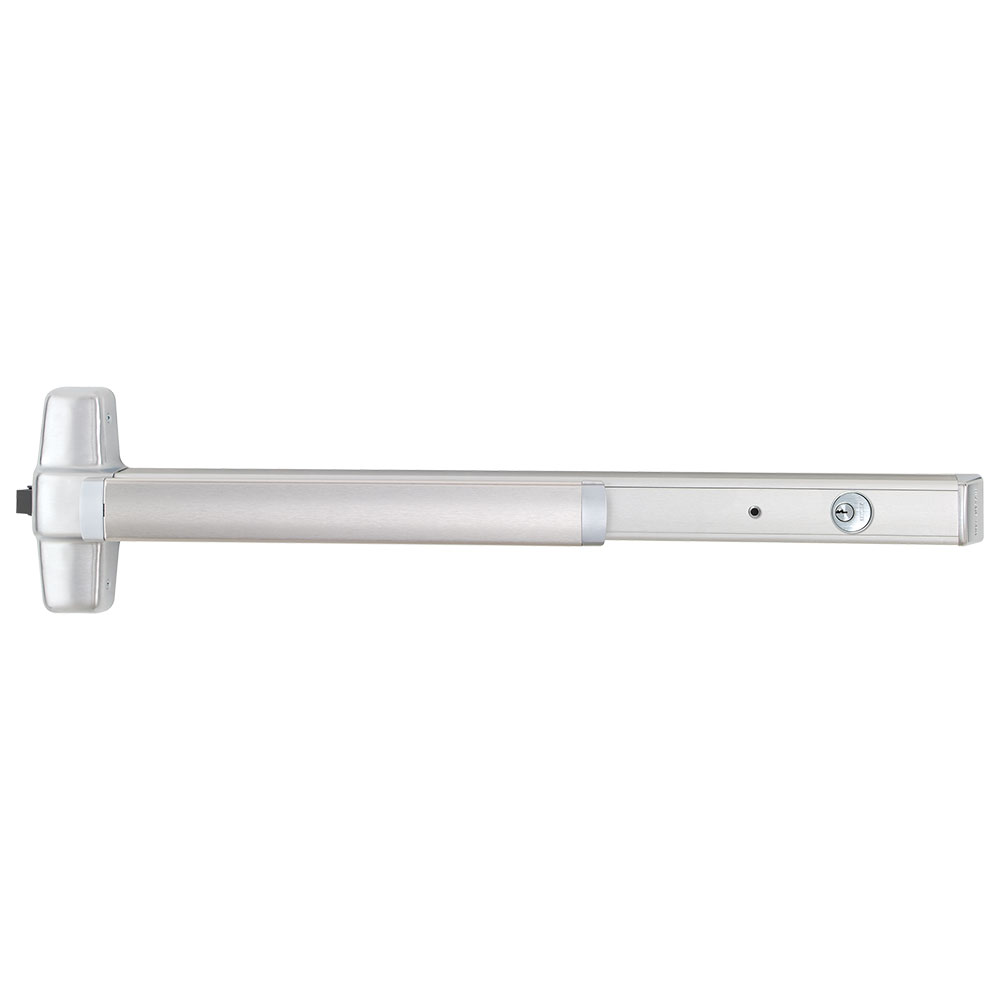

Von Duprin CXA98L-BE-06 3 32D LHR Grade 1 Rim Exit Device 630 offers a robust solution for emergency egress needs, designed specifically for high-traffic environments such as schools, hospitals, and government facilities. This Grade 1 delayed egress exit device features a 36-inch length and operates with a classroom function, ensuring security while allowing for safe exits. Its satin stainless steel finish not only enhances durability but also provides a sleek, modern appearance. Engineered for reliability, the CXA98L-BE-06 includes a deadlocking latch bolt with a 3/4-inch throw, ensuring secure closure against unauthorized access. The device is UL listed for panic exit hardware and adheres to ANSI A156.3 – 2008 Grade 1 standards, confirming its high performance and safety compliance. Versatile installation options accommodate door sizes ranging from 28 to 36 inches wide, with compatibility for wood or metal doors. The device features a left-hand reverse handing and is available with customizable functions, making it adaptable to various building requirements. With a 1-year limited warranty, you can trust the durability and functionality of the Von Duprin CXA98L-BE-06 for your exit hardware solutions.
Grade 1 Rim Exit Device 630
Grade 1 Delayed Egress Exit Device, 36", Classroom, Less Dogging, Delayed Egress, 06 Lever with Blank Escutcheon, 1-1/4" Mortise & Rim, Satin Stainless Steel Finish, Left-Hand Reverse
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1
Heavy-duty high-performance exit devices with many customizable options.
Von Duprin's 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.
Specifications:
Accessible: No
Ada Compliance: No
Ansi: A156.3 2014
Baa Qualified: Yes
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: 1-1/4" Mortise & Rim
Device Length: 36"
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Wood or Metal
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 28" to 36"
Electric Options: Delayed Egress
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left-Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Classroom
Minimum Stile Size: 4-1/2"
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 98 Series Rim Exit Device
Strike Standard: 299
Subtype: Delayed Egress Exit Devices
Trim Design: Lever with Blank Escutcheon
Trim Part No: 996L-BE-R/V
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
