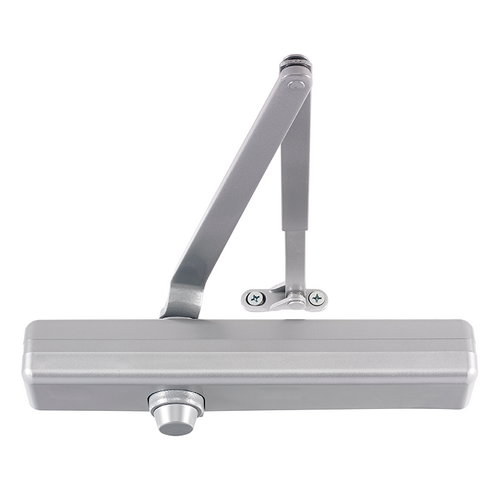

LCN 4040XPRWPAGLBLK Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Regular Door Closer with TBSRT Thru Bolts showcases exceptional performance in high-traffic environments. Designed for rugged applications, this door closer is ideal for facilities such as schools, hospitals, and government buildings, where reliability is paramount. The LCN Green Dial simplifies spring power adjustments, taking the guesswork out of the setup process. Crafted from solid forged steel, the main arm and forearm provide durability, while the spring-loaded stop in the soffit shoe ensures smooth operation. This model is adjustable for interior doors up to 5 feet and exterior doors up to 4 feet, making it versatile for various entryways. With a sleek black finish (693), it complements a range of architectural styles, and the surface-mounted design allows for easy installation. Measuring 12-1/4" x 2-1/4" x 3-1/2", the LCN 4040XP Series closer is built to last, backed by a limited 30-year warranty, ensuring long-term peace of mind. UL 10C rated, this door closer meets stringent safety standards, making it a trusted choice for any facility focused on security and performance.

Parallel Arm Super Smoothee Heavy Duty Adjustable 1-6 Surface Mounted Regular Door Closer with TBSRT Thru Bolts 693 Black Finish

LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.

• Stop in the Soffit Shoe
• Solid Forged Steel Main Arm and Forearm with Spring Loaded Stop in Soffit Shoe
• For Rugged, High Traffic Applications
• LCN Green Dial to take the guesswork out of spring power adjustments
• Adjustable to 5' for Interior Doors and to 4' for Exterior Doors
• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA
• Fluid: All weather liquid X fluid
• Non-handed
• Templating: Peel-n-Stick templates - 2 1⁄4" x 5" mounting hole pattern
• Adjustable spring size 1-6, includes patented green dial
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)
• Fasteners: Self reaming and tapping screws (SRT)
• Body Construction:
• Cast iron body
• Full Complement Bearing
• 1 1⁄2" diameter piston
• Double heat treated pinion journal
• Cover:
• Plastic, standard
• Metal, optional
