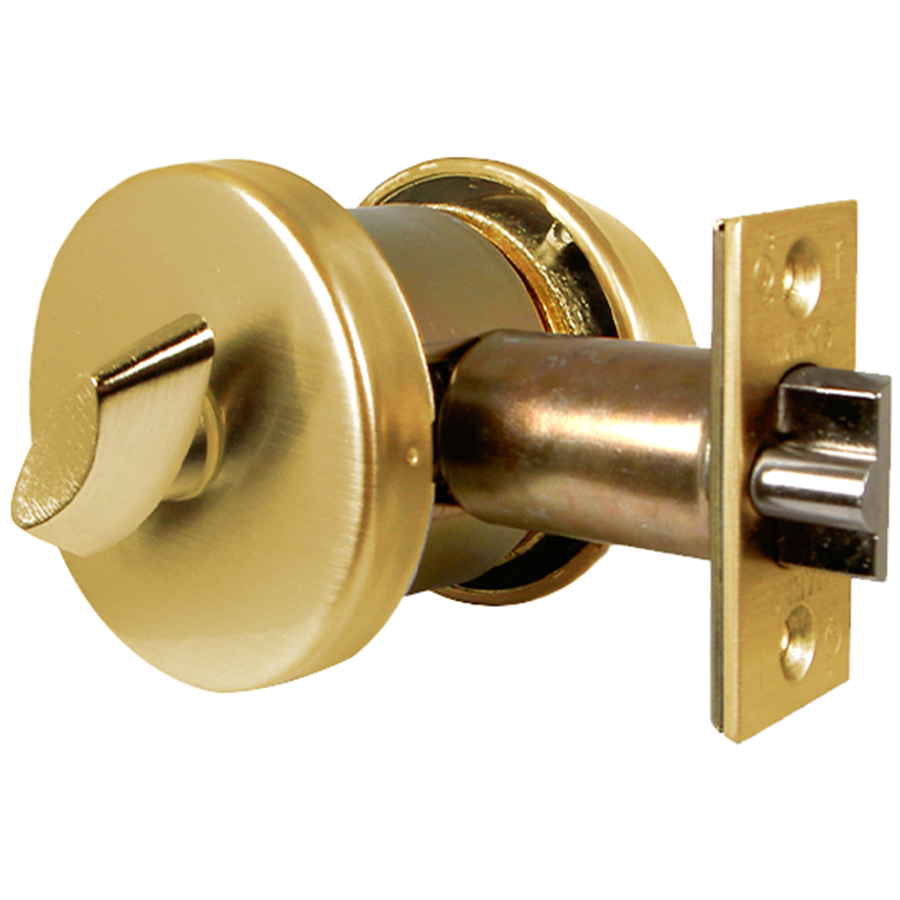

Marks Hardware 145K/3-E11 Marks C Keyway Single Cylinder Gate Lock, 6 Pin, 2-3/8in Backset, Bright Brass

Marks Hardware 145K/3-E11 Gate Lock Single Cylinder combines robust security with exceptional functionality, making it an ideal choice for both residential and commercial applications. This Grade 1 deadlatch and deadbolt system is designed to provide superior protection, featuring a Marks C keyway with a 6-pin configuration for enhanced key control. With a backset of 2-3/8 inches and a throw of 1 inch, the lock ensures a secure fit for doors with a thickness of 1-3/4 inches. The 2-3/4-inch strike plate further supports its durability, complete with a dust box for added protection against the elements. The steel shutter system prevents access to mounting screws when the door is locked, enhancing security against tampering. Designed for versatility, it accepts various high-security cylinders, including Medeco and Multilock, making it adaptable to different security needs. The tapered cylinder collar is engineered to thwart break-in attempts, while the unitized assembly simplifies installation with a standard 2-1/8 inch bore. Finished in bright brass, the Marks Hardware 145K/3-E11 not only offers an aesthetically pleasing appearance but also meets the ANSI and UL certification standards for fire safety. Choose this reliable gate lock for enhanced peace of mind and long-lasting security.

Gate Lock Single Cylinder, Marks C Keyway, 6 Pin, 2-3/8in Backset, 605/US3 Bright Brass

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome

Resources

• Cut Sheet
